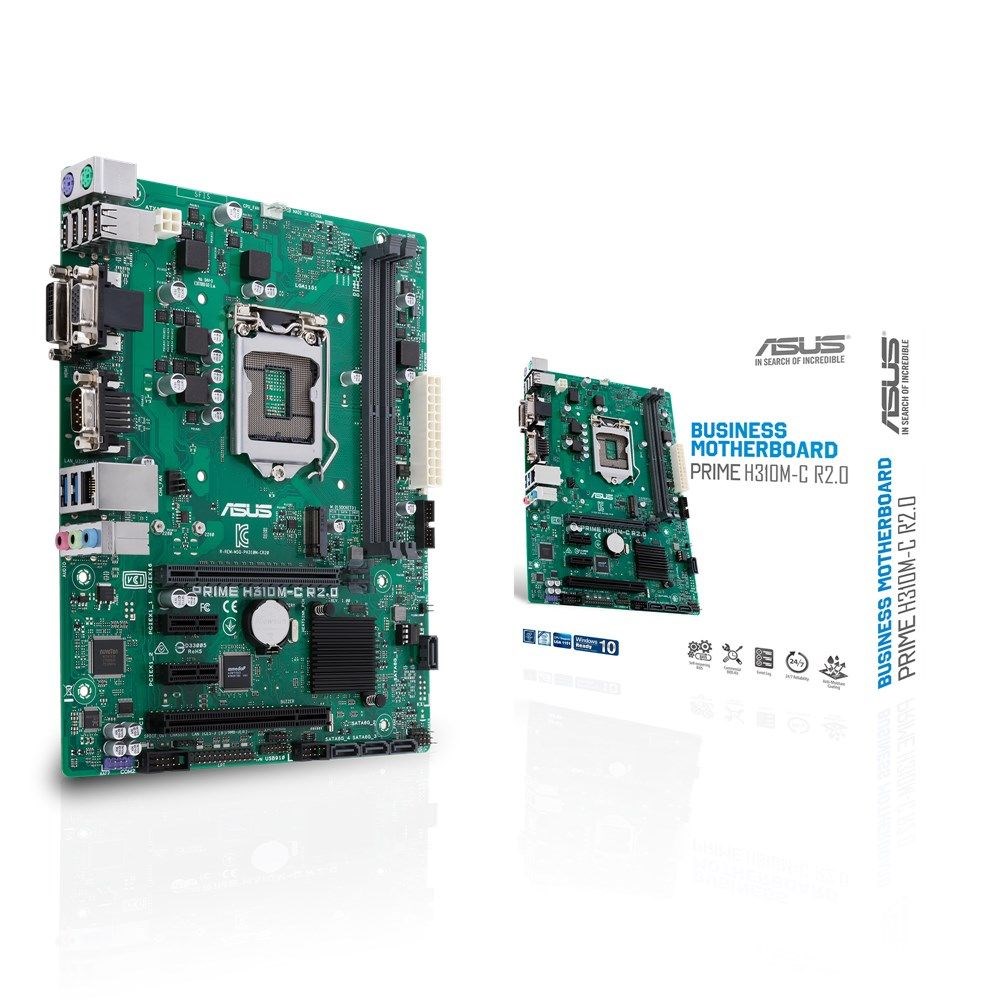

ASUS Intel PRIME H310M-C R2.0 1151P DDR4 SES GLAN VGA/DVI USB3.1 uATX Anakart

Micro-ATX H310 business motherboard with enhanced security, reliability and manageability

• ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
• Dedicated LPC header and debug card with LCD display for faster troubleshooting
• Event log for capturing and managing detailed system information
• Innovative moisture-resistant coating to protect the motherboard from harsh environments
• Commercial BIOS kit to make customization faster and more efficient

ASUS is the world's biggest and best-known motherboard brand. Famous for user-focused Designed Thinking, we understand the importance of security, stability and easy manageability for your business. Our latest lineup of business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization. Combined with our world-class after-sales service and guaranteed long-term availability to maximize your investment over the product lifecycle, ASUS business motherboards provide a high-quality, TCO-optimized solution for your business computing needs.



Teknik Özellikler

• CPU

  Intel® for 8^th Generation Core^™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® H310

• Memory

  2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

• Graphic

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : DVI-D/RGB ports
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 2 displays simultaneously

• Expansion Slots

  1 x PCIe 3.0/2.0 x16
  2 x PCIe 2.0 x1
  1 x PCI

• Storage

  Intel® H310 Chipset :
  1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)
  4 x SATA 6Gb/s port(s)

• LAN

  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC *¹
  - Supports : Jack-detection, Front Panel Jack-retasking

• USB Ports

  Intel® H310 Chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  Intel® H310 Chipset :
  6 x USB 2.0 port(s) (4 at back panel, , Type-A, 2 at mid-board)

• Special Features

  Bespoke Motherboard Design & Business Focused Features :
  - ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
  - ASUS Event Log: Record activities of system and provides information in BIOS
  - ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
  - Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
  - 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
  Easy Assembly Design:
  - Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
  - Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
  Digi+VRM

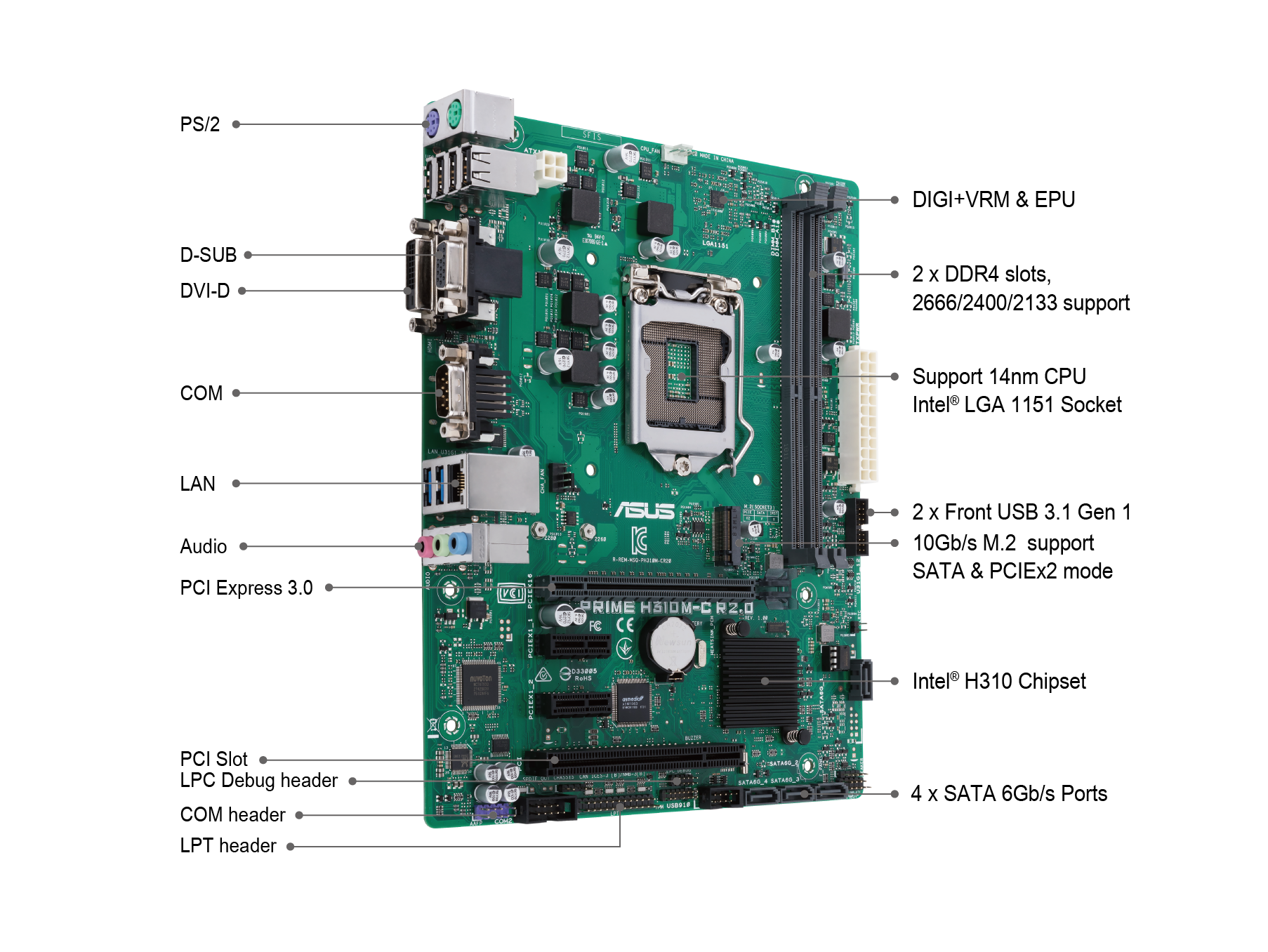

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 ,
  4 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
  1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x2 mode)
  1 x LPT header
  2 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Chassis Intrusion connector(s)
  1 x Clear CMOS jumper(s)
  1 x 14-1 pin TPM connector
  1 x LPC Debug header
  1 x Speaker connector

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD

• BIOS

  128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit

• Manageability

  WOL, PXE

• Support Disc

  Drivers
  ASUS Commercial BIOS Kits
  ASUS Watchdog Timer

• Form Factor

  uATX Form Factor
  9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )

• Note

  *1. Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
  *2. Use with amplified speaker is suggested.
  *3. When a SATA mode M.2 device is installed, the M.2 Socket shares bandwidth with the SATA6G_2 port.
