- İşlemci
Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® İşlemci
Intel® 14 nm CPU'ları Destekler
Intel® Turbo Boost Teknolojisini Destekler 2.0
* Intel ® Turbo Boost Teknolojisi 2.0 desteği CPU türüne bağlıdır.
*Desteklenen CPU listesi için Web Site ziyaret ediniz.
- Yonga Seti
Intel® Z270
- Bellek

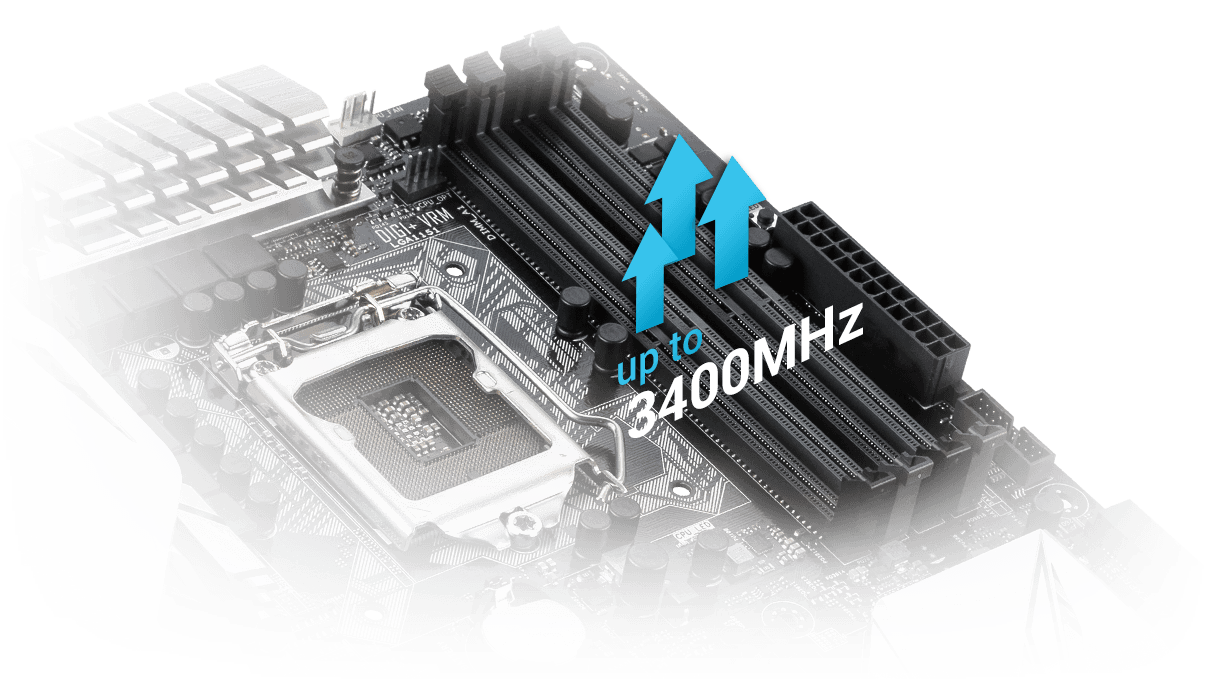

4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz ECC olmayan, Arabelleksiz Bellek
Çift Kanal Bellek Mimarisi
Intel® Extreme Memory Profile (XMP) Destekler
* QVL Listesi için Web Site ziyaret ediniz.
* The maximum memory frequency supported varies by processor.
- Grafik
Tümleşik Grafik İşlemcisi - Intel® HD Grafik desteği
Çoklu VGA çıkış desteği : HDMI/DVI-D/DisplayPort ports
- Desteklenen Maksimum DVI-D çözünürlüğü 1920 x 1200 @ 60 Hz
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Desteklenen Maksimum DisplayPort çözünürlüğü 4096 x 2304 @ 60 Hz
Maksimum paylaşılan bellek 1024 MB
Aynı anda 3 ekrana kadar destekler
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
- Çoklu GPU Desteği
NVIDIA® 2-Way SLI™ Teknolojisini destekler
AMD 3-Way CrossFireX™ Teknolojisini Destekler
- Genişleme Yuvaları
2 x PCIe 3.0/2.0 x16 (x16 veya dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
- Depolama

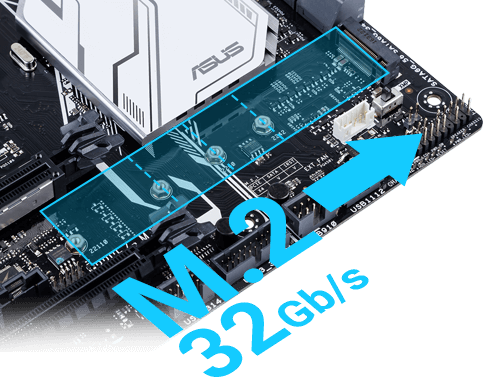

1 x M.2 Socket 3, , with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)*1
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
6 x SATA 6Gb/s port(s), Gri
Raid Desteği 0, 1, 5, 10
Intel® Rapid Storage Technology 15 support
Supports Intel® Smart Response Technology*3
Intel® Optane™ Memory Ready *4
- LAN
Intel® I219V, 1 x Gigabit LAN Kontrolcüsü(leri)

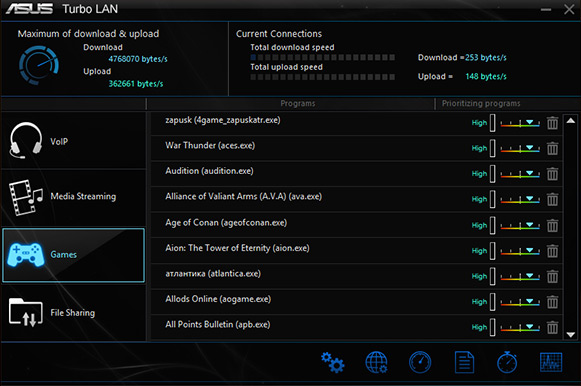

ASUS Turbo LAN Utility
ASUS LAN Guard
- Ses
Realtek® ALC S1220A 8-Kanal High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Destekler : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Ses Özelliği :
- DTS Connect
- DTS Headphone:X
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
- EMI protection cover to prevent electrical noise to affect the amplifier quality
- Power pre-regulator: Reduces power input noise to ensure consistent performance
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Front panel audio connector (AAFP)
Sağ ve sol track'ler için ayrı katmanlarla, her iki sesin eş kalitede gelmesini garantiler
- Supports up to 32-Bit/192kHz playback *5
- USB Portları
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1arka panelde, teal blue, Type-A, Support 3A power output)
ASMedia® USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 port(s) (1arka panelde, , USB Type-CTM, Support 3A power output)
Intel® Z270 Chipset :
6 x USB 3.1 Gen 1 port(s) (4arka panelde, , 2 bord ortasında)
Intel® Z270 Chipset :
6 x USB 2.0 port(s) (6 bord ortasında)
- ASUS´a Özel Özellikler

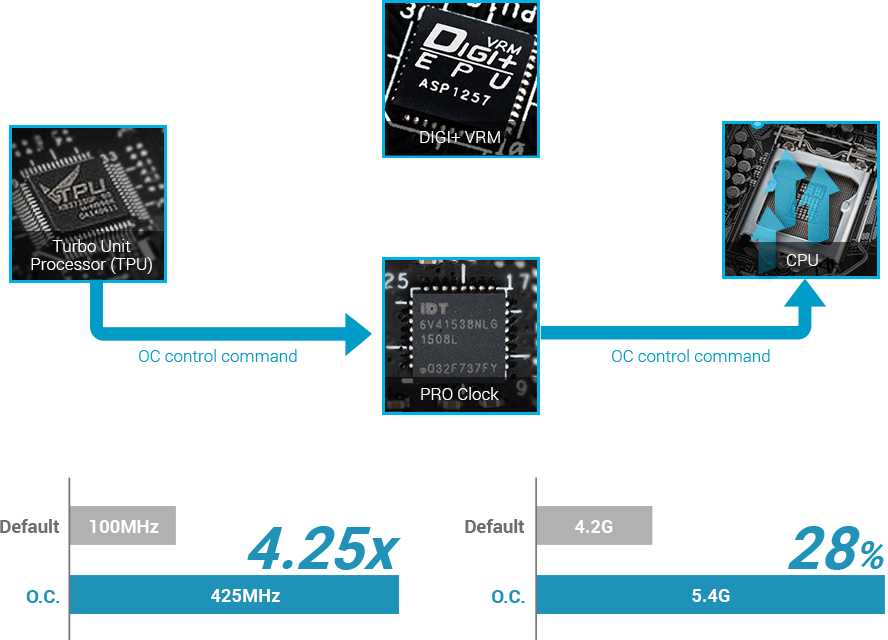

OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 8 Phase digital power design
ASUS TPU :
- Auto Tuning
- GPU Boost
ASUS EPU :
- EPU

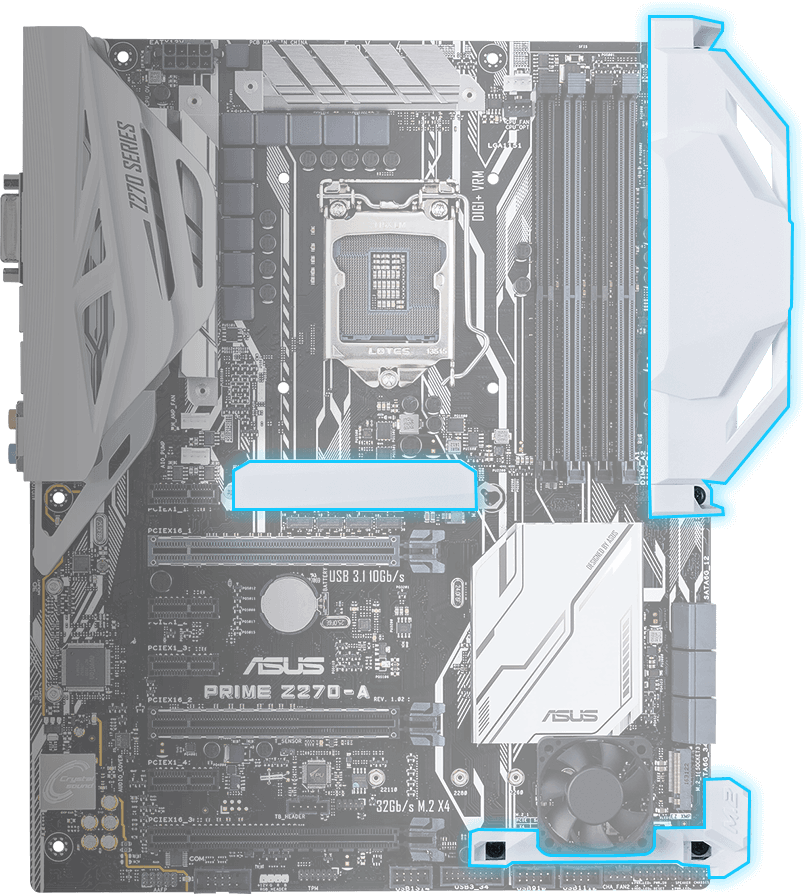

AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger
- Turbo LAN
- Crystal Sound 3
- EZ XMP ASUS Exclusive Features
- PC Cleaner
File Transfer
- Cloud GO!
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- Precision Tweaker 2
- ASUS O.C. Tuner
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
CPU Installation Tool
- Three-step simplicity and safety
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Special Memory O.C. Design
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Turbo APP

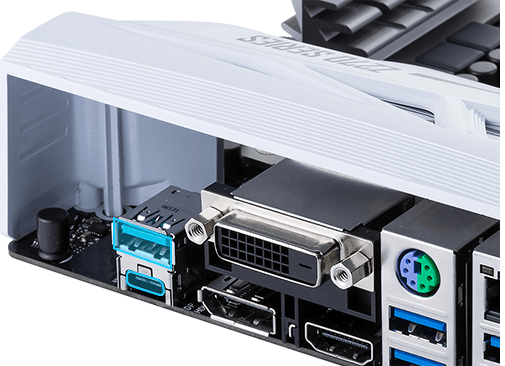

- Arka Giriş/Çıkış Portları
1 x PS/2 klavye/fare combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 USB Type-CTM
4 x USB 3.1 Gen 1
1 x Optik S/PDIF çıkışı
5 x Audio jack(s)
- Dahili Giriş/Çıkış Portları
1 x USB 3.0 bağlantıları ek olarak 2 USB 3.0 portları destekler (19-pin)
3 x USB 2.0 bağlantıları ek olarak 6 USB 2.0 portları destekler
6 x SATA 6Gb/s bağlantısı(ları)
1 x Aura RGB Strip Header
1 x CPU Fan bağlantısı(ları) (1 x 4 -pin)
1 x CPU OPT Fan bağlantısı(ları) (1 x 4 -pin)
2 x Chassis Fan bağlantısı(ları) (2 x 4 -pin)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)

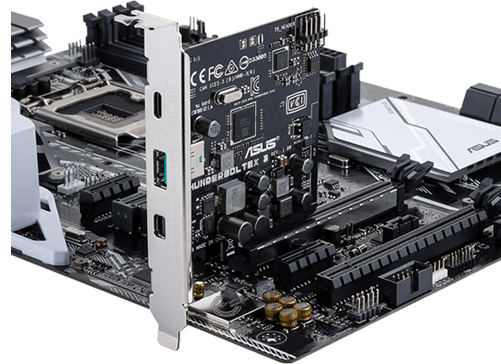

1 x Thunderbolt başlığı(ları)
1 x 24-pin EATX Güç bağlantısı(ları)
1 x 8-pin ATX 12V Güç bağlantısı(ları)
1 x Ön pane ses bağlantısı(ları) (AAFP)
1 x Sistem panel(leri) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x MemOK! düğmesi(leri)
1 x EZ XMP switch
1 x Güç açma düğmesi(leri)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x Clear CMOS anahtarı(ları)
1 x CPU OV
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)
1 x T_Sensor Connector
1 x AIO PUMP Header
2 x 3D Mount screw port(s)
- Aksesuarlar
Kullanıcı kılavuzu
ASUS Q-Shield
3 x SATA 6Gb/s kablosu(ları)
1 x Q-bağlantısı(ları) (1 in 1)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD

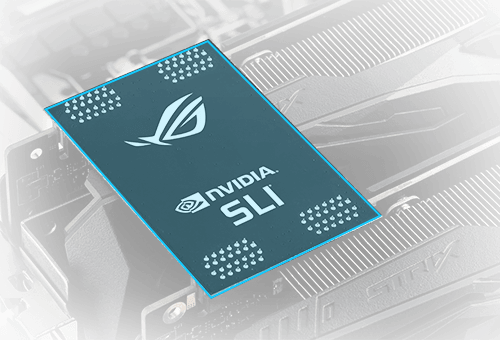

1 x SLI HB BRIDGE(2-WAY-M)
- BIOS

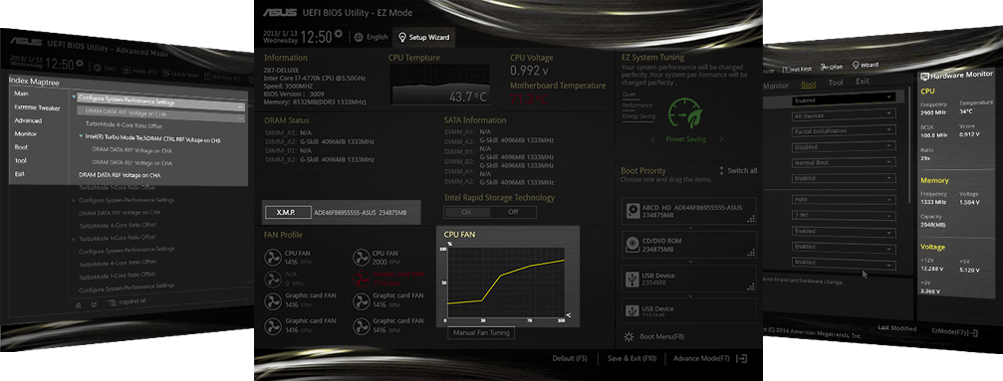

128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log,
F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Yönetilebilirlik
WfM 2.0, DMI 3.0, WOL by PME, PXE
- İşletim Sistemi
Windows® 10 64-bit
Windows® 8.1 64-bit *6
Windows® 7 32-bit *6
Windows® 7 64-bit *6
*6
- Form Faktörü

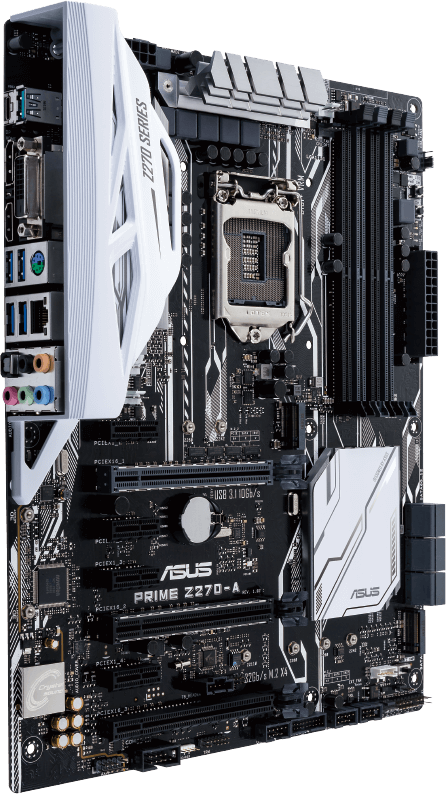

ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Not
*1. The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*2. The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode.
*3. These functions will work depending on the CPU installed.
*4.Intel® Optane Technology is only supported when using 7th Generation Intel® processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*5. Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. 32-Bit/192kHz is only available under Windows® 10.
*6. Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
