Beek BT-NF8208 UTP Kablo Test Cihazı

Beek BT-NF8208 UTP Kablo Test Cihazı

Beek Kablo test cihazı ve Tone Tracer, 1 uç birirmi
Kablo uzunluğunu ölçer
Kopukluklara olan mesafeyi bulur.
Bağlantı hatalarını tespit eder (yanlış sıralama, ters bağlantı, kısa devre, kopukluk, burkulmuş çiftler, crosstalk (sinyal bulaşması).
Kablo tespiti için sinyal (ton) verir. RJ-45, RJ-11, Coax ve USB kablolara sinyal (ton) verebilir. Tone Tracer ve çanta dahildir

• Audio probing and cable tracing function.
• Check wiring error in 5E,6E,coaxial cable such as open circuit,short circuit,jumper wire,reverse connection or cross-talk interference.
• Locate the wiring or connection error.
• Measure cable length and determine the distance of open circuit and short circuit.
• Dynamically calibrate cable length and make length measurement as accurate as 97%.
• Directly find the RJ45 cable.
• In search for other metal cable.
• Measuring network line-break.
• Measure twisted-pair length.
• Auto power off function.
• Simple and easy use,Big LCD screen to display test result clear.
• Portable unit with long battery life(standby 50 hours).
• Automatically time-delay shut off.
• Measure length and pair with or without the far-end recognizer.
• Locate cable and there are 8 far-end passive(remote identifier) test jacks [ID1-ID8] (Note:include ID1 is only included)
• Far-end recognizer (remote identification) with prompting voice.
• Self-checking function.
• Automatically compensate any change in battery capacity or ambient temperature.
• Single board computer software watchdog design with reliable operation.

Specifications:

Display:Special 4x16 character big screen LCD lattice (valid visual field 61.6 8 25.2mm)

Type of cable tester

  * STP/UTP twin twisted cable

  * Coaxial cable (RJ45- to- BNC converter is not included in the set)

Type of cable detected

  * 5E & 6E

  * Coaxial cable (RJ45 - to -BNC converter is not included in the set)

  * Other metal wires

Tester Port

  * Tester RJ45 mater port (M),tester LOOPBACK rj45 port (L),hunting RJ45 port (SCAN)

  * Remote identifier RJ45 port(R)

Length Measurement of Twin Twisted Cable

  * Scope: 1~350M (3~200ft)

  * Calibration accuracy:3% (±0.5M or ±1.5ft)(calibration cable > 5M)

  *Shipment accuracy:5% (±0.5M or ±1.5ft)(AMP,AT&T Class 5 cable)

Display:M (meter) or ft.(feet)

Length Calibration

  * User can set calibration factory by himself with a given length cable

  * Length of calibrating cable is more than 5M

Wire Sequence and locating cable error:check errors such as

  * Open circuit

  * Short circuit

  * Reverse connection

  * Cross-over or cross-talk interference

Locating cable: 8 Remote identifier test jacks (ID1 TO ID8) (note:include ID1 is only included)

Automatic time-delay shut off time:if idle for 30 minutes

Power supply

  * Main Unit:4*1.5v AA batteries (not included in set)

  * Receiver:1*9V battery (included)

Overall dimension

  * Main tester:180*80*40mm

  * Receiver:218* 46* 29mm

  * Remote Identifier: 77* 31* 21mm

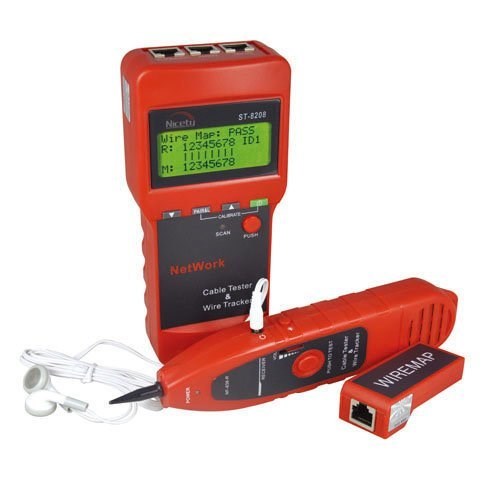

Set includes

  1* Main Tester (Emitter)

  1* Receiver

  1* Recognizer (Remote identifier)

  1* Toolkit Bag

  1* RJ45 - to- Alligator clip

  1* Earphone

  1* English User Manual

  1*9V battery

  Colored packaging box
