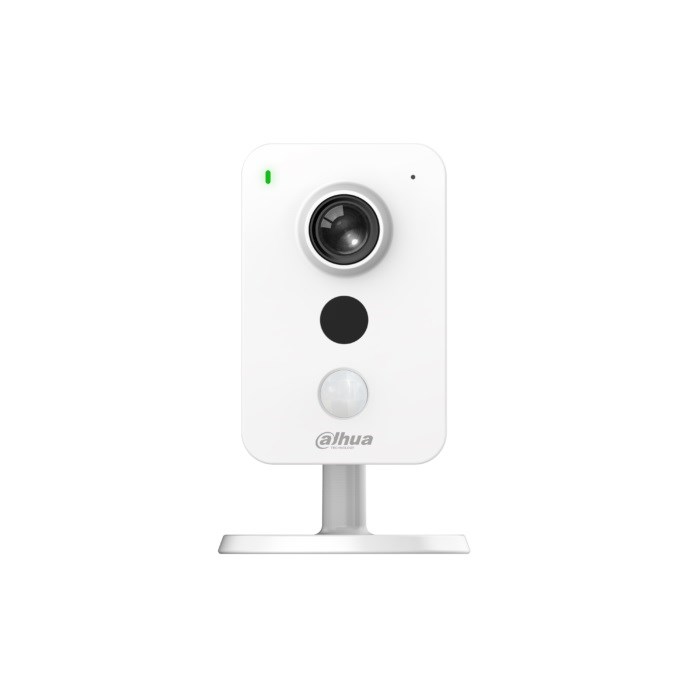

DAHUA IPC-K42P 4MP H.265 IR Network Kamera

Camera

Image Sensor :  1/3”4Megapixel progressive CMOS
Max. Resolution :  2560 (H) × 1440 (V)
ROM  : 128 MB
RAM : 128 MB
Scanning System :  Progressive
Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
Min. Illumination : Manual 1/30 s
0. 170 Lux @F2.0 (Color, 80 IRE); 0.165 Lux @F2.0 (W/B,
80 IRE); 0 Lux (IR on)
Manual 1/3 s
0.0141 Lux @F2.0 (Color, 80 IRE); 0.0116 Lux @F2.0
(W/B, 80 IRE); 0 Lux (IR on)
S/N Ratio :  > 46.6 dB
Illumination Distance :  10 m (32.8 ft) (IR LED)
Illuminator On/Off Control : Auto
Illuminator Number :  1 (IR LED)
Pan/Tilt/Rotation Range :  Pan: 0°–360°, Tilt: 0°–90°


Lens
Lens Type :  Fixed-focal
Mount Type  : M12
Focal Length  : 2.8 mm
Max. Aperture  : F2.0
Field of View :
Horizontal: 97°
Vertical: 52°
Diagonal: 116°
Iris Type :  Fixed
Close Focus Distance :  0.8 m (2.6 ft)
DORI Distance :

Detect  56.0 m (183.7 ft)

Observe 22.4 m (73.5 ft)

Recognize 11.2 m (36.7 ft)

Identify  5.6 m (18.4 ft)

Video
Video Compression :  H.265; H.264; H.264H; H.264B; MJPEG
Smart Codec H.264: Yes
H.265: Yes
Video Frame Rate :
50 Hz
Main stream (2560 × 1440 @25 fps), sub stream (640 ×
480 @25 fps)
Main stream (2304 × 1296 @25 fps), sub stream (640 ×
360 @25 fps)
Main stream (1920 × 1080 @25 fps), sub stream (320 ×
240 @25 fps)
60 Hz
Main stream (2560 × 1440 @30 fps), sub stream (640 ×
480 @30 fps)
Main stream (2304 × 1296 @30 fps), sub stream (640 ×
360 @30 fps)
Main stream (1920 × 1080 @30 fps), sub stream (320 ×
240 @30 fps)
Stream Capability :  2 streams
Resolution : 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); VGA (640 × 480); 640 × 360; QVGA (320 × 240)
Bit Rate Control :  CBR/VBR
Video Bit Rate :  H.264: 184 kbps–6144 kbps, H.265: 73 kbps–6144 kbps
Day/Night  : Auto (ICR)/Color/B/W
BLC  : Yes
HLC :  Yes
WDR  : DWDR
White Balance  : Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control  : Auto/Manual
Noise Reduction :  3D DNR
Motion Detection :  OFF/ON (4 areas, rectangular)
Region of Interest (RoI)  : Yes (4 areas)
Smart Illumination  : Yes
Image Rotation :  0°/90°/180°/270°
Mirror :  Yes
Privacy Masking  :4 areas

Audio
Built-in MIC :  Yes
Audio Compression :  G.711a; G.711Mu


Alarm
Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering


Network
Network :  RJ-45 (10/100 Base-T)
Wi-Fi :  Yes
SDK and API  : Yes
Protocol  : HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; QoS; NTP
Interoperability :  ONVIF (Profile T/Profile S/Profile G); CGI; DMSS
User/Host  : 20 (Total bandwidth: 100 M)
Storage :  NAS; FTP; SFTP; Micro SD card (256 G)
Browser :

IE: IE7 and later
Chrome: Chrome 45 and later
Firefox: FireFox 46 and later
Safari: Mac os Safari12
Management Software :  DMSS
Mobile Phone :  IOS; Android


Certification
Certification :
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
CE-RED: Radio Equipment Directive 2014/53/EU
FCC: 47 CFR FCC Part 15, Subpart B
FCC ID: FCC PART 15C
Entry Series | IPC-K42

Port
Alarm Input :  1 channel in: 5mA 3V–5V DC
Alarm Output :  1 channel out: 300mA 12V DC


Power
Power Supply :  12V DC
Power Consumption  : Max 3.3W (12V DC)


Environment
Operating Conditions :  –10°C to +45°C (14°F to +113°F)/Less than 95%RH
Storage Conditions :  –40°C to +60°C (–40°F to +140°F)


Structure
Casing  : Plastic
Dimensions :  Φ78.5 mm × 90.5 mm × 127.8 mm (3.1" × 3.6" × 5.0") (L × W × H)
Net Weight :  160 g (0.4 lb)
Gross Weight  : 360 g (0.8 lb)


EAN Numarası: IPC-K42P
