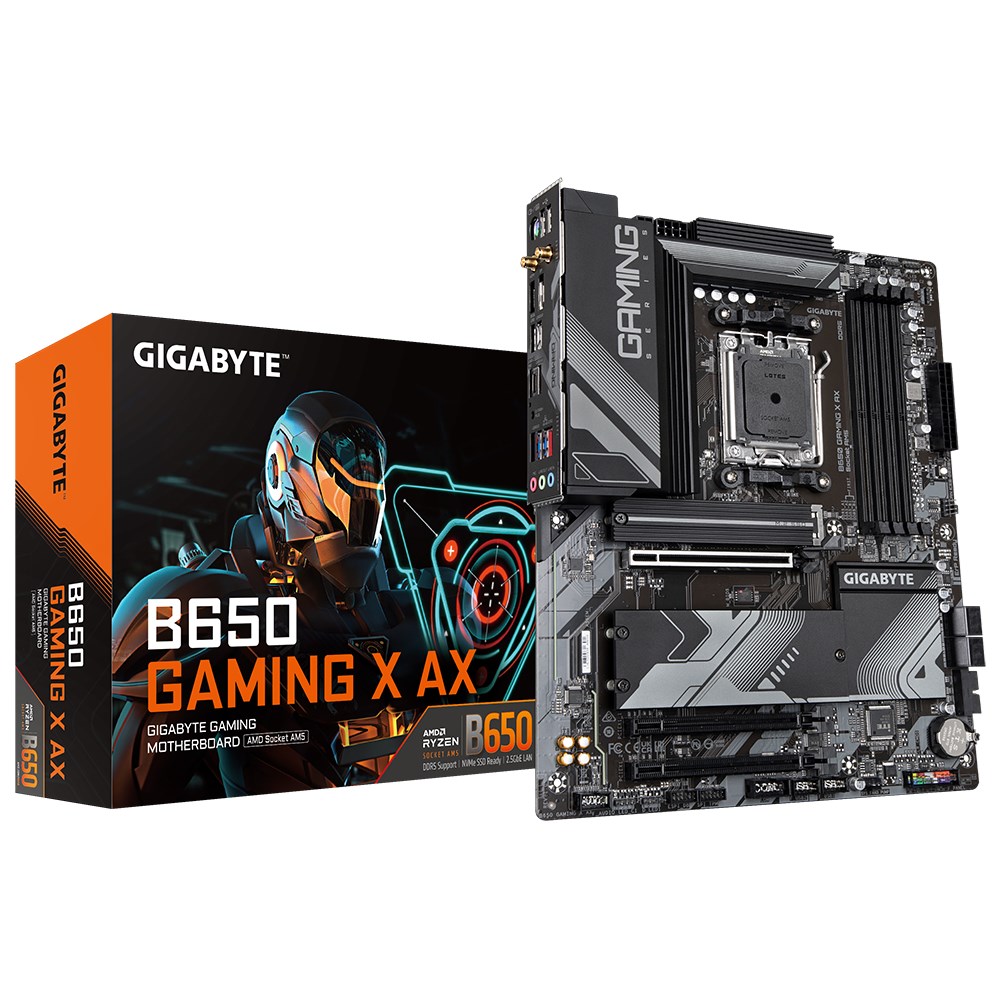

Gigabyte B650 GAMING X AX DDR5 AMD B650 Soket AM5 ATX Anakart

CPU:

AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset:

AMD B650

Memory:

Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Audio:

Realtek^® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN:

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors:

2 x SMA antenna connectors (2T2R)

1 x Q-Flash Plus button

1 x DisplayPort

1 x HDMI port

1 x USB Type-C^® port, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

3 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Form Factor:

ATX Form Factor; 30.5cm x 24.4cm
