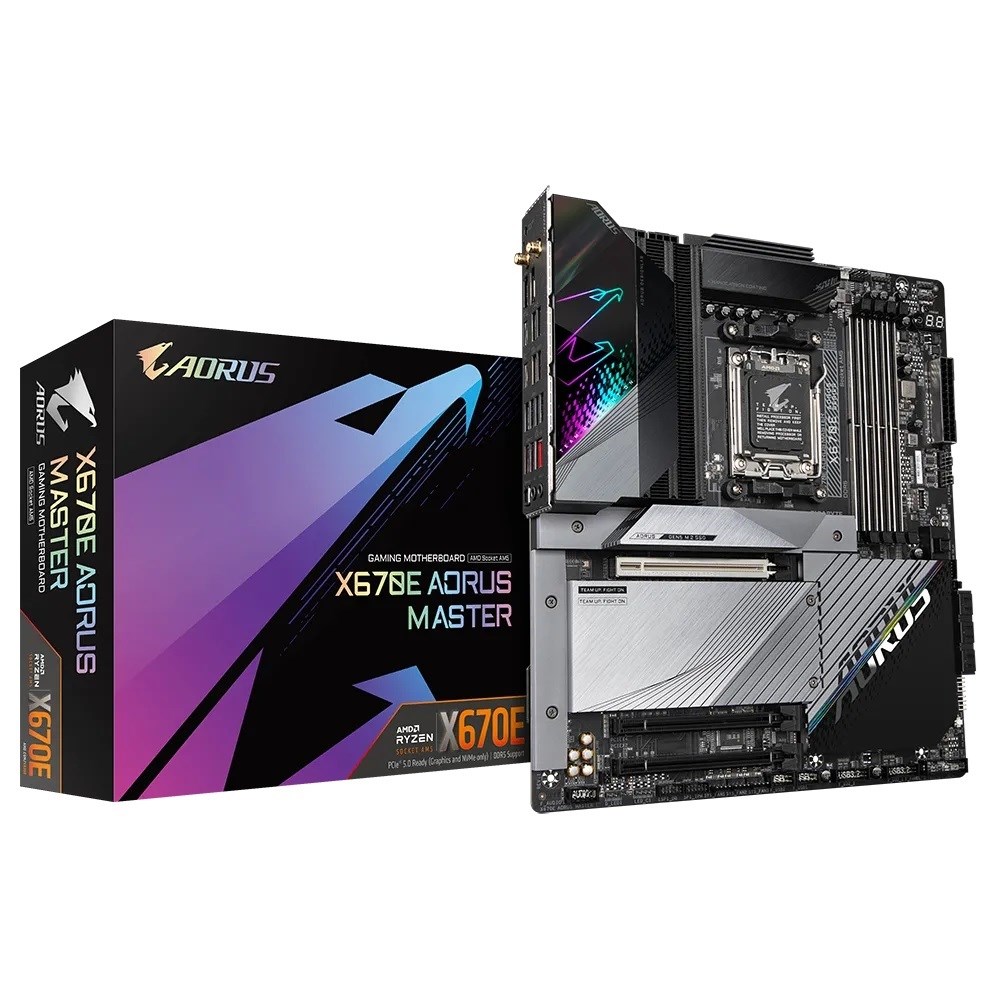

Gigabyte X670E AORUS MASTER DDR5 AMD X670 Soket AM5 eATX Anakart

CPU:

AMD Socket AM5, support for : AMD Ryzen 7000 Series Processors

Chipset:

AMD X670

Memory:

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Onboard Graphics:

Integrated Graphics

LAN:

Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x THB_U4 add-in card connector

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

Back Panel Connectors:

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x HDMI port

1 x USB Type-C^® port (DisplayPort), with USB 3.2 Gen 2 support

1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

4 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller:

iTE^® I/O Controller Chip

BIOS:

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

E-ATX Form Factor; 30.5cm x 26.9cm

EAN Numarası: 4719331844363
