Msi H170M PRO-VDH Intel H170 1151p DDR4 VGA DVI HDMI GLAN SATA EXP. SATA3 USB3.1 Anakart

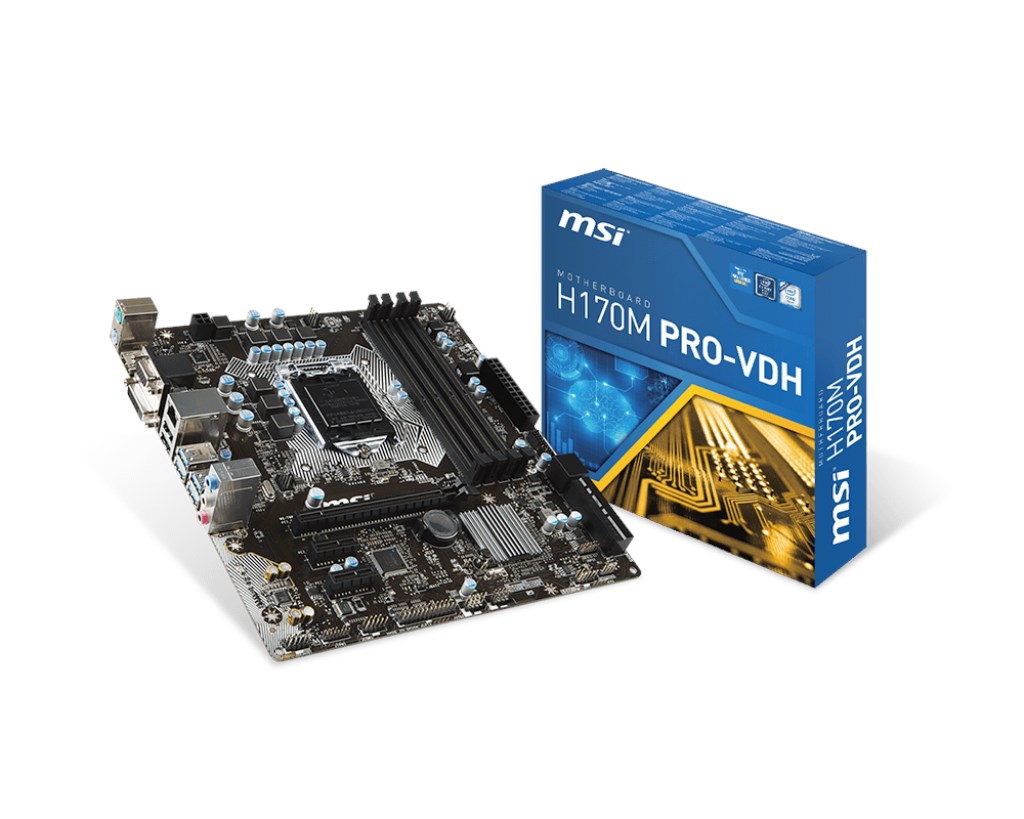

MSI H170M PRO-VDH ANAKART
6th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1151 socket
DDR4-2133 Memory
DDR4 Boost
SATA Express 16Gb/s + SATA 6Gb/s
VGA Armor
Click BIOS 5
Audio Boost
Military Class 4
Guard-Pro
EZ Debug LED
4K UHD Support
Intel® SBA Support

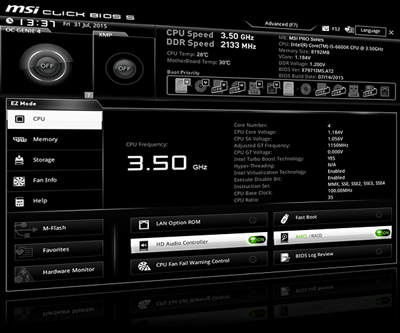

TYEPYENİ, ÖDÜL SAHİBİ CLICK BIOS 5
Geliştirilen, ödül sahibi CLICK BIOS 5'i inceleyin ve sisteminizin oyunlarda maksimum performans göstermesi için ayarlayın. MSI CLICK BIOS, UEFI BIOS'un Windows 10 için optimize edilmiş özelliklere sahip yeni neslidir.
Sisteminizi 2 modda kontrol edin: EZ modu, sık kullanılan işlev ve ayarlar için. Advanced modu ise detaylı ve ince ayarlarla sisteminizin performansını arttırmak için
Oyun performansınızı arttırmak için birçok seçenek
Ödül alan tasarıma sahip gelece nesil UEFI BIOS
Yüksek çözünürlüklü, çok dil desteğine sahip, ölçeklendirilebilir font
Kolay kullanım
Geliştirilmiş hızaşırtma

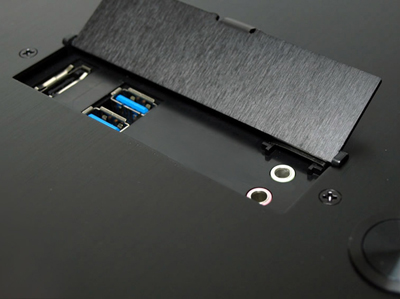

2X USB FRONT USB 3.1 GEN1
Zekice yerleştirilmiş USB 3.1 Gen1 ön yuvası ile MSI anakartlarında 2 adede kadar USB 3.1 Gen1 cihazını doğrudan kasanızın ön panelinde kullanabilirsiniz. Böylece hızlı USB hızlarına ulaşmak için kasanızın kalan ulaşılması güç yerlere eğilmek zorunda kalmazsınız.
4K UHD
MSI anakartlarla hayret verici 4K UHD (2160p ultra-yüksek çözünürlük) video görüntüsünün tadını çıkarın.
HDMI
Bu anakart, en yeni 4K Ultra-HD4096x2160p çözünürlük (30Hz) destekleyen nefes kesici bir görsel deneyim sunar.
CPU
• Supports 6th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
* Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• Intel® H170 Chipset
Main Memory
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 2133 MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
Slots
• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 3.0 x1 slots
Onboard Graphics
• 1 x HDMI™ ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1 x DVI-D port, support a maximum resolution of 1920x1200@60Hz
• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
On-Board SATA
• Intel® H170 Chipset
• 6 x SATA 6Gb/s ports
• 1 x SATAe port (PCIe 3.0 x2)*
• Supports RAID 0, RAID 1, RAID 5 and RAID 10
• Supports Intel® Smart Response Technology for Intel Core™ processors.
* SATAe port is backward compatible with SATA.
USB
• Intel® H170 Chipset
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
Audio
• Realtek® ALC887 Codec
• 7.1-Channel High Definition Audio
LAN
• 1 x Realtek RTL8111H Gigabit LAN controller
Back Panel I/O Ports
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x HDMI™ port
- 1 x DVI-D port
- 1 x VGA port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 3 x audio jacks
Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Clear CMOS jumper
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
Dimension
• 9.3 in. x 9.0 in. (23.5 cm x 22.8 cm) m-ATX Form Factor
Mounting
• 6 mounting holes
