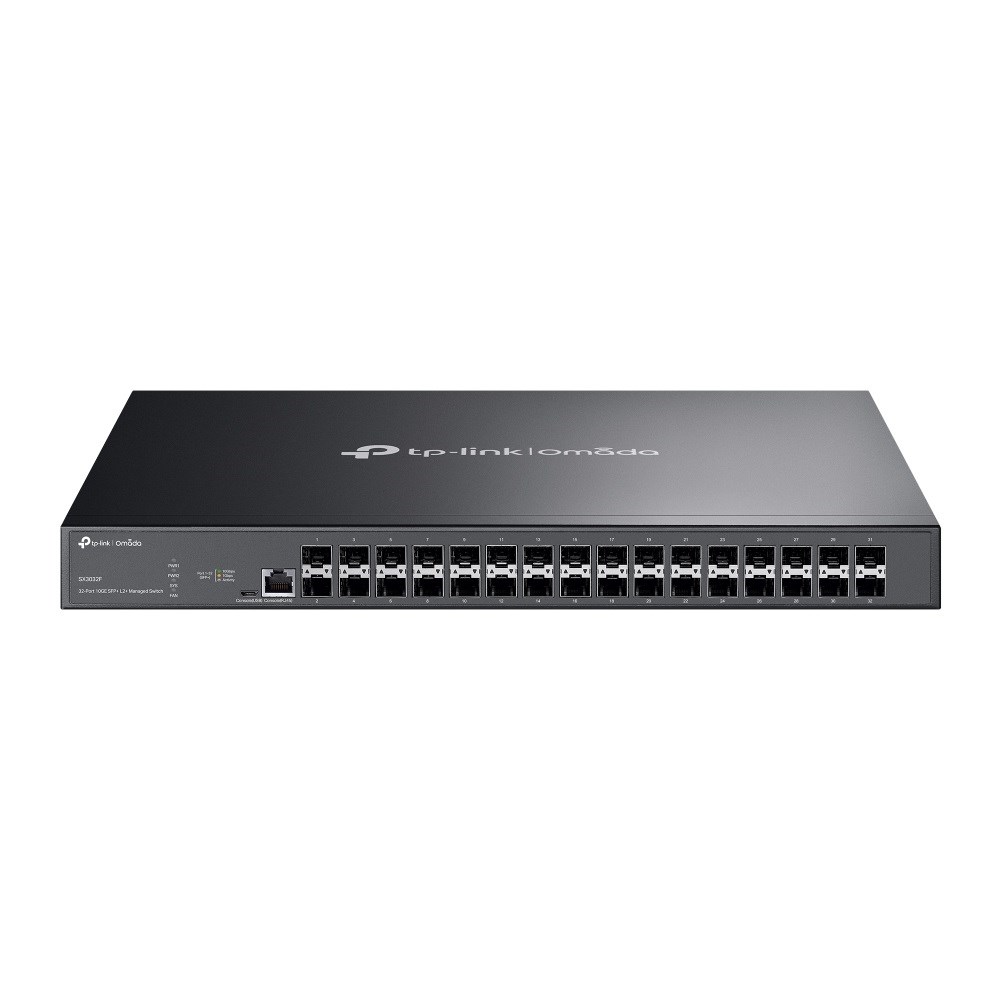

TP-Link SX3032F Omada 32 Port Yönetilebilir Switch

Toplam 0 adet yorum Yorum Yap

Bu ürün geçici olarak temin edilememektedir

Ürün temin edildiğinde tekrar satışa sunulacaktır.

Teknik Bilgiler:

Switch Tipi	Yönetilebilir
Bağlantı Hızı	10 Gbps

Port Sayısı

TP-Link SX3032F Omada 32 Port Yönetilebilir Switch

Teknik Özellikler

DONANIM ÖZELLİKLERİ
Arabirim	• 32× 1/10Gbps SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Sayısı	2 internal fixed fans
Fiziksel Güvenlik Kilidi	√
Güç Kaynağı	• 1+1 Redundant Power Supply (internal fixed) • 100-240 V AC~50/60 Hz
Boyutlar ( W X D X H )	17.3×13.0×1.7 in (440×330×44 mm)
Montaj	Rack Mountable
Maks. Güç Tüketimi	49.4 W (220 V / 50 Hz)

PERFORMANS
Anahtarlama Kapasitesi	640 Gbps
Paket Yönlendirme Hızı	240 Mpps
MAC Adres Tablosu	32 K
Paket Buffer Belleği	24 Mbit
Jumbo Frame	9 KB

YAZILIM ÖZELLİKLERİ
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 ve L2+ Özellikleri	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 510 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring
L2 Multicast	• Supports 4000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile
Gelişmiş Özellikler	• Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Intelligent Network Monitoring^† • Unified Configuration^† • Reboot Schedule^† ISP Features: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow
VLAN	• VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN • GVRP • VLAN VPN (QinQ): VLAN Mapping, VLAN Replace • Voice VLAN
Erişim Kontrol Listesi	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN
Güvenlik	• IP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - ND Snooping - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X - Port base authentication - MAC-based authentication - VLAN Assignment - MAB - Guest VLAN - Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB

YÖNETİM
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Password Recovery • SNTP • System Log

EAN Numarası: 4895252504477

Switch Tipi	Yönetilebilir
Bağlantı Hızı	10 Gbps
Port Sayısı	32
