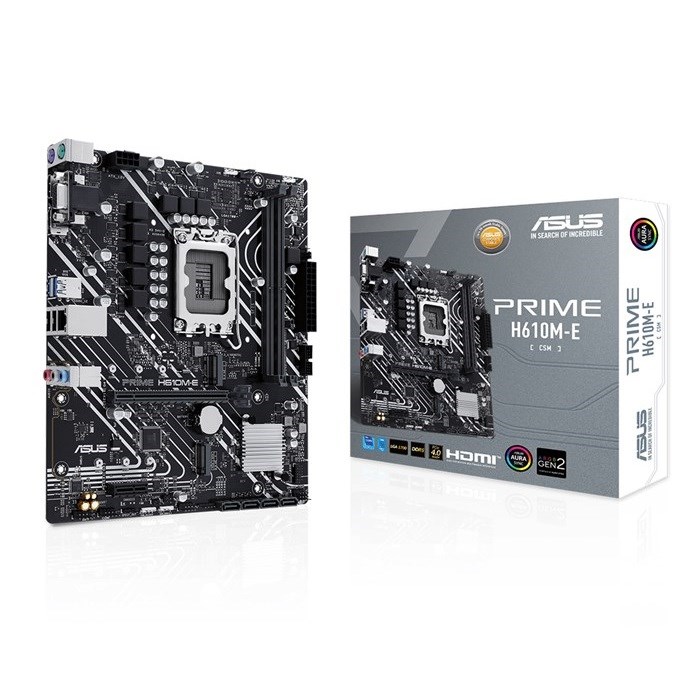

ASUS PRIME H610M-E-CSM DDR5 LGA1700 VGA/HDMI/DP M.2 USB3.2 mATX Anakart

CPU

Intel^® Socket LGA1700 for 13^th Gen Intel^® Core™ Processors & 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMI^TM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI^TM2.1.

Expansion Slots

Intel^® 13^th & 12^th Gen Processors

1 x PCIe 4.0 x16 slot

Intel^® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel^® H610 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 1(5G)  ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI^TM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G)  header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
1 x Aura RGB header
3 x Addressable Gen 2  headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
 EPU
 DIGI+ VRM
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

Manageability : WOL by PME, PXE

Accessories

 Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Documentation
1 x User guide

Operating System : Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )

EAN Numarası: 4711387259795
