- İşlemci

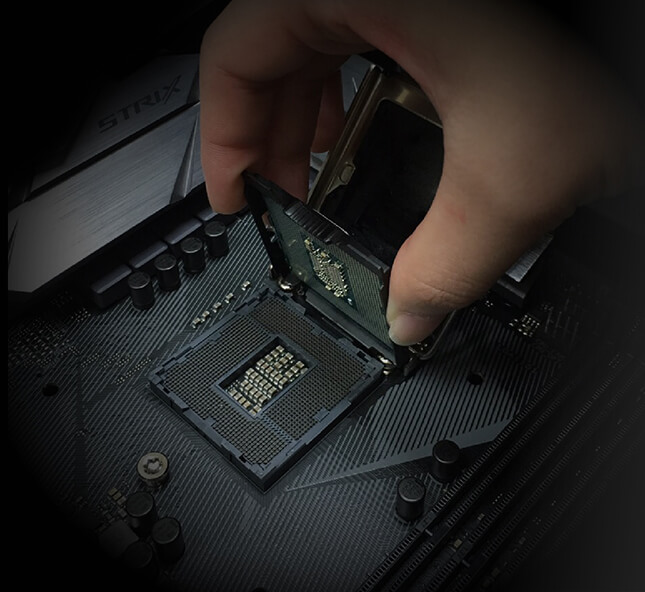

Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® İşlemci
Intel® 14 nm CPU'ları Destekler
Intel® Turbo Boost Teknolojisini Destekler 2.0
* Intel ® Turbo Boost Teknolojisi 2.0 desteği CPU türüne bağlıdır.
*Desteklenen CPU listesi için Web Site ziyaret ediniz.
- Yonga Seti
Intel® Z270
- Bellek

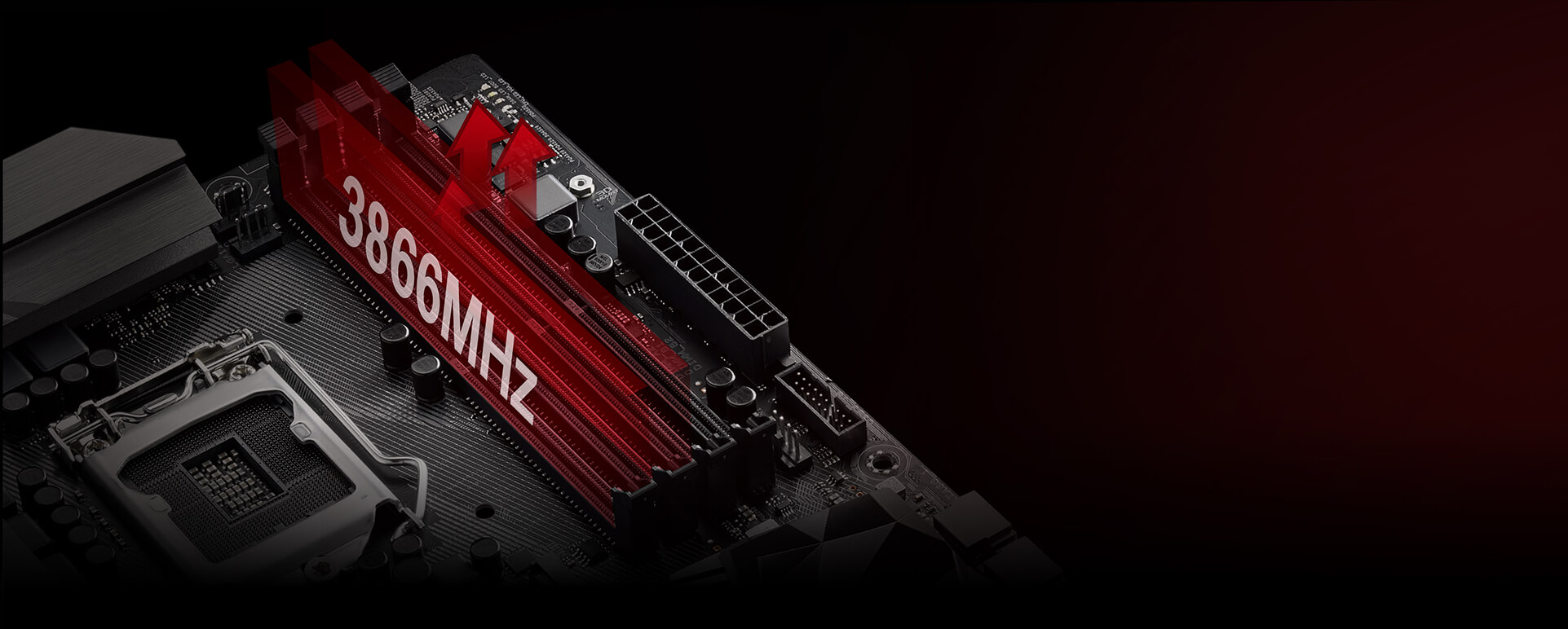

4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz ECC olmayan, Arabelleksiz Bellek
Çift Kanal Bellek Mimarisi
Intel® Extreme Memory Profile (XMP) Destekler
* Hyper DIMM desteği her işlemcinin fiziksel özelliklerine bağlıdır.
* QVL Listesi için Web Site ziyaret ediniz.
- Grafik
Tümleşik Grafik İşlemcisi - Intel® HD Grafik desteği
Çoklu VGA çıkış desteği : HDMI/DVI-D/DisplayPort ports
- Desteklenen Maksimum HDMI çözünürlüğü 4096 x 2160 @ 24 Hz
- Desteklenen Maksimum DVI-D çözünürlüğü 1920 x 1200 @ 60 Hz
- Desteklenen Maksimum DisplayPort çözünürlüğü 4096 x 2304 @ 60 Hz
Maksimum paylaşılan bellek 1024 MB
Intel® desteği InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Aynı anda 3 ekrana kadar destekler
- Çoklu GPU Desteği
NVIDIA® 2-Way SLI™ Teknolojisini destekler
AMD 3-Way CrossFireX™ Teknolojisini Destekler
- Genişleme Yuvaları
2 x PCIe 3.0/2.0 x16 (x16 veya dual x8)
1 x PCIe 3.0/2.0 x16 (x4 mode)
4 x PCIe 3.0/2.0 x1
- Depolama
Intel® Z270 Chipset :
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*2
1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3
6 x SATA 6Gb/s port(s)
Raid Desteği 0, 1, 5, 10
Supports Intel® Smart Response Technology*4
Intel® Optane™ Memory Ready *5
- LAN

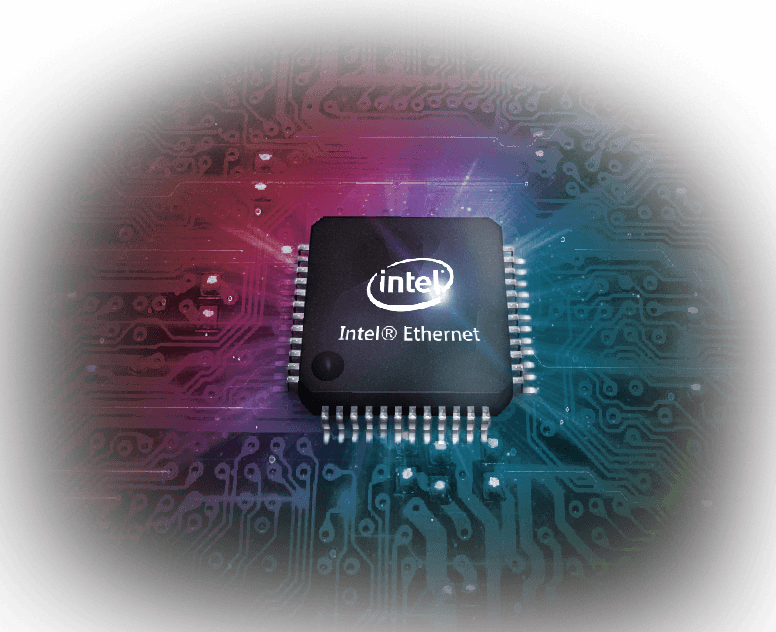

Intel® I219V

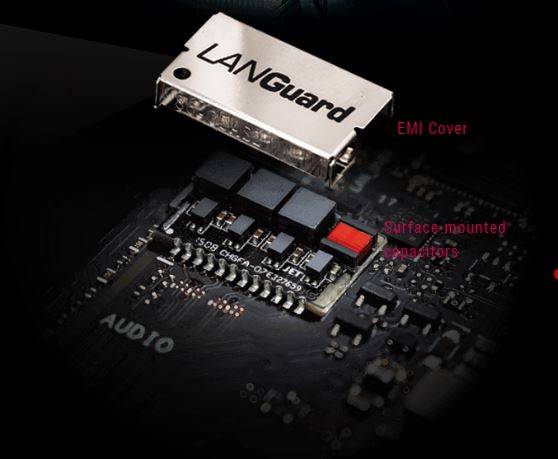

Anti-surge LANGuard

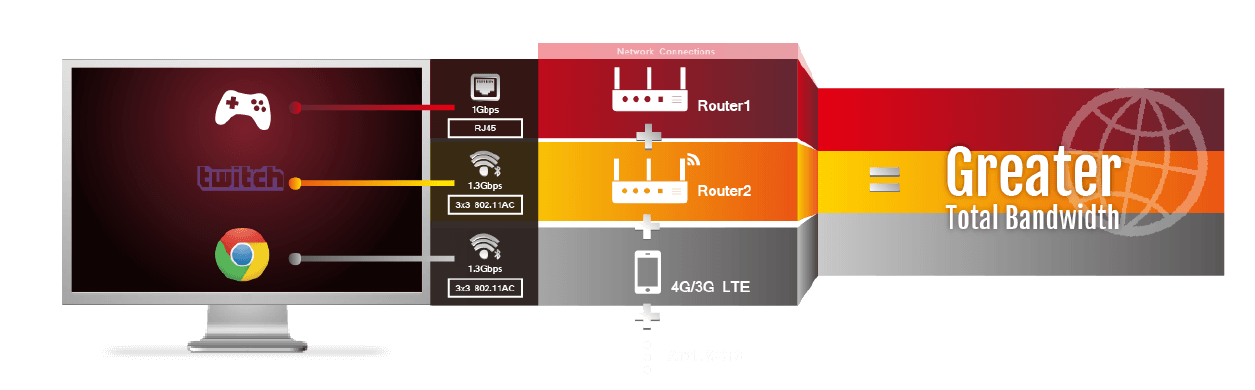

ROG GameFirst Technology
- Kablosuz Veri Ağı
Wi-Fi 802.11 a/b/g/n/ac
Çift bant frekans desteği 2.4 / 5 GHz
Supports MU-MIMO
- Bluetooth
Bluetooth V4.1

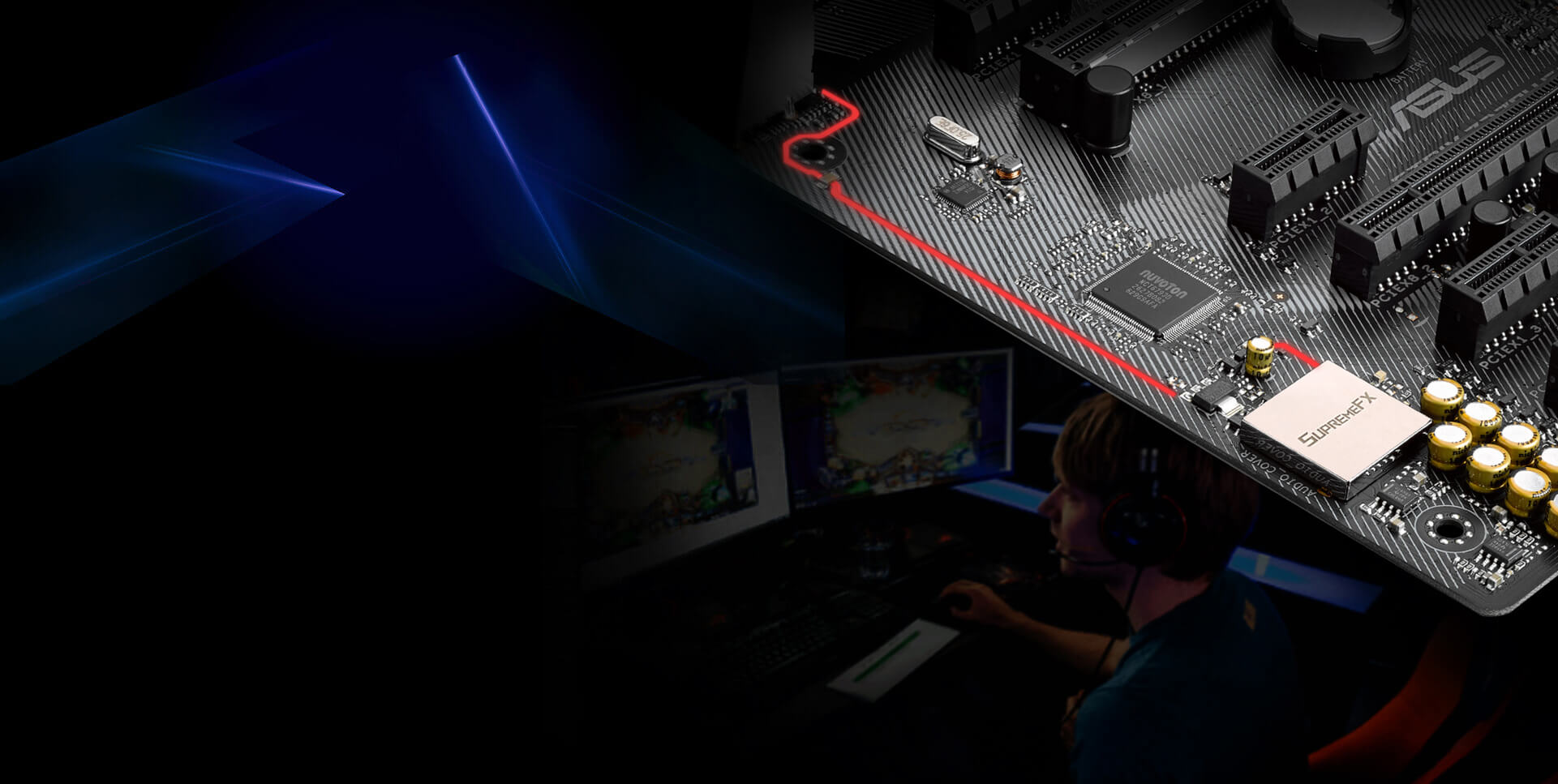

- Ses
ROG SupremeFX 8-Kanal High Definition Audio CODEC S1220A
- Dual Headphone Amplifiers
- Impedance sense for front and rear headphone outputs
- Destekler : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Ses Özelliği :
- SupremeFX Shielding™ Teknolojisi
- Arka panelde Optik S/PDIF çıkış(ları)
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

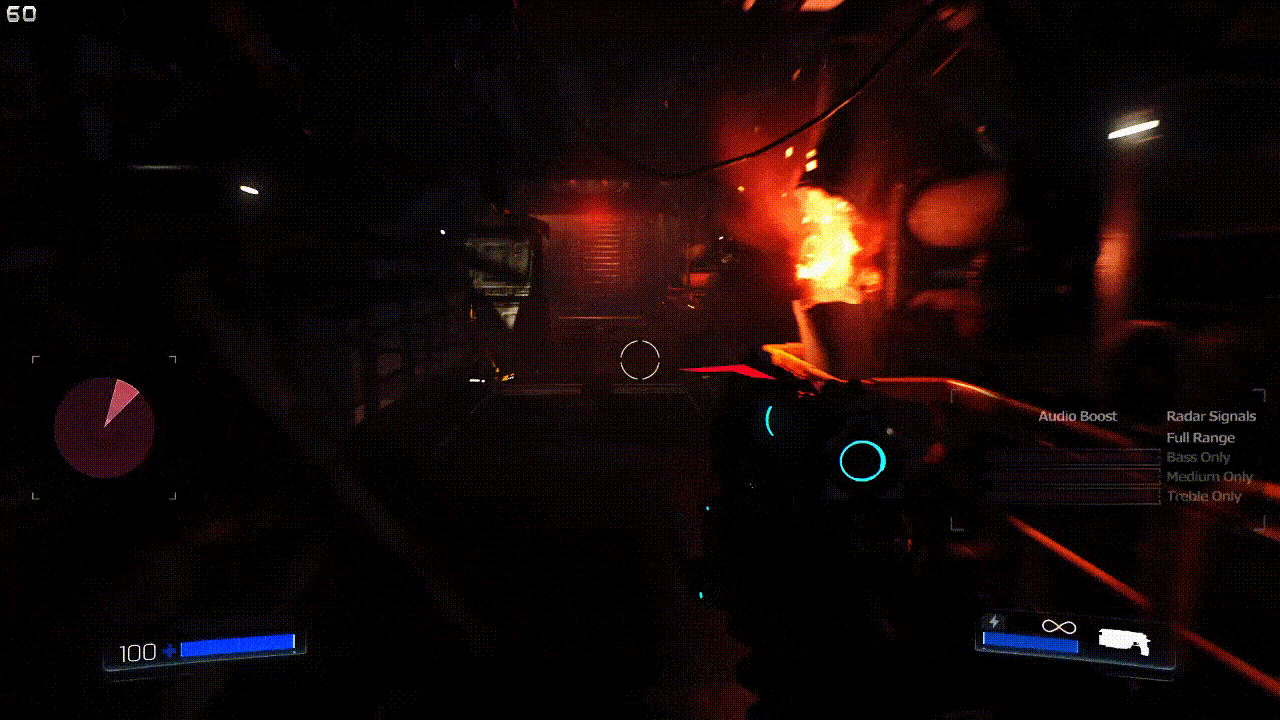

- Sonic Radar III

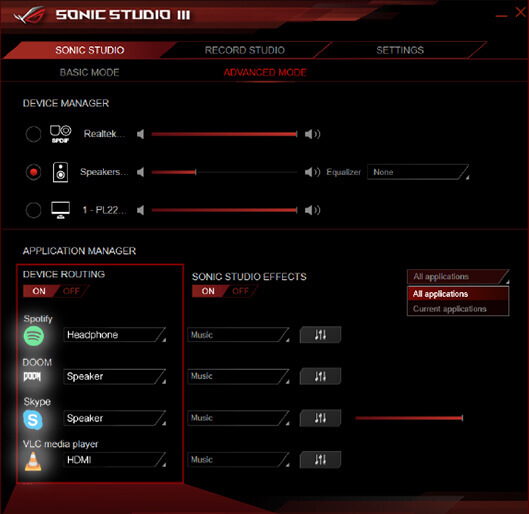

- Sonic Studio III
- SupremeFX Shielding Teknolojisi
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/192kHz playback *6
- USB Portları
Intel® Z270 Chipset :
6 x USB 3.1 Gen 1 port(s) (4arka panelde, Mavi, 2 bord ortasında)
Intel® Z270 Chipset :
6 x USB 2.0 port(s)
ASMedia® USB 3.1 controller : *7
1 x USB 3.1 front panel connector port(s)
ASMedia® USB 3.1 controller :

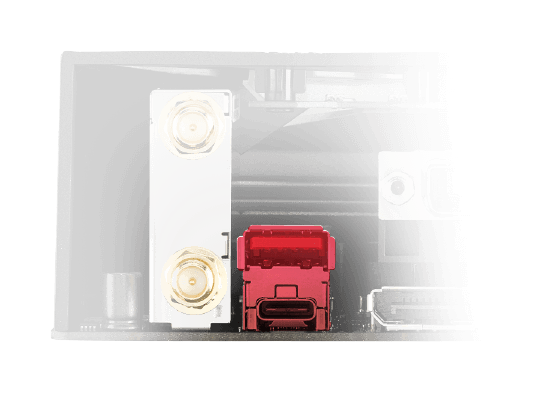

2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM, Support 3A power output)
- Overclock Özellikleri
ROG RAMCache II
ROG CPU-Z
ROG CloneDrive
Overwolf
GameFirst IV

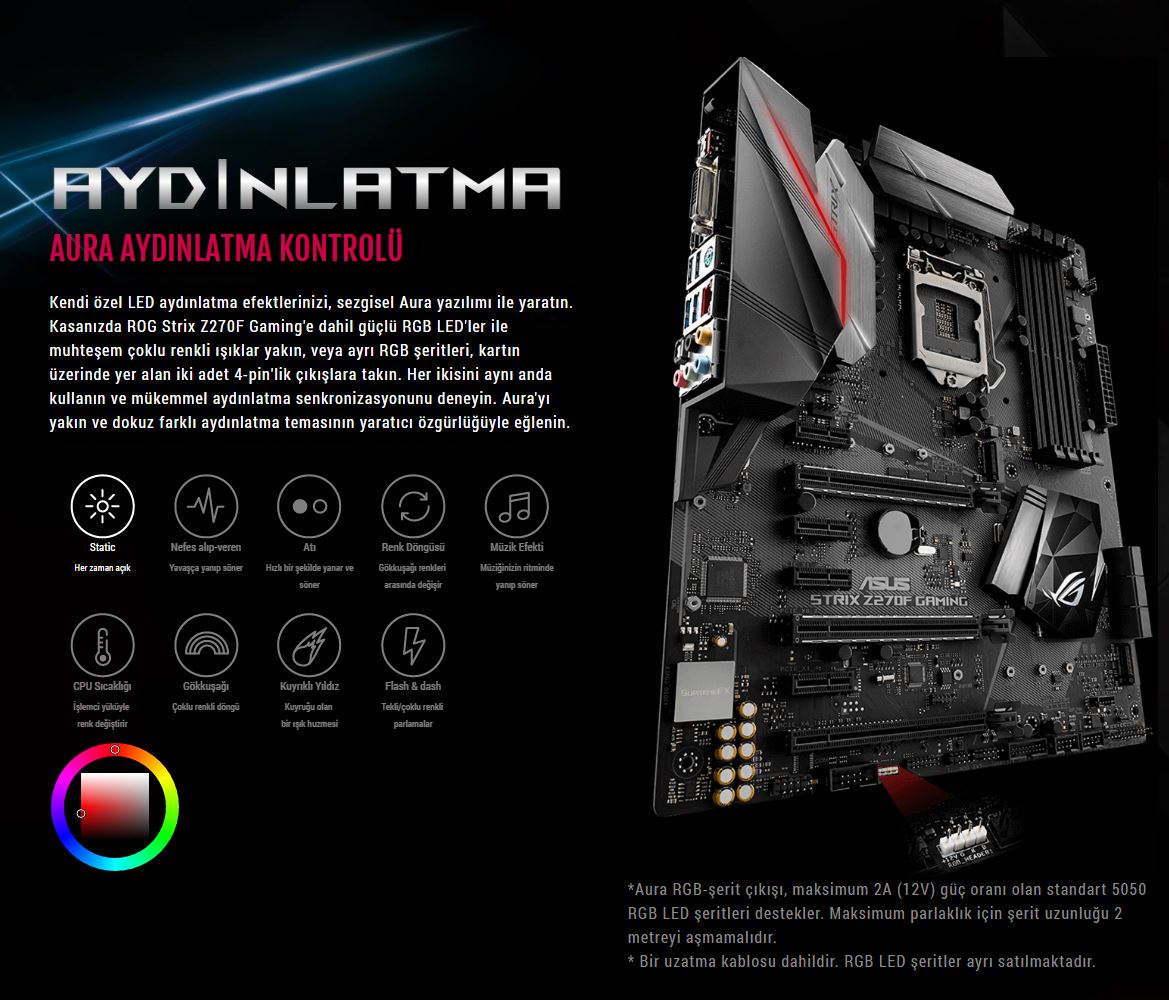

ROG Aura
- Aura Lighting Control
- Aura RGB Strip Headers
- ASUS´a Özel Özellikler
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance

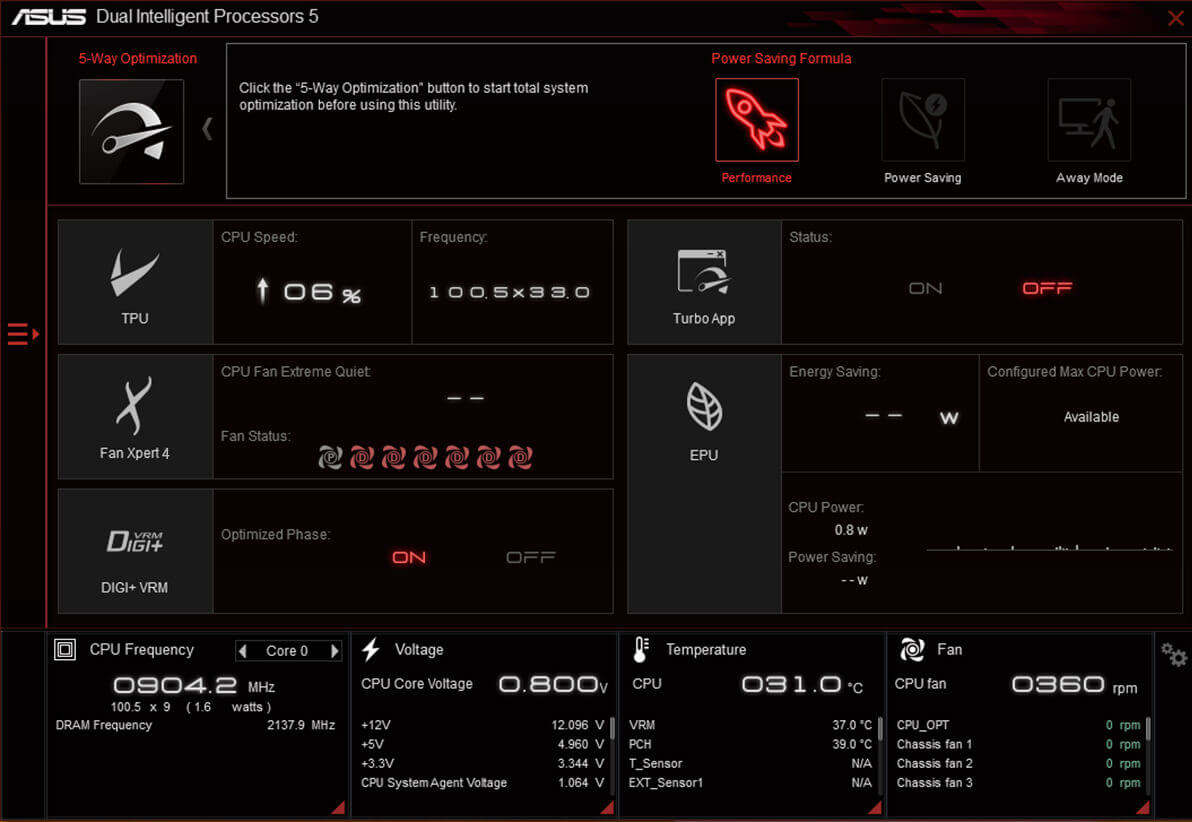

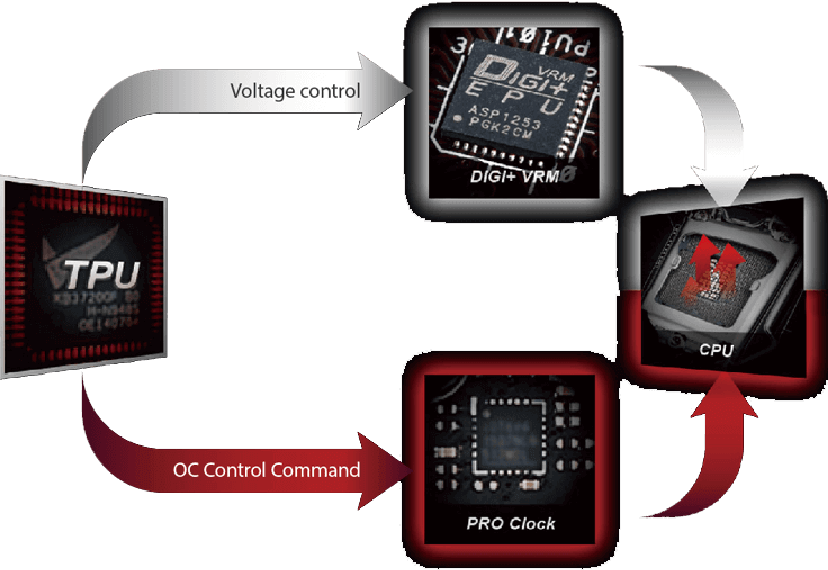

5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
TPU
- Auto Tuning, TurboV, GPU Boost

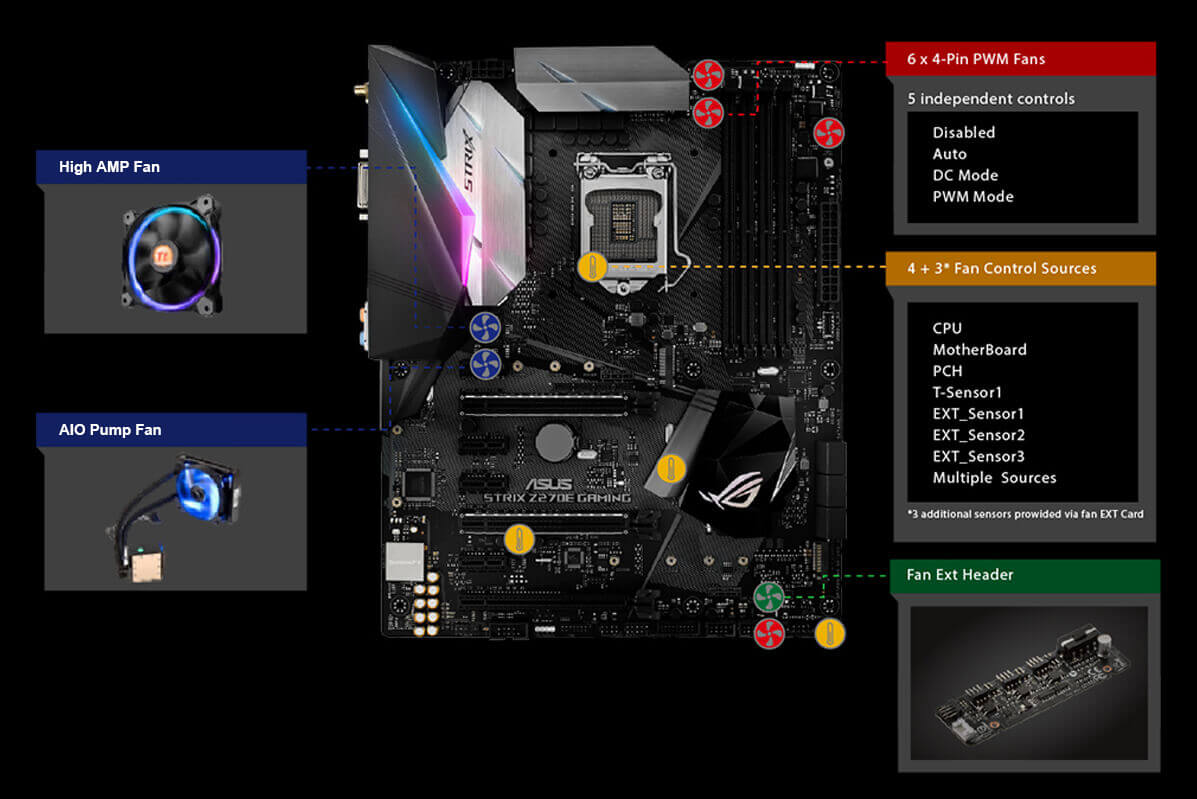

- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors
Gamer's Guardian:
- DRAM Overcurrent Protection
- Stainless Steel Back I/O
- Highly Durable Components
- DIGI+ VRM

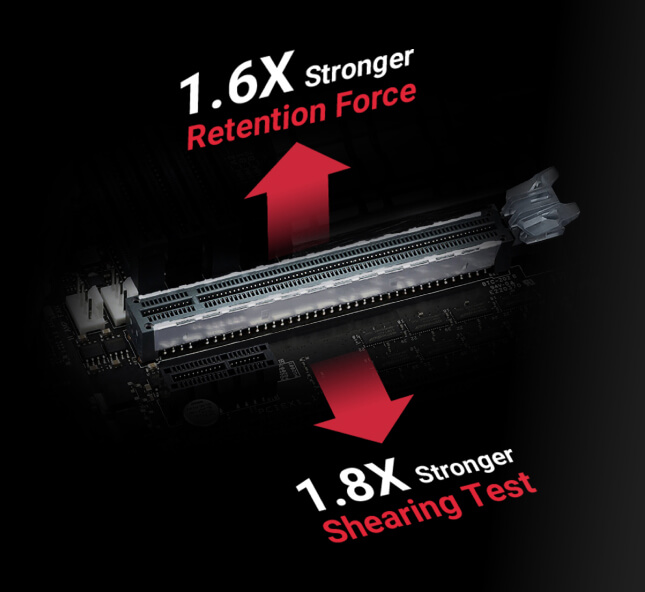

- SafeSlot
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ESD Guards
- PC Cleaner
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Shield

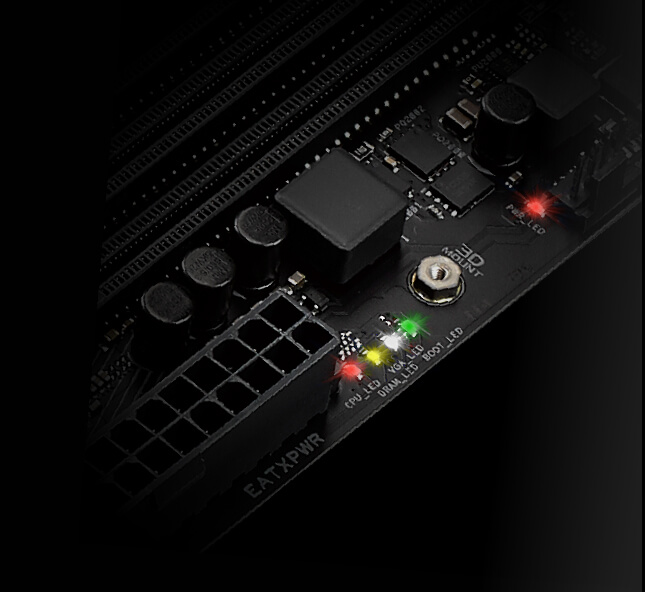

- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :

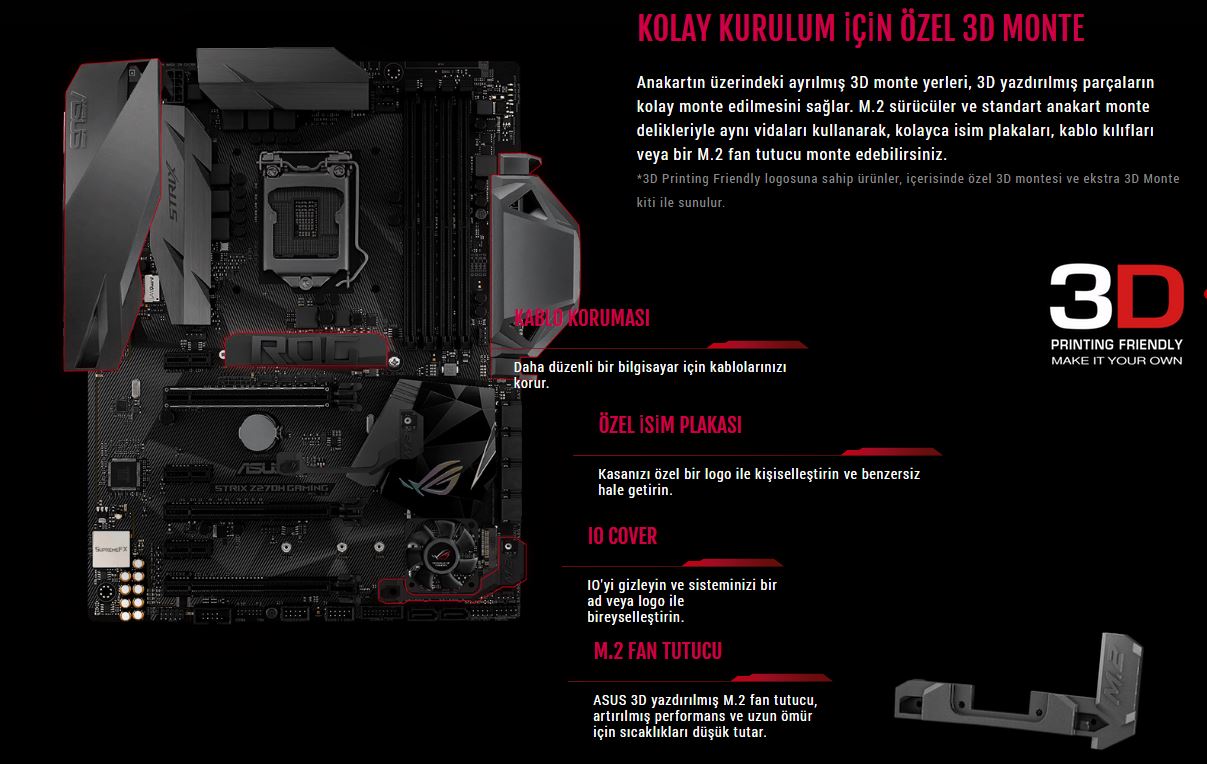

- 3D printing friendly

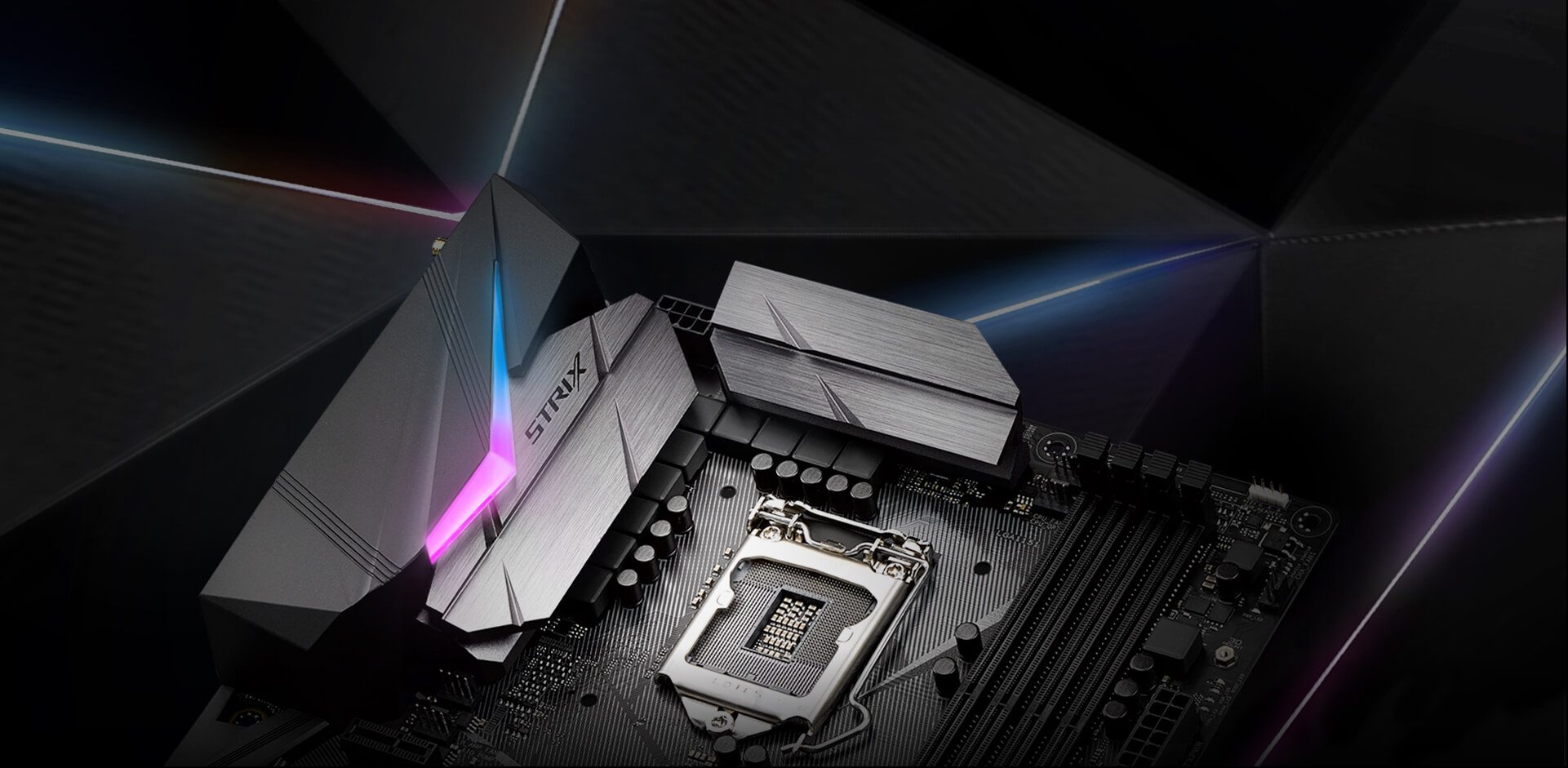

- AURA-RGB Lighting
Digi+VRM
Turbo APP

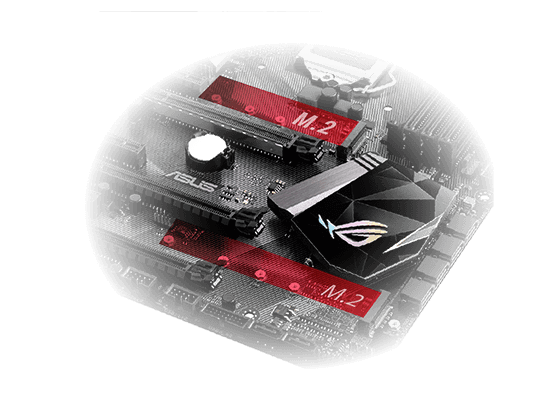

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
- Arka Giriş/Çıkış Portları
1 x PS/2 klavye/fare combo port(s)
1 x DVI-D
1 x DisplayPort
1 x HDMI
2 x USB 3.1 Type-A + USB Type-CTM
4 x USB 3.1 Gen 1 (Mavi)
1 x Optik S/PDIF çıkışı
5 x Audio jack(s)
1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0
- Dahili Giriş/Çıkış Portları
1 x USB 3.0 bağlantıları ek olarak 2 USB 3.0 portları destekler
3 x USB 2.0 bağlantıları ek olarak 6 USB 2.0 portları destekler
1 x AAFP connector
6 x SATA 6Gb/s bağlantısı(ları)
1 x RGB Header(s)
1 x CPU Fan bağlantısı(ları)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x CPU OPT Fan bağlantısı(ları)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
2 x Chassis Fan bağlantısı(ları)
1 x 24-pin EATX Güç bağlantısı(ları)
1 x 8-pin ATX 12V Güç bağlantısı(ları)
1 x Ön panel bağlantısı(ları)
1 x Sistem panel(leri) (Chassis intrusion header is inbuilt)
1 x DRCT başlığı(ları)
1 x Termal sensör bağlantısı(ları)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x CPU OV
1 x ROG extension (ROG_EXT) header(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x High AMP Fan header (4-pin)
1 x T_Sensor Connector
1 x AIO PUMP Header
3 x 3D Mount screw port(s)
1 x USB 3.1 Gen 2 front panel connector
- Aksesuarlar
Kullanıcı kılavuzu
ASUS Q-Shield
4 x SATA 6Gb/s kablosu(ları)
1 x M.2 Screw Package
1 x CPU installation tool
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x 10-in-1 ROG cable label
1 x Extension Cable for RGB strips (80 cm)

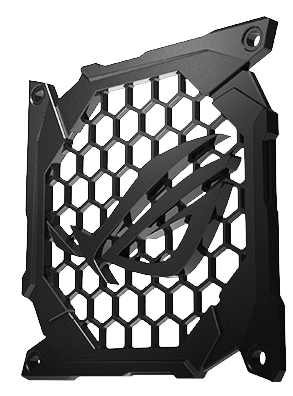

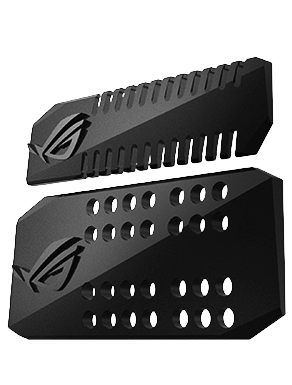

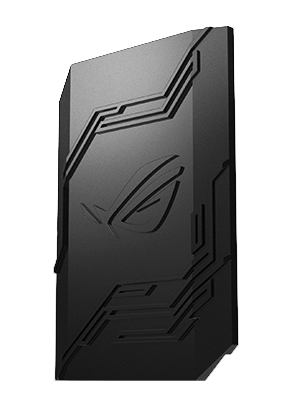

1 x 3D printing mount package
1 x ROG coasters

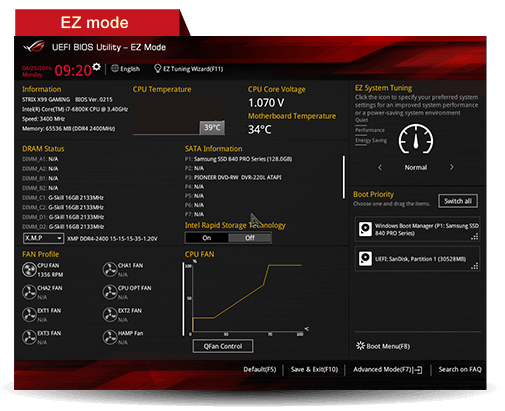

- BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.
- Yönetilebilirlik
WfM2.0, DMI3.0, WOL by PME, PXE
- İşletim Sistemi
Windows® 10 64-bit
Windows® 8.1 64-bit *8
Windows® 7 32-bit *8
Windows® 7 64-bit *8
- Form Faktörü
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Not
*1 DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays.
*2 The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.
*3 The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.
*4 These functions will work depending on the CPU installed.
*5 Intel® Optane Technology only supported when using 7th Generation Intel® Processors. Before using Intel® Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.
*6 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*7 The USB 3.1 front panel connector shares bandwidth with PCIE_x1_2 and PCIE_x1_4. If the USB 3.1 front header is connected, PCIE_x1_2 and PCIE_x1_4 will be
disabled.
*8 Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors.
*9 ROG GameFirst IV is only available for Windows® 10/8.1 64-bit
*10 Support for the Bluetooth specification depends on the Windows version. Win7/8.1 support up to Bluetooth 4.0.
