BENQ MX535 3600 ANS 1024x768 XGA 2xHDMI VGA 15.000:1 3D DLP Projektör

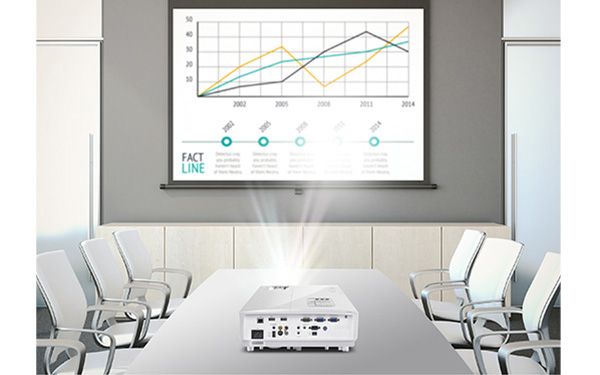

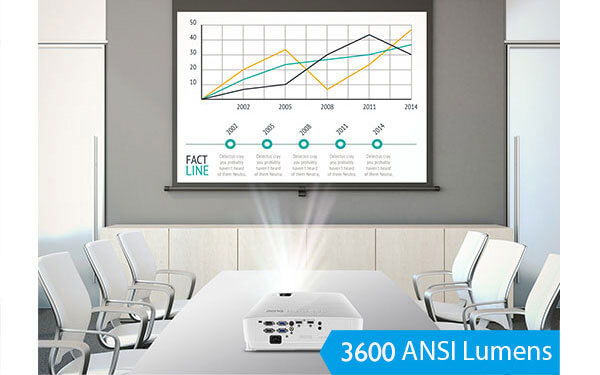

Clear High Brightness for Small Well-Lit Meeting Rooms

3,600 lumens of high brightness enable comfortable lights-on presentations to promote discussion, collaboration, and note-taking in small well-lit meeting rooms accommodating up to 10 participants. The high luminance boosts picture quality with vibrant color for pictures and videos as well as crisp text and fine details.

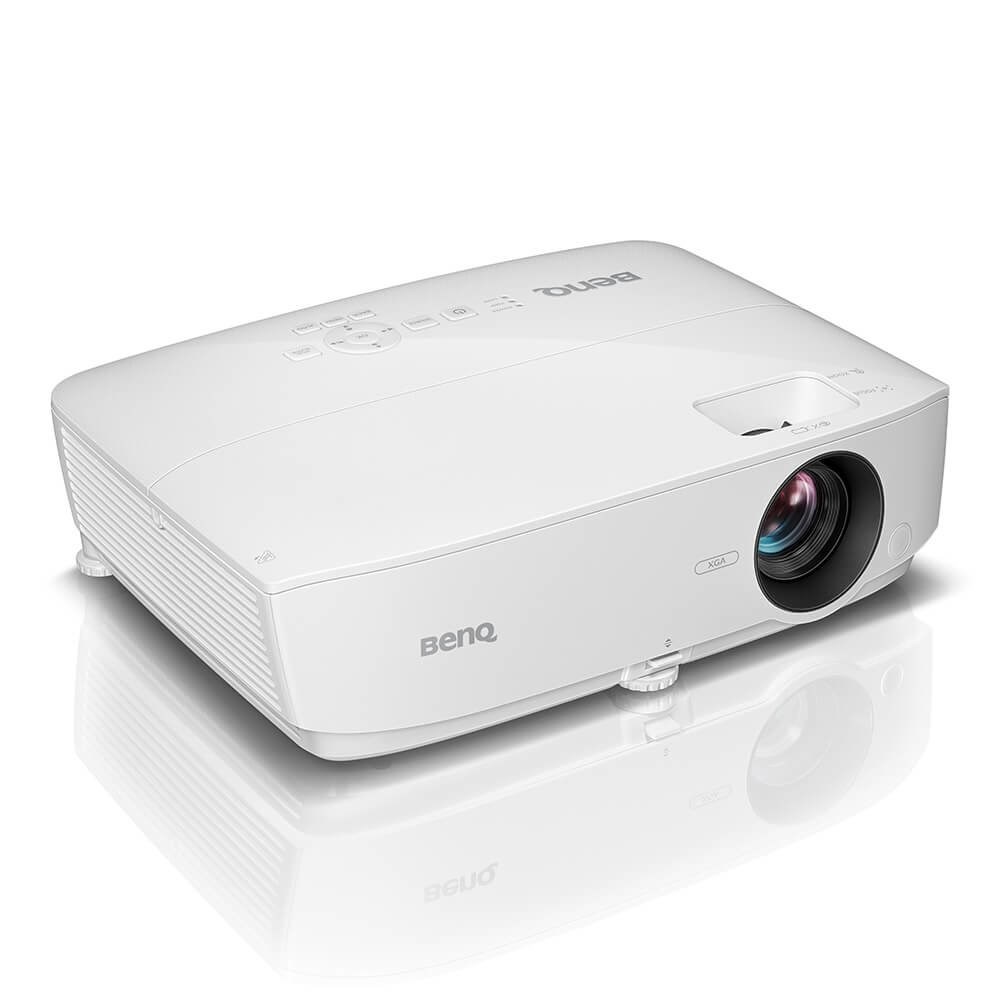

BenQ Business Projector MX535

Conventional Projector

High Contrast for Clear Text

With industry-leading contrast and pixel fill factor, BenQ projectors produce the truest blacks and unmatched readability with every character, graph, and chart crisply defined. High fill factor increases clarity for black and white or color images and reduces eye strain for presenters and audiences to stay focused on the content.

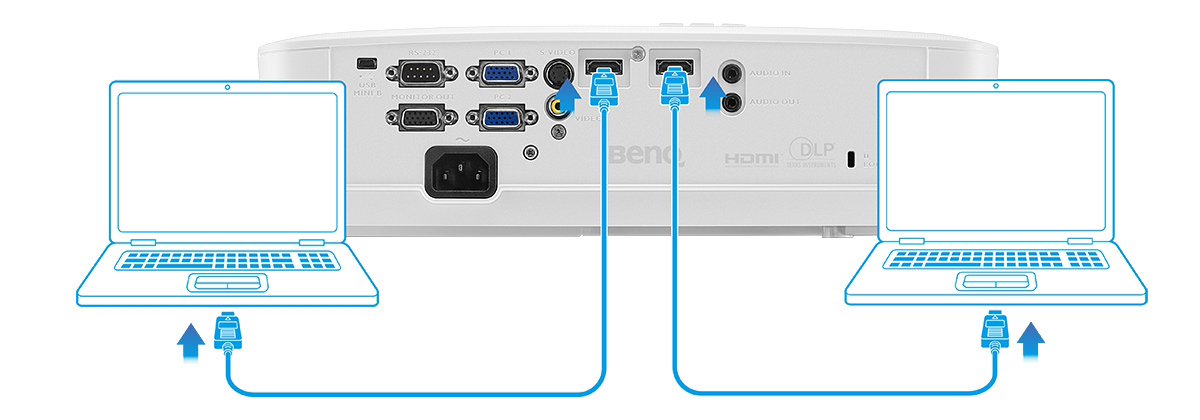

Universal Multi HDMI & VGA Connectivity

Dual HDMI inputs in addition to dual VGA inputs are purpose-engineered to host multiple presenters and their laptop or mobile devices without taking time to take turns. Multiple inputs enable meeting participants to collaborate instantly without complicated adapters or time-consuming IT support.

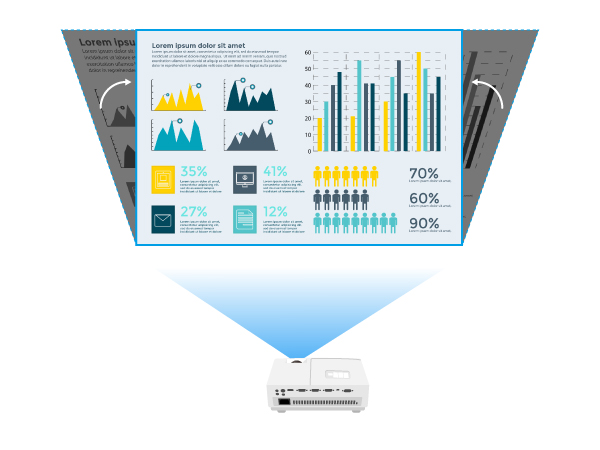

Vertical Keystone for Perfect Alignment

Countering the trapezoid effect when the projector must be placed off-center, such as simple placement on top of a table, vertical keystone function adjusts the image for a professionally squared image. Keystone correction makes it easy to project ideally aligned images from a variety of locations.

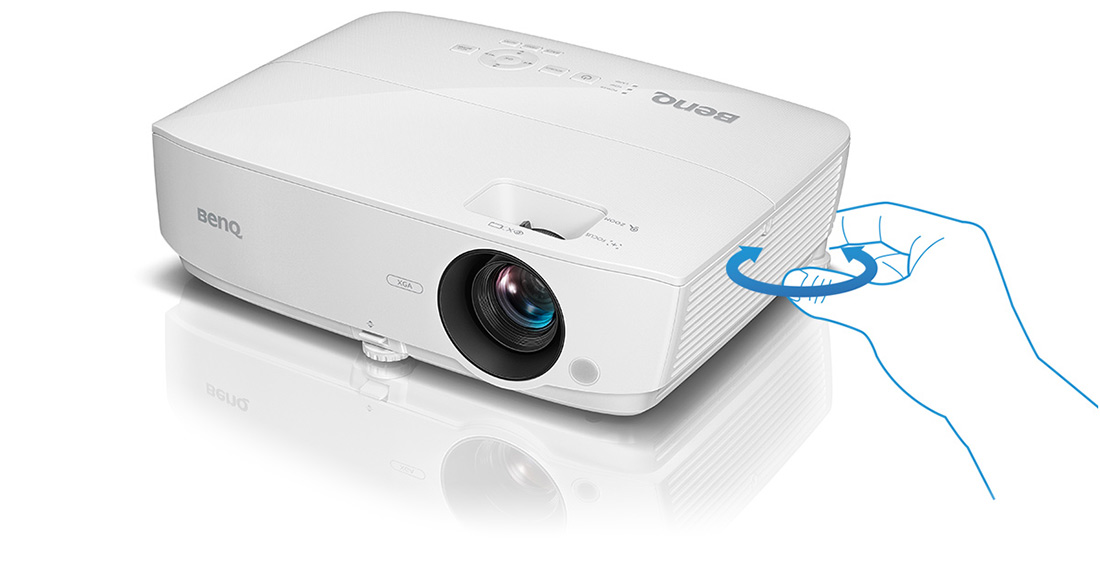

Convenient Outer Adjustment Feet

Far superior to projectors with only one adjustment foot, the triple adjustment feet significantly enhance flexibility in a wide variety of meeting rooms, with the additional feet placed at the corners or the projector to facilitate easy movement to quickly start perfect presentations regardless of projector placement.

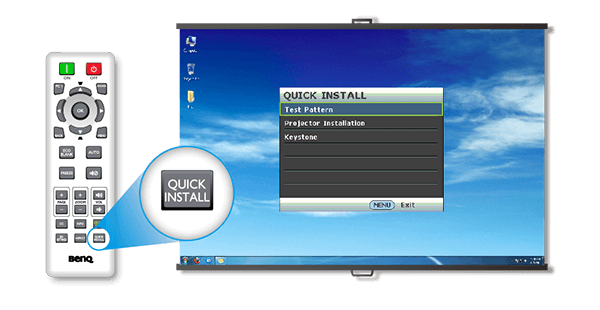

One-Touch Access to Install Functions

Thoughtfully redesigned, the new remote control includes a dedicated Quick Install button, which instantly accesses installation-friendly functions such as Test Pattern and Keystone directly without selecting nested menus in the On-Screen Display.

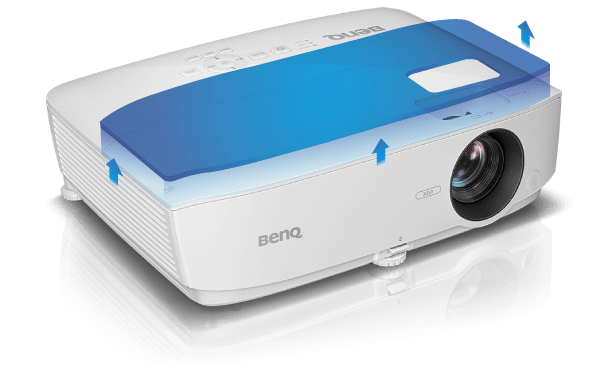

Easy-Access Top Door for Lamp Changes

Conveniently placed on top, an easy-to-open lamp door allows fast lamp access, maintenance, and replacement for uninterrupted productivity when the projector is ceiling mounted in meeting rooms. The quick-access lamp door significantly reduces downtime by eliminating the need to uninstall mounted projectors, making lamp changes fast and simple.

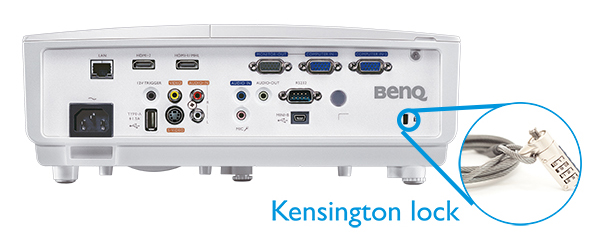

Kensington Lock to Discourage Theft

Designed for businesses to secure tabletop projectors, the Kensington lock interface provides “physical” security to meeting room projectors. BenQ business projectors are each built with a security bar to deter opportunistic thieves.

Power Saving, Eco Friendly Optimization

The BenQ Eco Cycle System eliminates electricity waste, reduces power-up wait time before and after meetings and minimizes maintenance for lower total cost of ownership.

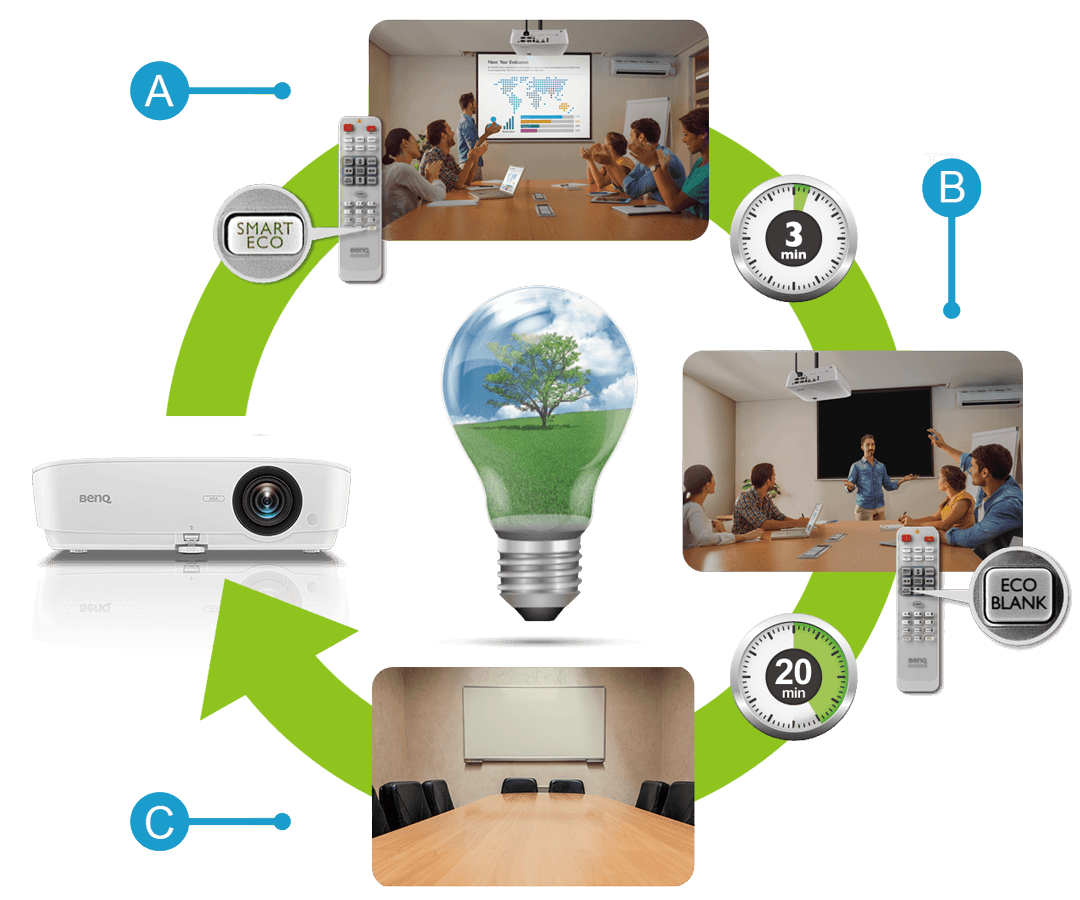

Eco Cycle System

A. SmartEco™ Mode: SmartEco™ Mode analyzes input content to determine the brightness required for optimal color and contrast performance, conserving up to 70% lamp power while delivering the finest image quality without compromise.

B. Eco Blank Mode: When the projector detects no source content, Eco Blank Mode automatically actives after 3 minutes of inactivity to eliminate distractions and save energy.

C. Auto Power Off: BenQ business projectors power down after 20 minutes of inactivity to eliminate energy waste and concerns for teachers of leaving the equipment on.

Quick Tips: Eco Blank Mode and SmartEco Mode can be activated directly using the remote control.


0.5W in Standby Mode

When inactive, BenQ business projectors keep power consumption to a minimum with 0.5W standby power, maximizing energy savings when the projector is connected but not in use.

Ürün özellikleri

Projektör

Ekran boyutu uyumluluğu

The different screen sizes which the device can work with.

762 - 7620 mm (30 - 300")

Kontrast oranı (dinamik)

A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.

15000:1

Projektör parlaklığı

3600 ANSI lumens

Projeksiyon teknolojisi

DLP

Projektörün ana çözünürlüğü

XGA (1024x768)

Yerel açı oranı

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.

4:3

Renk sayısı

1.073 milyar renk

Yatay tarama aralığı

15 - 102 kHz

Dikey tarama alanı

23 - 120 Hz

Kilit taşı düzeltme, dikey

-40 - 40°

Işık kaynağı

Işık kaynağı türü

lamba

Işık kaynağının hizmet ömrü

5000 Saat

Işık kaynağının hizmet ömrü (ekonomik mod)

10000 Saat

Lamba gücü

203 W

Lamba sayısı

The number of lamps in/with the product.

1 lambalar

Lens sistemi

Yakınlaştırma yeteneği

The amount that the camera lens can zoom.

Zum oranı

Measures how much the camera can adjust its focus for distance shots. A 3x zoom ratio changes the camera's focal length by a factor of three, from 35 mm to 105 mm for example.

1,2:1

Fırlatım oranı

1.94 - 2.32:1

Sapma

106%

Video

Analog sinyal formatı sistemi

The supported protocols for exchanging analog signals.

NTSC,PAL,SECAM

Blade length

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

640 x 480 (VGA),1024 x 768 (XGA),1920 x 1200 (WUXGA)

Desteklenen video modları

The video modes that can be displayed by the device.

480i,480p,576i,576p,720p,1080i,1080p

Bağlantı

HDMI konnektör tipi

Tam boy

HDMI versiyonu

1.4a

S-video girişi

The number of ports (input sockets) for S-Video, which is a signalling standard for standard definition video, typically 480i or 576i.

1

Mini USB 2.0 bağlantı noktası sayısı

1

SCSI arabirimi

RS-232

PC Audio dahil

The socket (port) for the PC audio input.

PC Audio out

VGA (D-Sub) bağlantı noktası sayısı

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

3

HDMI port sayısı

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2

Birleşik video içinde

The socket (port) for the composite video input (white cable).

1

DVI bağlantı noktası

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.

AC (güç) dahili

Ağ Bağlantıları

Smart TV

Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.

Ethernet LAN bağlantısı

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Ağ Bağlantıları

Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Depolama birimi

Entegre kart okuyucu

The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.

Özellikler

Gürültü seviyesi (ekonomik mod)

29 dB

Ekran üstü görüntüleme (OSD)

OSD dilleri sayısı

28

Gürültü seviyesi

The amplitude level of the undesired background noise, usually measured in decibels (db).

32 dB

Multimedya

Gömme hoparlörler

The device contains speaker(s) to produce sound.

RMS dereceli güç

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

2 W

Dahili hoparlör sayısı

1

Tasarım

Pazar konumlandırması

Under which category can the device be positioned in the market, e.g. camera phone.

Bussines

Ürün tipi

The sub-category of the product.

Masaüstü projektörü

Ürün rengi

The colour e.g. red, blue, green, black, white.

Beyaz

Tavan montajı desteklenir

Kablo kilit yuvası

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Kablo kilit yuvası türü

Kensington

Ekran

Dahili ekran

A display which is part of the product, so you do not need to attach another display.

Enerji yönetimi

Güç kaynağı

What is providing power for the product e.g. mains electricity.

AC

Güç tüketimi

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

252 W

Güç tüketimi, etkin

The amount of electricity that is consumed when the product is on standby.

0,5 W

AC girdi voltajı

The voltage of the AC electricity that is inputted into the product.

100-240 V

AC girdi frekansı

50 - 60 Hz

Çevresel koşullar

Çalışma ısısı aralığı

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C

Ağırlık & boyutlar

Genişlik

The measurement or extent of something from side to side.

332,4 mm

Derinlik

The distance from the front to the back of something.

241,3 mm

Yükseklik

The measurement of the product from head to foot or from base to top.

99 mm

Ağırlık

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2,38 kg

Paket içeriği

Uzaktan kumanda

Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Piller dahil

Pakete dahil kablolar

AC, VGA

Hızlı başlangıç rehberi

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Kullanım kılavuzu

Garanti kartı

Diğer özellikler

RS-232 port

The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.

1

EAN Numarası: 4718755075698
