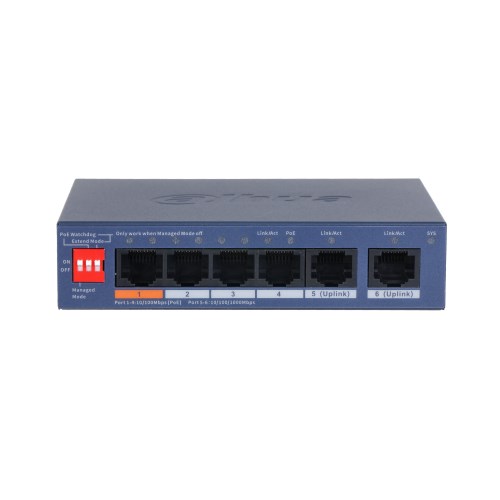

Dahua CS4006-4ET2GT-60 6 Port Cloud Managed Switch

Basic:

Layer

Layer 2

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Description of Function Slots

Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External power supply: 53 VDC, 1.22 A

Power Consumption

Idling: ≤3 W
Full load: 65 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV

Net Weight

0.2 kg (0.44 lb)

Gross Weight

0.76 kg (1.68 lb)

Product Dimensions

115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)

Packaging Dimensions

195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

PoE:

PoE

Yes

PoE Power

Port 2-4≤30 W, port 1≤60 W, total≤60 W

PoE Protocol

IEEE802.3af ; IEEE802.3at ; Hi-PoE

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment

1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）

Long Distance PoE Transmission

Yes

Hardware:

DIP Switch

Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button

1

Performance:

MTBF

232.62 years

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

2K

Communication Standard

IEEE 802.3;
IEEE 802.3u;
IEEE 802.3x;
IEEE 802.3ab;
IEEE 802.3az

VLAN Number

32

Feature:

VLAN Function

IEEE 802.1Q VLAN

Port Feature

IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention

Mirror

N:1 Mirroring;
Local Port Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management
Cloud Management
Logs
Fault Alarm
