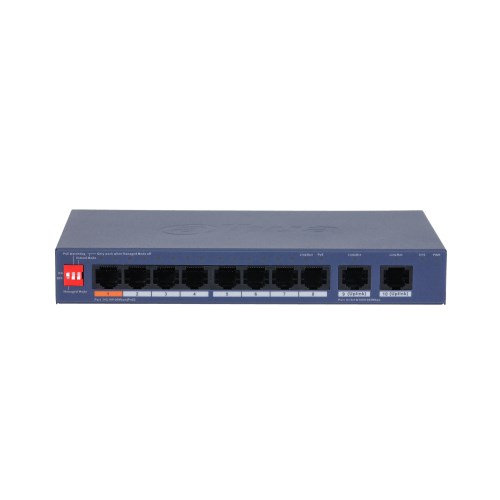

Dahua CS4010-8ET2GT-60 10 Port Cloud Managed Switch

Basic:

Layer

Layer 2

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.17 Mpps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External Power Adapter (53 V, 1.22 A)

Power Consumption

Idling: 4 W
Full load: 63 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV
Differential mode: 1 kV

Net Weight

0.36 kg (0.79 lb)

Gross Weight

0.92 kg (2.03 lb)

Product Dimensions

184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)

Packaging Dimensions

252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

Certifications

CE

PoE:

PoE

Yes

PoE Power

Port 2-8≤30 W, port 1≤60 W, total≤60 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected

PoE Pin Assignment

1,2, (V+), 3 ,6, (V-)

Long Distance PoE Transmission

Yes

Hardware:

DIP Switch

Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button

1

Performance:

MTBF

2,837,361 hours

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az

VLAN Number

32

Feature:

VLAN Function

IEEE 802.1Q VLAN

Port Feature

IEEE 802.3x Flow Control

Unknown Unicast Suppression

Multicast Storm Control

Broadcast Storm Control

MAC+Port Binding

Loop Prevention

Mirror

Local Port Mirroring
N:1 Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management

Cloud Management

Logs

Fault Alarm
