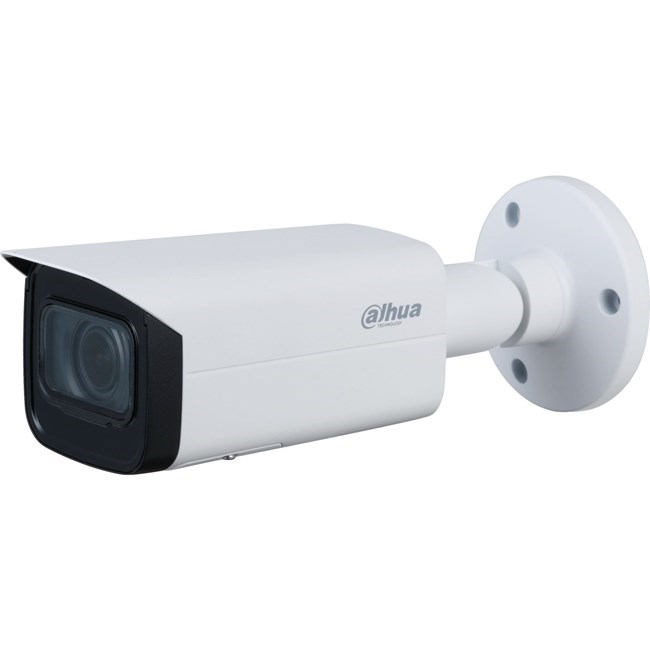

Dahua IPC-HFW1230T-ZS-S5 2MP IR Vari-focal Bullet Network Kamera

· 2MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
· Outputs max. 2MP (1920 × 1080)@25/30 fps.
· H.265 codec, high compression rate, ultra-low bit rate.
· Built-in IR LED, and the max. illumination distance is 50 m.
· ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
· Abnormality detection: Motion detection, privacy masking, no SD card,
 SD card full, SD card error, network disconnection, IP conflict, and illegal access.
· Supports max. 256 GB SD card.
· 12V DC/PoE power supply.
· IP67 protection.

Camera

Image Sensor 1/2.8" CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 16 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.008 [email protected] (Color, 30 IRE)
0.0008 [email protected] (B/W, 30 IRE)
0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 50 m (164.04 ft) (IR)
Illuminator On/Off Control Auto; Manual
Illuminator Number 2 (IR)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.8 mm–12 mm
Max. Aperture F1.7
Field of View Horizontal: 101°–33.5°; Vertical: 52.5°–19°;
Diagonal: 125°–38.5°
Iris Control Fixed
Close Focus Distance 0.8 m (2.6 lb)


Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the
sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate
Main stream:1920 × 1080@1–25/30 fps
Sub stream: 704 × 576@1–25 fps/704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for
multiple streams, the values will be subjected to the total encoding
capacity.
Stream Capability 2 streams
Resolution
1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W

BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional
custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p
resolution and lower)
Mirror Yes
Privacy Masking 4 areas

Alarm
Alarm Event
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; security exception; defocus detection

Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security
Video encryption; configuration encryption; Digest;
WSSE; account lockout; security logs; generation and
importing of X.509 certification; HTTPS; trusted boot;
trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP;
FTP; DHCP; DNS; NTP; Multicast; DDNS
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6
Storage FTP; Micro SD card (Support max. 256 G)
Browser
IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android

Certification
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B


Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption
Basic: 1.8W (12 V DC); 2.3W (PoE)
Max. (H.265 + ICR + IR intensity): 4.3 W (12V DC); 5.5 W (PoE)

EAN Numarası: 6923172510990
