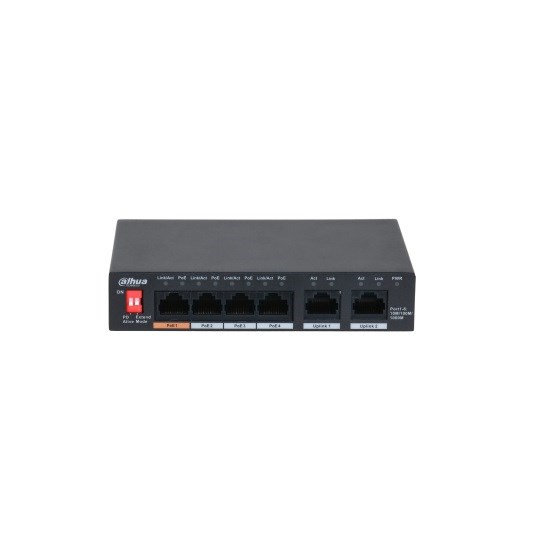

Dahua PFS3006-4GT-60-V2 6 Port 10/100/1000M 4 Port Gigabit POE Desktop Switch

Hardware Feature

Ethernet Port

Port1-4: 4 × RJ-45 10/100/1000M (PoE)

Port5-6: 2 × RJ-45 10/100/1000M (uplink)

PoE Power Consumption

Port1≤ 60 W (Hi-PoE)

Port2-4 ≤30 W

Total≤60 W

Power Consumption

Idling: 0.96 W

Full load: 60 W

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

PoE

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE

Power Supply Pin

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

14 Gbps

Packet Forwarding Rate

8.928 Mbps

Packet Buffer Memory

1 Mbit

MAC Address Table

2 K

Flow Control

Enable by default

Working Temperature

–10 °C to 55 °C (+14°F to +131°F)

Application Humidity

5%–95% (RH)

General

Power Input

48 V - 57 V DC

Lighting Protection

Common mode: 4 kV

Differential mode: 2 kV

ESD Protection

Air discharge: 8 kV

Contact discharge: 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.30 kg (0.64 lb)

Dimension

130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
