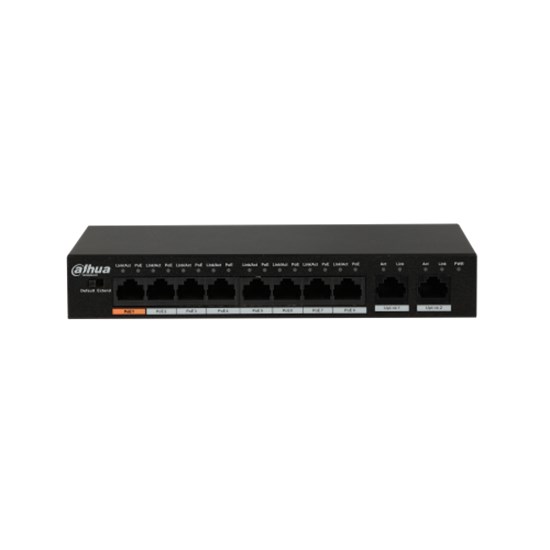

Dahua PFS3010-8GT-96 8 Port PoE Gigabit Switch

DH-PFS3010-8GT-9610-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE
· Support eight 10/100/1000Mbps PoE Ethernet ports, and two
  10/100/1000Mbps Ethernet ports
· Operating Temperature: –10°C to + 55°C
· PoE Power Requirement: 48V DC–57V DC Input
Desktop PoE Switch | DH-PFS3010-8GT-96
 System Overview
The 8-port PoE gigabit switch is a gigabit access switch that supports
scenarios with 1 to 8 IPC and is widely used in supermarkets, hospitals
and stations.The 8-port PoE gigabit switch supports 8 gigabit PoE ports,
2 gigabit uplink Ethernet ports. The power consumption of full load is

96W.
 Scene
Serve as the access switch in the security surveillance systems at

supermarkets, hospitals and stations.
 Functions
Various Ports

Eight 10/100/1000 Mbps Base-TX PoE ports
Two 10/100/1000 Mbps Base-TX uplink Ethernet ports
Various Mount Type
Support desk mount and wall mount

Technical Specification
Service Port Eight 10/100/1000Mbps Base-TX PoE Ethernet ports
Two 10/100/1000Mbps Base-TX Ethernet ports
Power Supply 48V DC–57V DC
Operating Temperature –10°C to + 55°C (–14°F to 131°F)
Operating Humidity 10%–90%
Power Consumption Idling: 5W
Full load: 96W
PoE Budget Port 1 ≤ 60W, Port 2–8 ≤ 30W, whole PoE budget ≤ 96W
PoE Standard IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Pin Assignment PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Table Size 4K
Jumbo Frame 9216 bytes
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
ESD Air discharge: 8kV

Contact discharge: 6kV
Thunderproof Common mode: 6kV
Differential mode: 4kV
Net Weight 0.50 kg (1.1 lb)
Gross Weight 1.32 kg (2.91 lb)
Product Dimensions 190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")(W

× L × H)
Packaging Dimensions
Packing box: 303 mm × 262 mm × 72 mm (11.92"" ×
10.31"" × 2.83"")

Protective box: 549 mm × 325 mm × 397 mm (21.61"" ×
12.80"" × 15.63"")(W × L × H)
Package 10 devices in one package
Certifications CE: EN60950
FCC

EAN Numarası: 6939554950001
