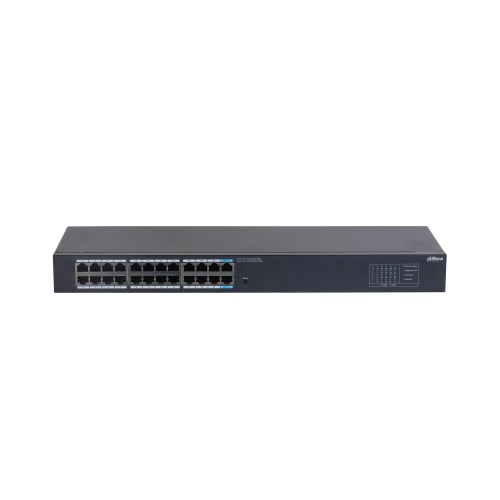

Dahua SG1024 24 Port Yönetilemez Switch

Hardware

Included Power Adapter

Yes

Ethernet Port

24

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1-22: 22 × RJ-45 10/100/1000 Mbps;

Port 23-24：2 × RJ-45 10/100/1000 Mbps(Uplink)

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, max 0.7 A

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Power Consumption

Idling: 7.5 W;

Full load: 11.0 W

Storage Humidity

10%–90% (RH), non-condensing

Basic

Operating Humidity

10% –90% (RH), non-condensing

Performance

Management Type

No

Switching Capacity

48 Gbps

Packet Forwarding Rate

35.71 Mpps

Packet Buffer Size

4 Mbit

Jumbo Frame

15K Byte

MAC Table Size

8K

Communication Standard

IEEE802.3; IEEE802.3ab; IEEE802.3u; IEEE802.3X

Feature

Link Aggregation

Yes

General

Statics Protection

Air discharge: 8 kV;

Contact discharge: 6 kV

Lightning Protection

Common mode: 2 kV;

Differential mode: 0.5 kV

Net Weight

1.72 kg (3.79 lb)

Gross Weight

2.63 kg (5.80 lb)

Product Dimensions

440 mm × 155 mm × 43.7 mm (17.32" × 6.10" × 1.72") (L × W × H)

Packaging Dimensions

523 mm × 273 mm × 109 mm (20.59" × 10.75" × 4.29") (L × W × H)

Casing Material

Iron

Installation

Desktop mount; rack mount

Certifications

CE
