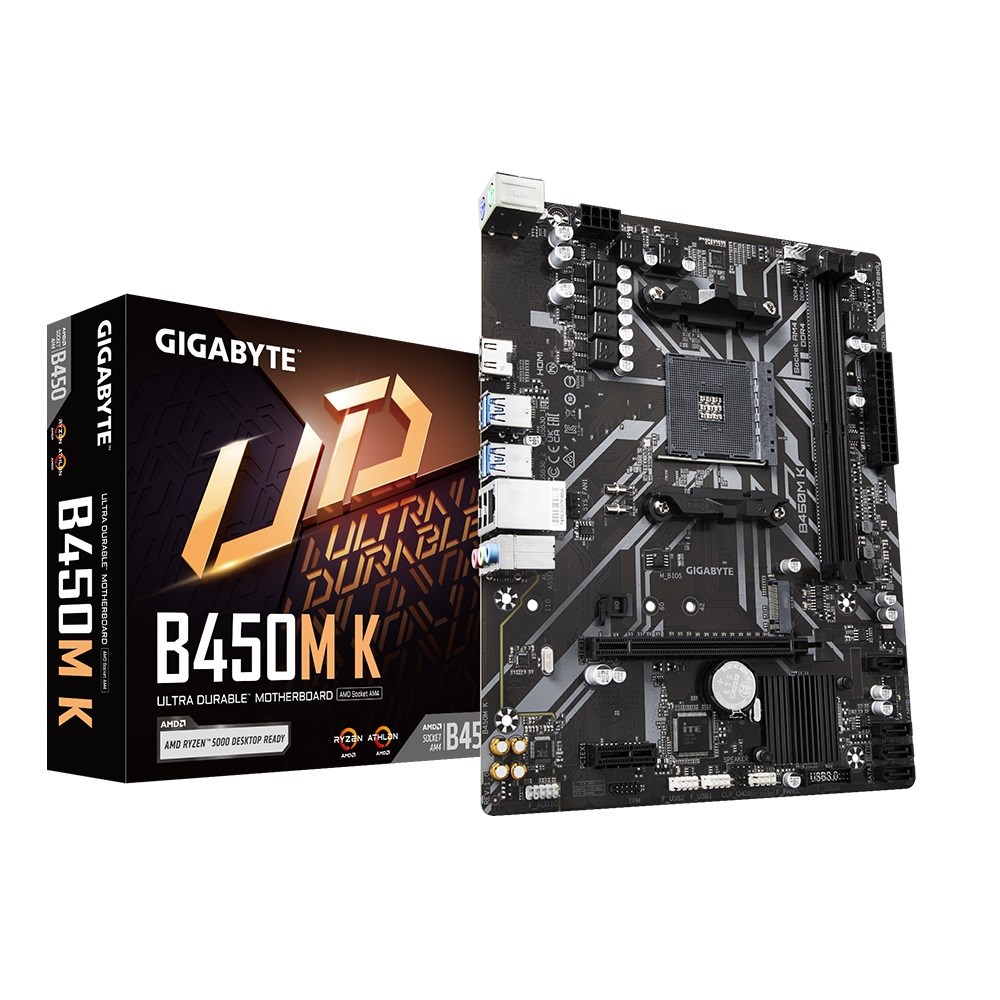

GIGABYTE B450M K DDR4 SOKET AM4 HDMI M.2 mATX Anakart

CPU:

(Please refer "CPU Support List" for more information.)

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 1st Generation AMD Ryzen™ processors/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics processors/ 1st Generation Ryzen™ with Radeon™ Vega Graphics processors/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset:

AMD B450

Memory:

(Please refer "Memory Support List" for more information.)

Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.

Maximum shared memory of 16 GB

Audio:

Realtek^® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN:

Realtek^® GbE LAN chip (1 Gbps/ 100 Mbps)

Expansion Slots:

CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16*
* Actual support may vary by CPU.

Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1

Storage Interface:

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

(Note) Supports only M.2 SATA SSDs when using an Athlon™ with Radeon™ Vega Graphics Processors.

1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2^(Note) SSD support)
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector.

4 x SATA 6Gb/s connectors

USB:

Chipset: CPU:

2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x speaker header

1 x Clear CMOS jumper

1 x chassis intrusion header

Back Panel Connectors:

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x HDMI 2.0 port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller:

iTE^® I/O Controller Chip

H/W Monitoring:

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer

Support for Q-Flash

Support for Xpress Install

Bundled Software:

Norton^® Internet Security (OEM version)

LAN bandwidth management software

Operating System:

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Support for Windows 7 64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor:

Micro ATX Form Factor; 24.4cm x 19.5cm
