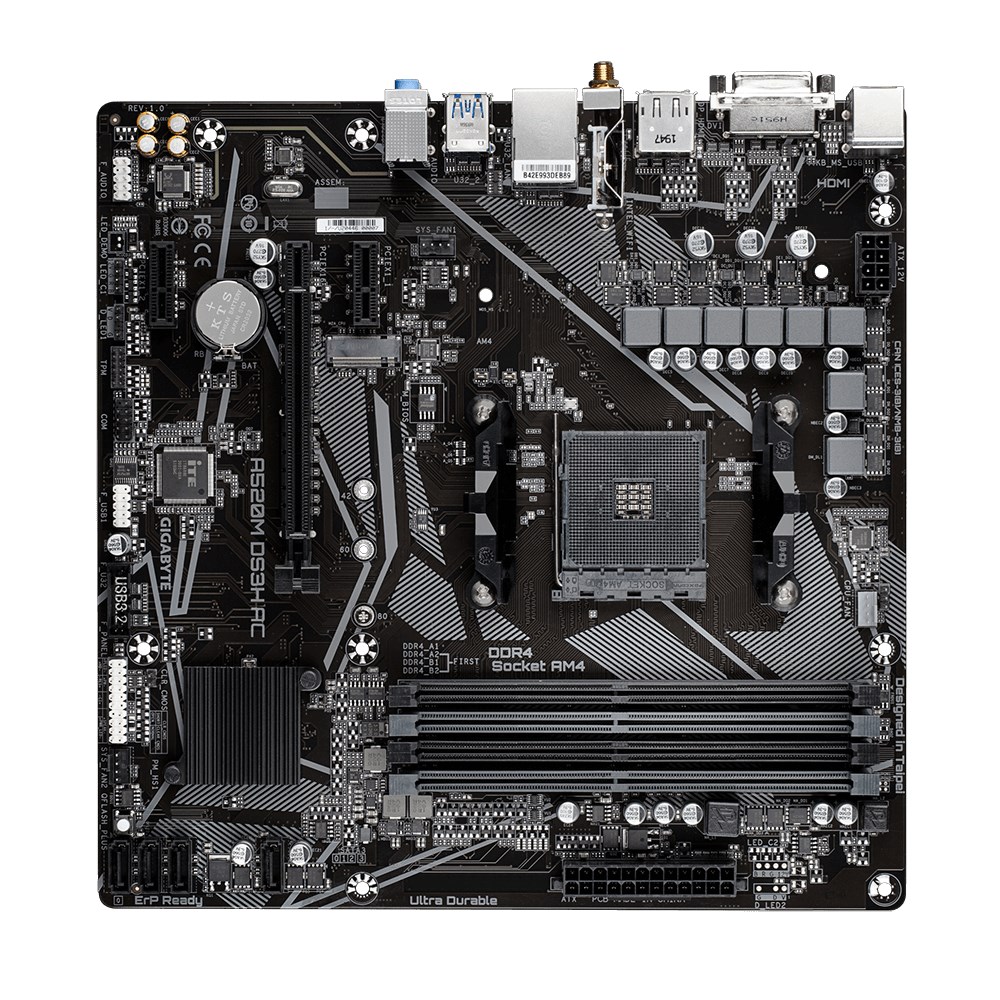

Gigabyte A520M DS3H AC DDR4 AMD A520 Soket AM4 Micro ATX Anakart

CPU:

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors

Chipset:

AMD A520

Memory:

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Onboard Graphics:

Integrated Graphics Processor

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

Realtek^® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN:

Realtek^® GbE LAN chip (1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

2 x SMA antenna connectors (1T1R)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Form Factor:

Micro ATX Form Factor; 24.4cm x 24.4cm

EAN Numarası: 4719331810696
