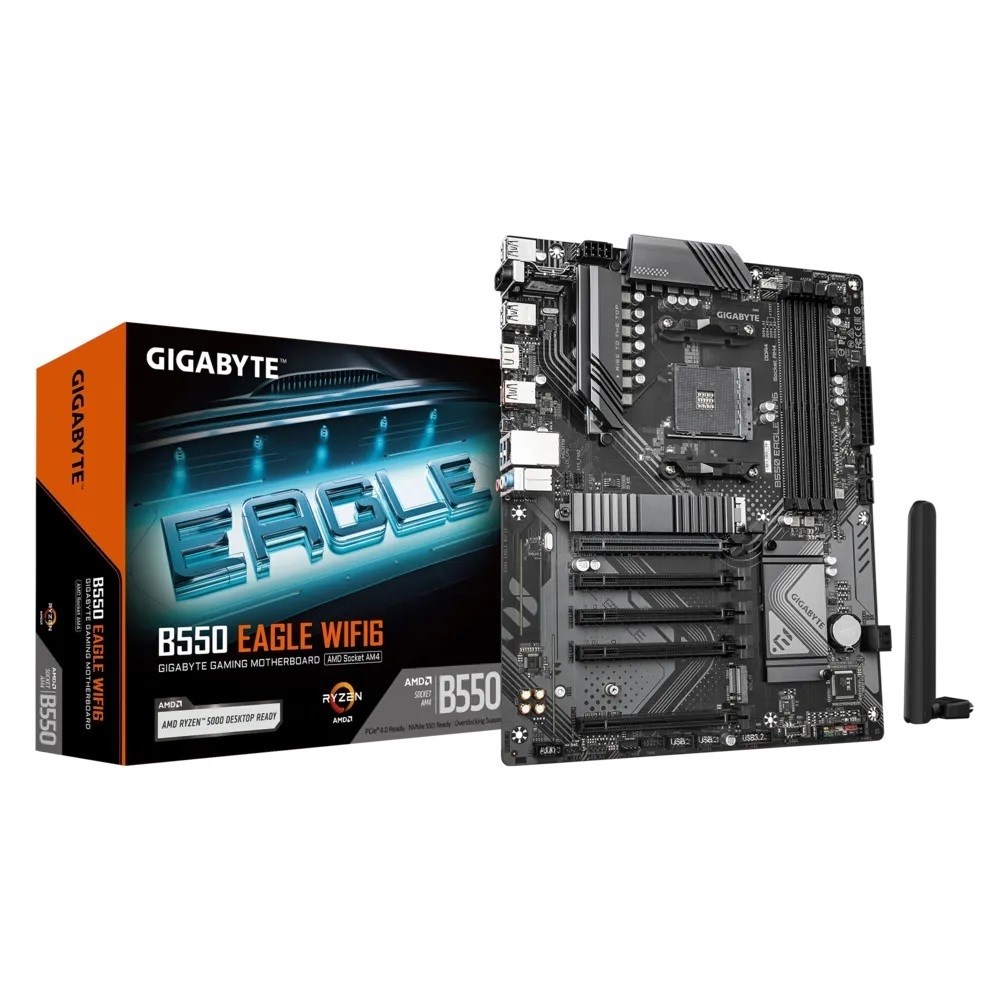

Gigabyte B550 EAGLE WIFI6 DDR4 AMD B550 Soket AM4 ATX Anakart

CPU:

AMD Socket AM4

Chipset:

AMD B550

Memory:

4 x DDR4 DIMM sockets supporting up to 128 GB

Onboard Graphics:

Integrated Graphics Processor with AMD Radeon™ Graphics support

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN:

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Back Panel Connectors:

4 x USB 2.0/1.1 ports
2 x antenna connectors (1T1R)
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x Q-Flash Plus button
1 x RJ-45 port
2 x USB 3.2 Gen 1 ports
3 x audio jacks

I/O Controller:

iTE® I/O Controller Chip

BIOS:

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

ATX Form Factor; 30.5cm x 24.4cm

EAN Numarası: 4719331868406
