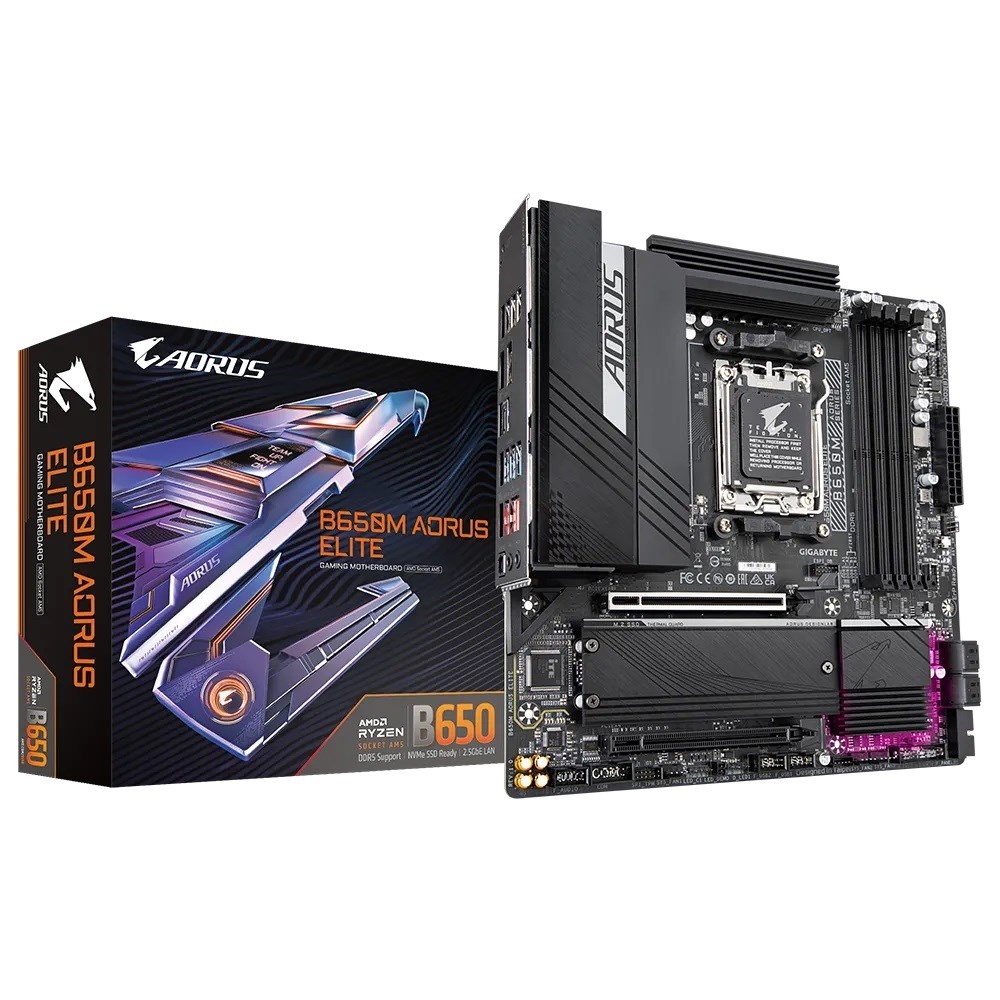

Gigabyte B650M AORUS ELITE DDR5 AMD B650 Soket AM5 Micro ATX Anakart

CPU:

AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset:

AMD B650

Memory:

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

Realtek^® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN:

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x THB_U4 add-in card connector

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors:

1 x Q-Flash Plus button

1 x DisplayPort

1 x HDMI port

1 x USB Type-C^® port, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 2 Type-A ports (red)

5 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

Form Factor:

Micro ATX Form Factor; 24.4cm x 24.4cm
