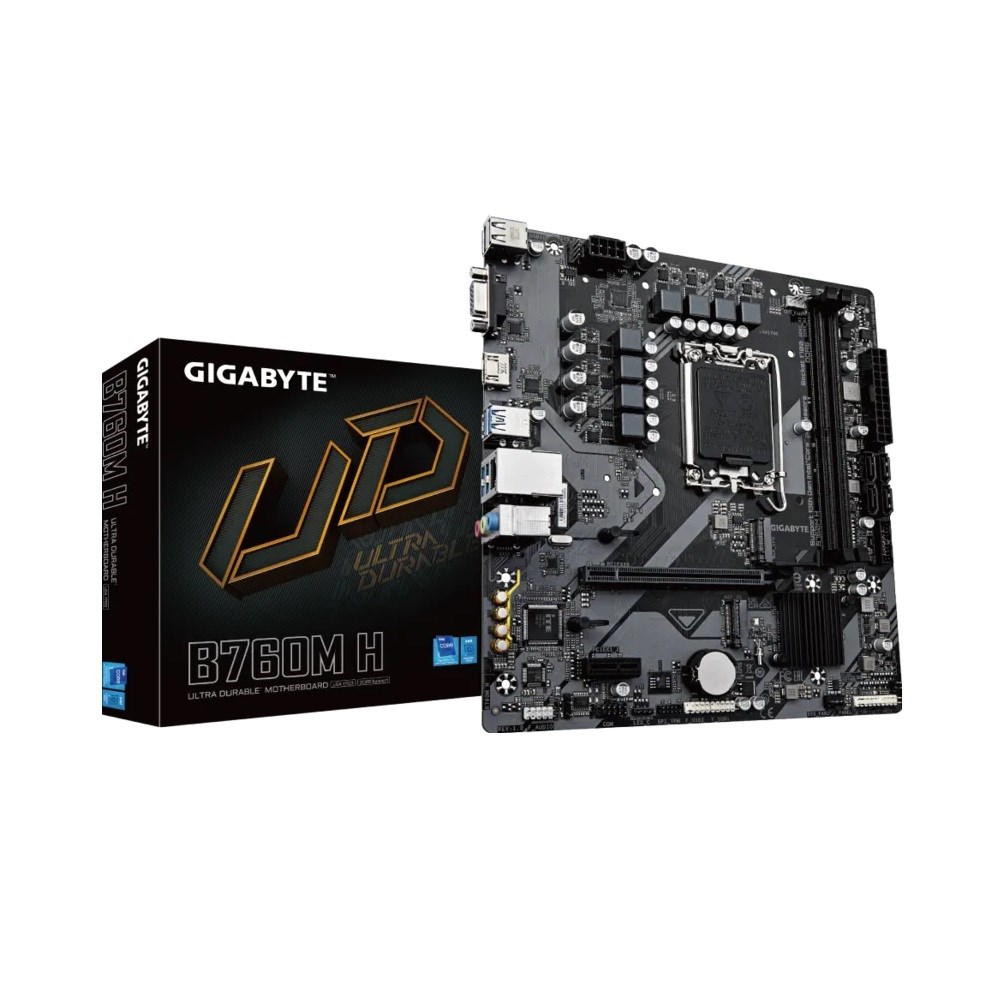

Gigabyte B760M H DDR5 Intel B760 Soket 1700 Micro ATX Anakart

CPU:

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors

Chipset:

Intel ® B760 Express Chipset

Memory:

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics:

Integrated Graphics Processor-Intel® HD Graphics support

Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN:

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors:

2 x USB 2.0/1.1 ports
1 x D-Sub port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

Form Factor:

Micro ATX Form Factor; 23.0cm x 21.5cm

EAN Numarası: 4719331878054
