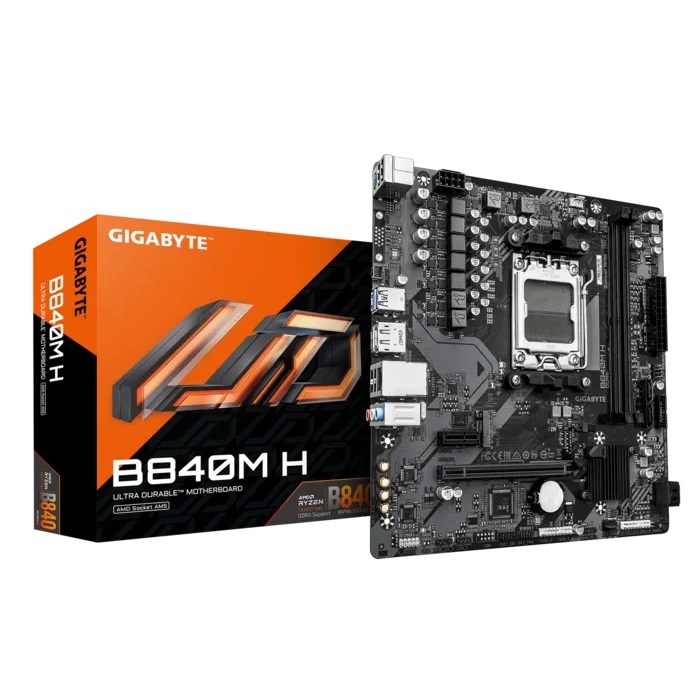

Gigabyte B840M H DDR5 AMD B840 Soket AM5 Micro ATX Anakart

İşlemci:

AMD Socket AM5

Yongaseti:

AMD B840

Bellek:

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dahili Grafik:

Integrated Graphics Processor with AMD Radeon™ Graphics support

Ses Desteği:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Dahili G/Ç Bağlantı Noktaları:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper

Arka Panel G/Ç:

4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

G/Ç Denetleyicisi:

iTE® I/O Controller Chip

BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Faktör:

Micro ATX Form Factor; 23.0cm x 22.5cm

EAN Numarası: 4719331877880
