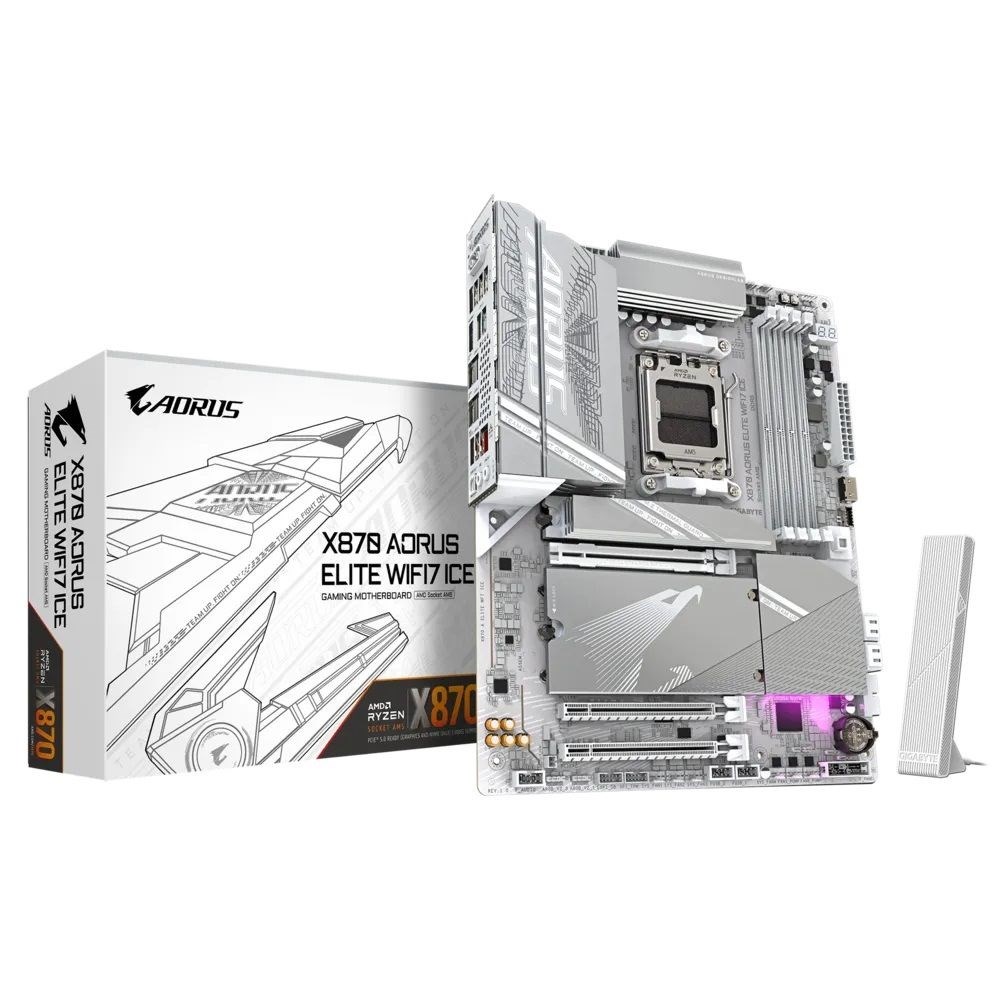

Gigabyte X870 AORUS ELITE WIFI7 ICE DDR5 AMD X870 Soket AM5 ATX Anakart

CPU:

AMD Socket AM5

Chipset:

AMD X870

Memory:

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics:

2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

LAN:

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors:

1 x Q-Flash Plus button
1 x HDMI port
2 x antenna connectors (2T2R)
2 x USB4® USB Type-C® ports (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller:

iTE® I/O Controller Chip

Form Factor:

ATX Form Factor; 30.5cm x 24.4cm
