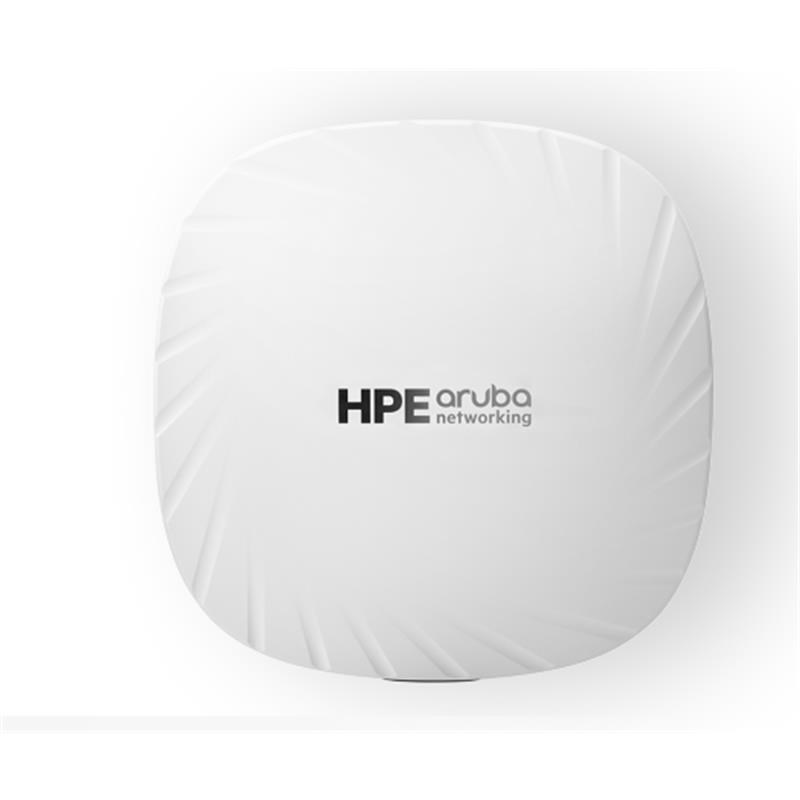

HPE ARUBA AP-535 (RW) JZ336A İÇ ORTAM ACCESS POINT (ADAPTÖRSÜZ)

DeploymentIndoor

Wi-Fi generationWi-Fi 6 (802.11ax)

Wi-Fi radiosDual 4x4

Radio configuration options2.4 GHz and 5 GHz

Max bandwidths and peak data rate per band20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), and maximum peak data rate 2.9 Gbps

Wi-Fi antennaFour integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5 dBi in 2.4 GHz and 5.4 dBi in 5 GHz.

Ultra tri-band (UTB) filteringNo

IoT supportIEEE 802.15.4/Zigbee or Bluetooth 5.0, USB 2.0 Type A

Integrated sensorNo

Location services802.11 FTM support

Cellular supportUSB LTE modem (sold separately)

Wired network interface2 x 5GbE

MACsec supportNo

PortsE0, E1: Ethernet port (RJ-45)
Serial console interface (proprietary, micro-B USB physical jack)
USB 2.0 host interface (Type A connector)
Kensington security slot

Power sourcesDC power; PoE-PD

AP operating system supportHPE Aruba Networking Wireless Operating System 8.5.0.0*
HPE Aruba Networking Instant OS 8.5.0.0*
HPE Aruba Networking Wireless Operating System 10.0.0.0 or later.
Note: *With some restrictions. For unrestricted operation, use 8.6.0.0 or later.

AP managementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service

CertificationsUL2043 plenum rating
Wi‑Fi Alliance®:
Wi-Fi CERTIFIED® a, b, g, n, ac
Wi-Fi CERTIFIED 6 (ax)
WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
WMM, WMM-PS, Wi-Fi Agile Multiband
Wi-Fi CERTIFIED Location
Bluetooth Special Interest Group (SIG)

RegulatoryFCC/ISED
CE marked
Radio Equipment Directive (RED) Directive 2014/53/EU
Electromagnetic compatibility (EMC) Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
UL/IEC/EN 62368-1
EN 60601-1-1, EN60601-1-2
Railway certs (AP-535 Only):
EN 50155:2017—Railway applications
EN 50121-1:2017—Railway EMC
EN 50121-3-2—Railway EMC
EN 50121-4:2016—Railway immunity
IEC 61373 ed2:2008—Railway shock and vibration.
For more country-specific regulatory information and approvals, contact your HPE representative.

EAN Numarası: 190017232751
