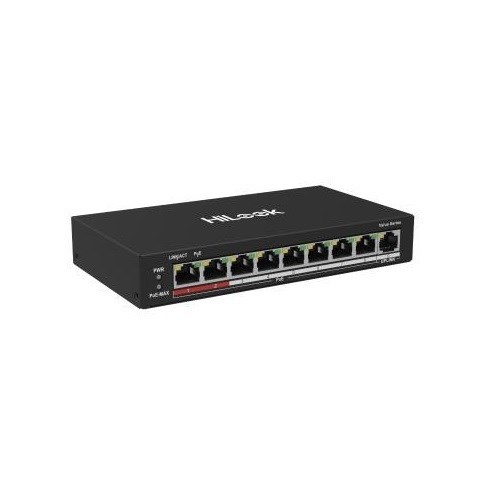

HiLook NS-0109P-60(B) 8 Port Yönetilemez POE Switch

Shell: Metal material, fan-free design

Operating temperature: -10 °C to 55 °C (14 °F to 131 °F)

Storage temperature: -40 °C to 85 °C (-40 °F to 185 °F)

Power supply: 48 VDC, 1.35 A

Storage humidity: 5% to 95% (no condensation)

Net weight: 0.35 kg (0.77 lb)

Gross weight: 0.89 kg (1.96 lb)

Dimension (L × H × D): 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)

Operating humidity: 5% to 95% (no condensation)

Power consumption in idle: 5 W

Port number: 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port

Port type: RJ45 port, full duplex, MDI/MDI-X adaptive

Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding mode: Store-and-forward switching

Working mode: Standard mode (default); Extend mode

MAC address table: 2 K

Switching capacity: 1.8 Gbps

Packet forwarding rate: 1.339 Mpps

Internal cache: 1 Mbits

High priority ports: Ports 1 to 2

Ports for long-distance transmission: Ports 1 to 8

PoE standard: IEEE 802.3af, IEEE 802.3at

PoE power pin: Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply

PoE port: Ports 1 to 8

Max. port power: 30 W

PoE power budget: 60 W

Max. power consumption: 65 W

EAN Numarası: 06941264028284
