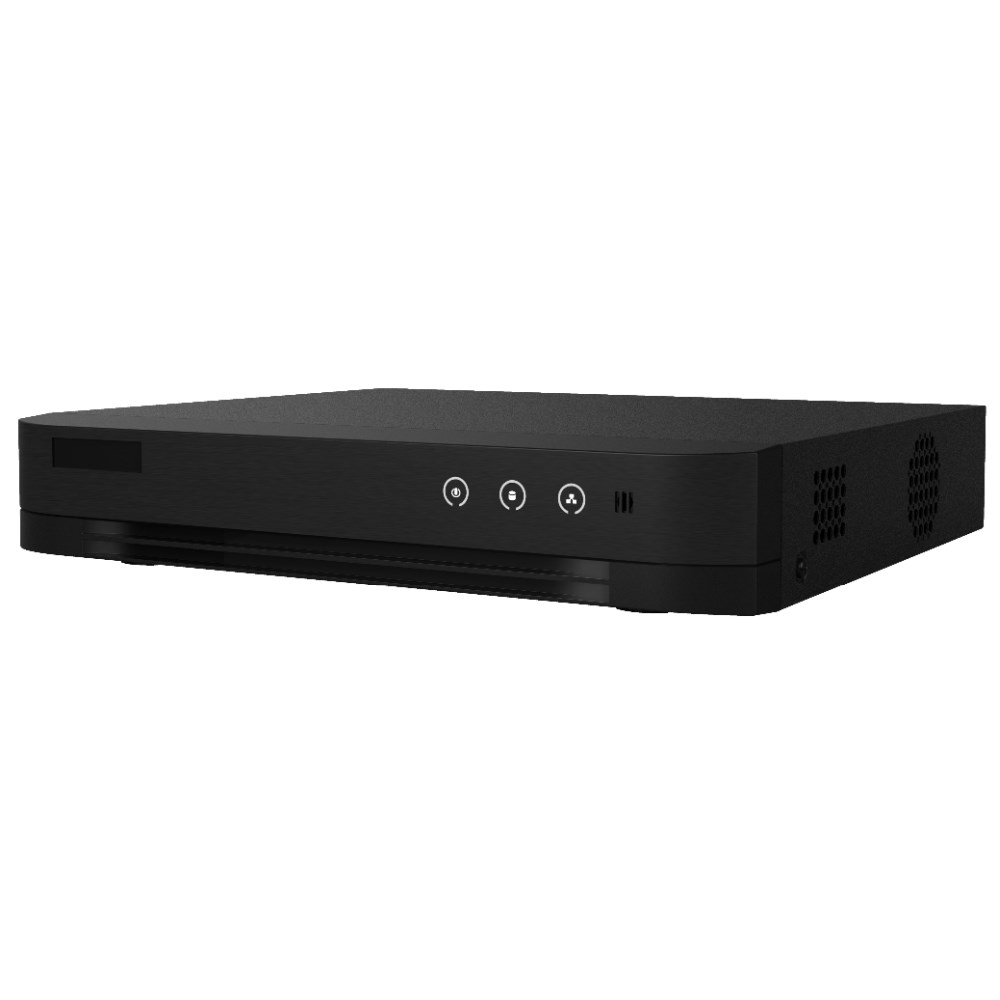

Hikvision DS-7208HUHI-K1/E 8 Kanal DVR Kayıt Cihazı

Encoding Resolution:
When 8 MP Lite mode is not enabled:
8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
When 8 MP Lite mode is enabled:
8 MP Lite/5 MP/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF

Video Bit Rate:
32 Kbps to 10 Mbps

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Dual Stream:
Support

Stream Type:
Video, Video & Audio

Audio Compression:
G.711u

Audio Bit Rate:
64 Kbps

Audio Input:
1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable

Audio Output:
1-ch, RCA (Linear, 1 KΩ)

Synchronous Playback:
8-ch

IP Video Input:
4-ch (up to 12-ch)

HDTVI Input:
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

HDCVI Input:
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input:
PAL/NTSC

Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Analog Video Input:
8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input:
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Output:
N/A

HDMI/VGA Output:
HDMI:1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network Protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connections:
64

Network Interface:
1, RJ45 10M/100M self-adaptive Ethernet interface

Capacity:
Up to 10 TB capacity for each disk

Serial Interface:
N/A

USB Interface:
2 × USB 2.0

Alarm In/Out:
N/A

SATA:
1 SATA interface

Consumption(Without HDD):
≤ 8 W

Working Humidity:
10% to 90%

Power Supply:
12 VDC

Working Temperature:
-10 °C to +55 °C (+14 °F to +131 °F)

Dimensions(W × D × H):
265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weights (Without HDD):
≤ 1.6 kg (3.5 lb)
