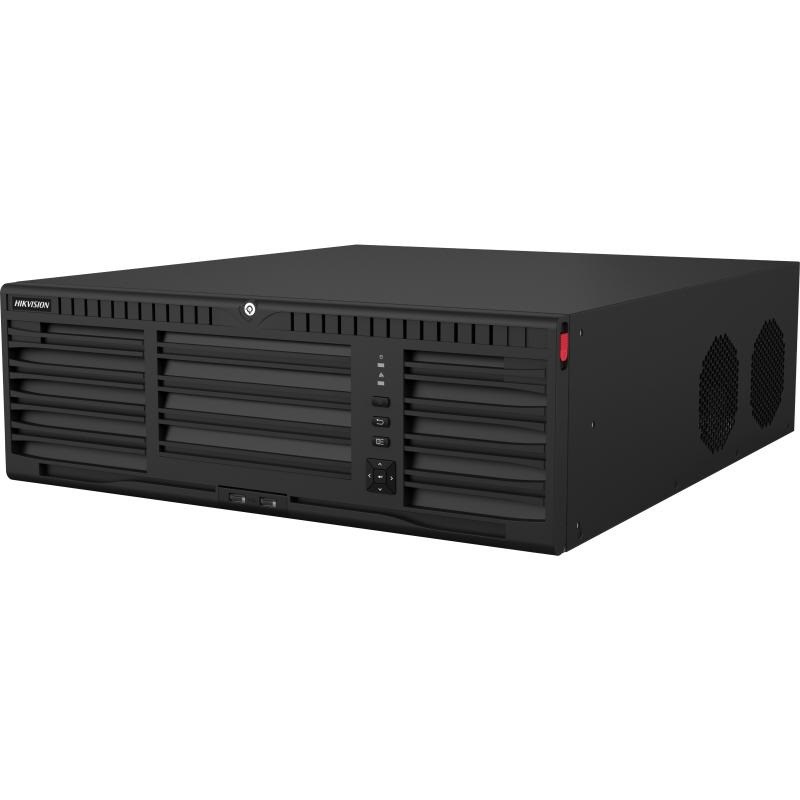

Hikvision DS-96128NI-M16 128 Kanal 8K NVR Kayıt Cihazı

IP Video Input: 128-ch

Incoming Bandwidth: 400 Mbps

Outgoing Bandwidth: 400 Mbps

HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output: 2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding Format: H.265+/H.265/H.264+/H.264

Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous playback: 16-ch

Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol: ONVIF(Version 2.5), RTSP

RAID Type: RAID0, RAID1, RAID5, RAID6, RAID10

Serial Interface: 1 RS-485 (full-duplex), 1 RS-232

SATA: 16 SATA interfaces supporting hot-plug

eSATA: 1 eSATA interface

Capacity: Up to 16 TB capacity for each disk

Alarm In/Out: 16/9

USB Interface: Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Power Supply: 100 to 240 VAC, 50 to 60 Hz

Consumption: ≤ 50 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Working Humidity: 10% to 90%

Chassis: 3U chassis

EAN Numarası: 06931847188474
