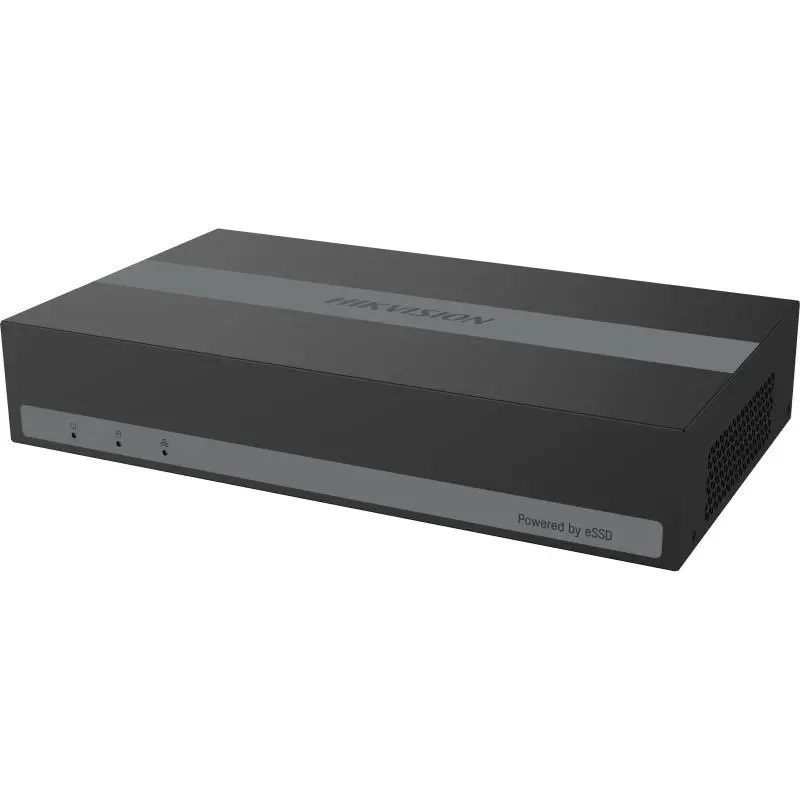

Hikvision DS-E16HGHI-B 16 Kanal DVR Kayıt Cihazı

IP Video Input:

2-ch

Up to 5 MP resolution

Support H.265+/H.265 IP cameras

Analog Video Input:

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: Support

HDMI Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input: 16-ch via coaxial cable

Audio Output: 1-ch via HDMI

Synchronous Playback: 16-ch

Video Compression: H.265 Pro/H.265

Encoding Resolution: 1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA

Audio Compression: G.711u

Audio Bitrate: 64 Kbps

Capacity: Built-in 1024 GB eSSD (960 GB available)

Note: The device can store about 2 weeks videos for 16-ch analog cameras (default parameters), this estimation is for reference only.

Power Supply: 12 VDC, 1 A

Consumption: ≤ 9.5 W (with eSSD)

Working Temperature: -10 °C to 45 °C (14 °F to 113 °F)

Working Humidity: 10% to 90%

EAN Numarası: 6942160415291
