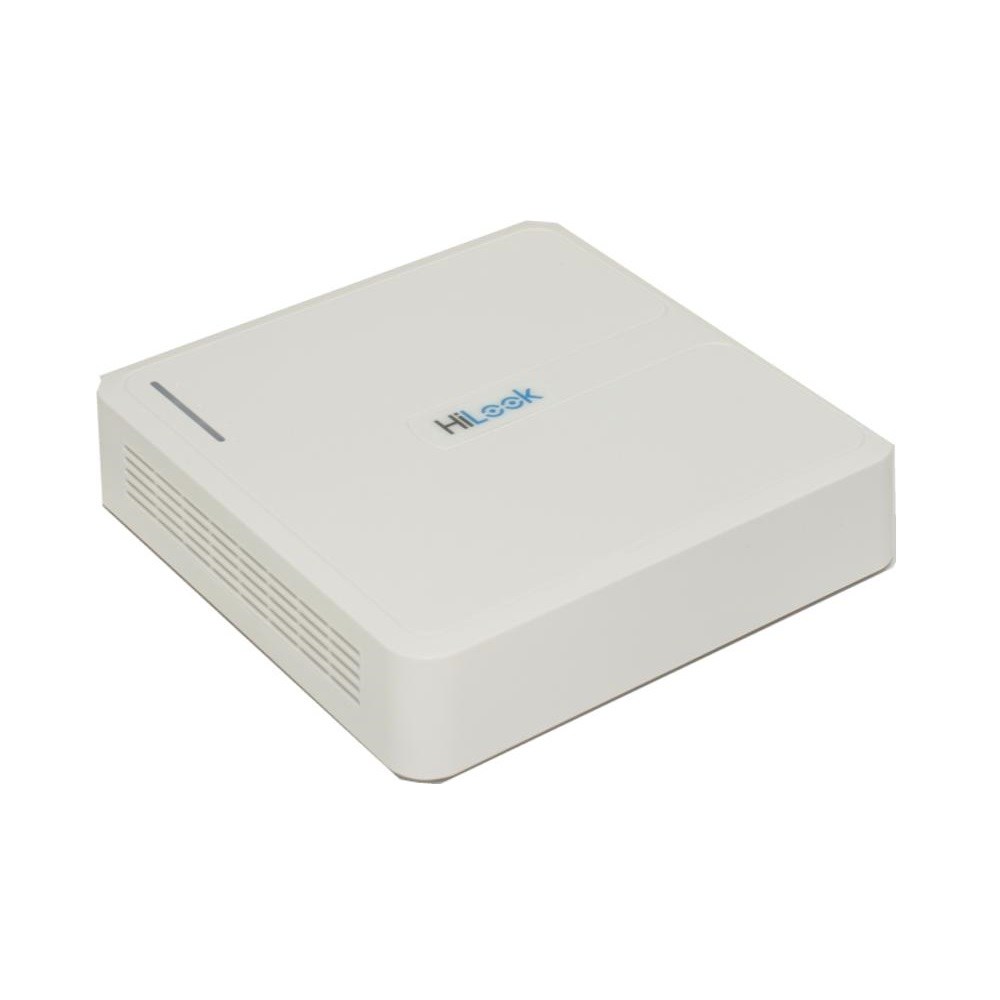

Hikvision DVR-108G-M1 8 Kanal DVR Kayıt Cihazı

IP Video Input:

2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input:

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: Support

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Input:

1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: Reuse the first audio input

Synchronous playback: 8-ch

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video Bitrate: 32 Kbps to 4 Mbps

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps

Total Bandwidth: 72 Mbps

Remote Connection: 64

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

SATA: 1 SATA interface

Capacity: Up to 4 TB capacity for each disk

USB Interface: Rear panel: 2 × USB 2.0

Alarm In/Out: N/A

Power Supply: 12 VDC, 1.5 A

Consumption: ≤ 17 W (without HDD)

Working Temperature: -10 °C to 55 °C (14 °F to +31 °F)

Working Humidity: 10% to 90%
