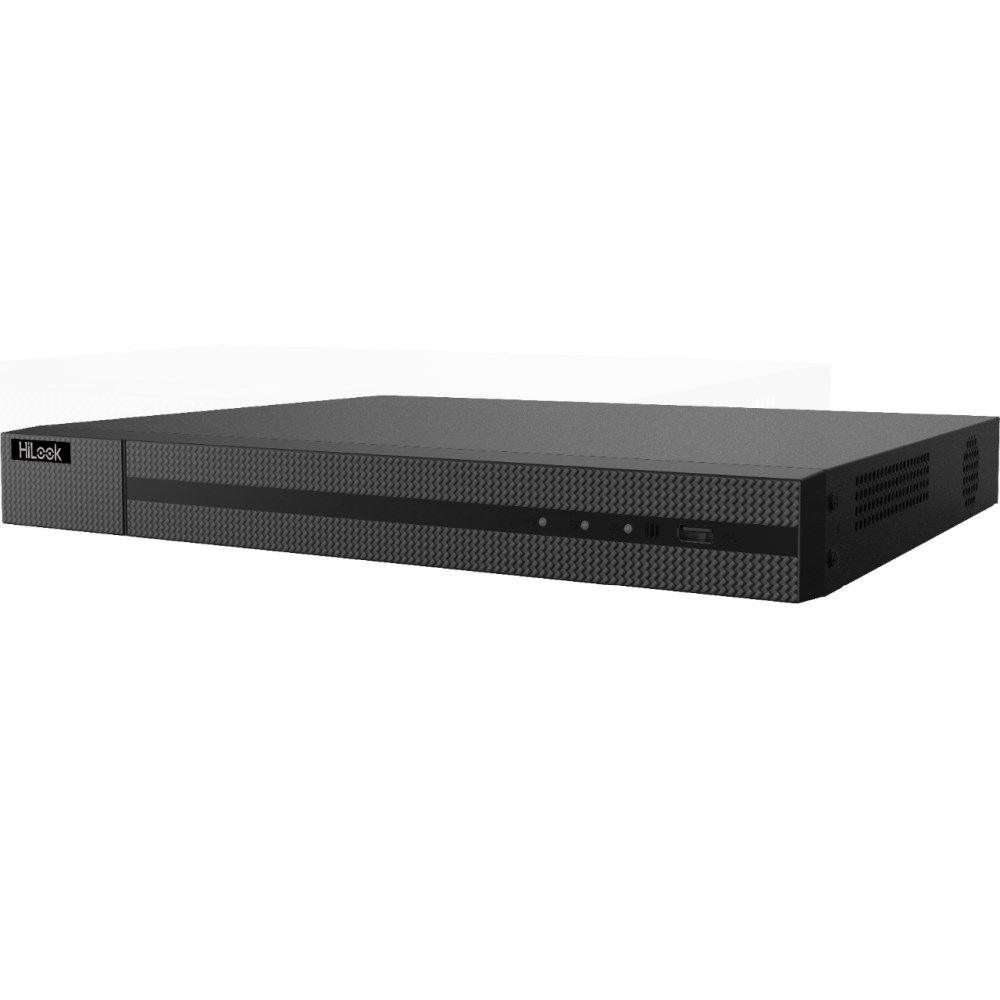

Hikvision DVR-216U-K2 16 Kanal DVR Kayıt Cihazı

Line Crossing Detection/Intrusion Detection:
2-ch

Enhanced VCA mode on:
16-ch

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Video Bitrate:
32 Kbps to 10 Mbps

Dual-Stream:
Support

Stream Type:
Video, Video & Audio

Audio Compression:
G.711u

Audio Bitrate:
64 Kbps

HDTVI Input:
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD Input:
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input:
4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input:
PAL/NTSC

HDMI Output:
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio Output:
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous Playback:
16-ch

Remote Connection:
128

Network Protocol:
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface:
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

SATA:
2 SATA interfaces

Capacity:
Up to 10 TB capacity for each disk

USB Interface:
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0

Power Supply:
12 VDC, 5 A

Consumption:
≤ 25 W (without HDD)

Working Temperature:
-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity:
10% to 90%
