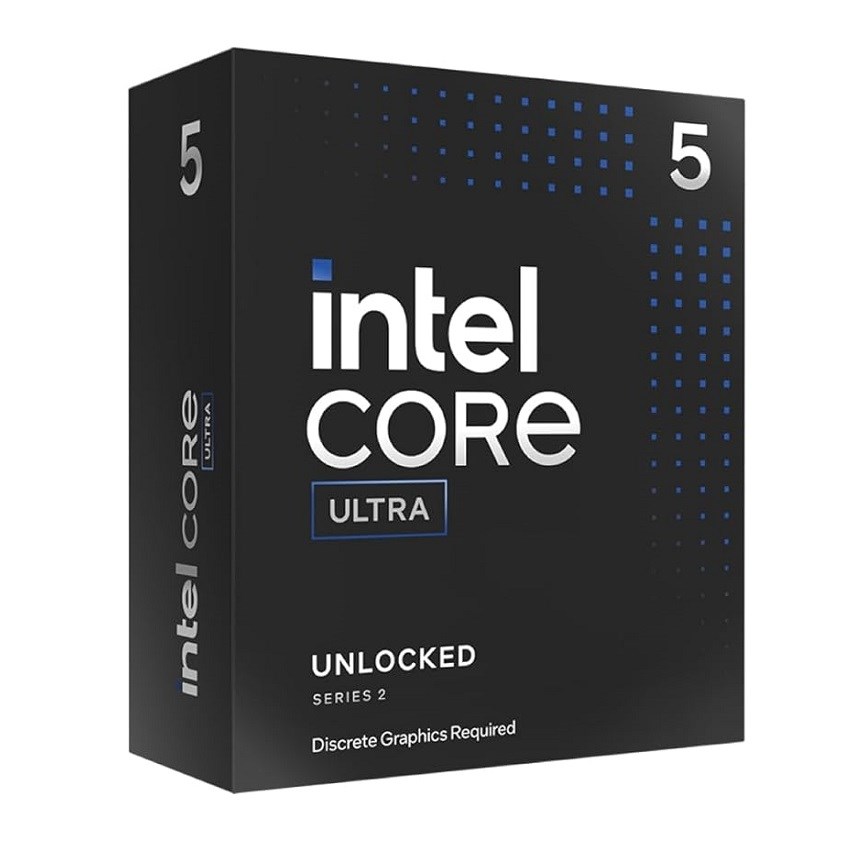

| Intel® Core™ Ultra 5 Processor 245KF (24M Cache- up to 5.20 GHz) |
| |
| Essentials |
| Product Collection,Intel® Core™ Ultra Processors (Series 2) |
| Code Name,Products formerly Arrow Lake |
| Vertical Segment,Desktop |
| Processor Number,245KF |
| Overall Peak TOPS (Int8),22 |
| |
| CPU Specifications |
| Total Cores,14 |
| # of Performance-cores,6 |
| # of Efficient-cores,8 |
| Total Threads,14 |
| Max Turbo Frequency,5.2 GHz |
| Performance-core Max Turbo Frequency,5.2 GHz |
| Efficient-core Max Turbo Frequency,4.6 GHz |
| Performance-core Base Frequency,4.2 GHz |
| Efficient-core Base Frequency,3.6 GHz |
| Cache,24 MB Intel® Smart Cache |
| Total L2 Cache,26 MB |
| Processor Base Power,125 W |
| Maximum Turbo Power,159 W |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU,Yes |
| AI Software Frameworks Supported by CPU,OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| CPU Lithography,TSMC N3B |
| |
| Supplemental Information |
| Marketing Status,Launched |
| Launch Date,Q4'24 |
| Embedded Options Available,No |
| Use Conditions,PC/Client/Tablet |
| Datasheet,View now |
| |
| Memory Specifications |
| Max Memory Size (dependent on memory type),256 GB |
| Memory Types,Up to DDR5 6400 MT/s |
| Maximum Memory Speed,6400 MHz |
| Max # of Memory Channels,2 |
| |
| NPU Specifications |
| NPU Name‡,Intel® AI Boost |
| NPU Peak TOPS (Int8),13 |
| Sparsity Support,Yes |
| Windows Studio Effects Support,Yes |
| AI Software Frameworks Supported by NPU,OpenVINO™ | WindowsML | DirectML | ONNX RT | WebNN |
| |
| Expansion Options |
| Direct Media Interface (DMI) Revision,4 |
| Max # of DMI Lanes,8 |
| Intel® Thunderbolt™ 4,Yes |
| Scalability,1S Only |
| PCI Express Revision,5.0 and 4.0 |
| PCI Express Configurations ‡,Up to 1x16+2x4 | 2x8+2x4 | 1x8+4x4 |
| Max # of PCI Express Lanes,24 |
| |
| Package Specifications |
| Sockets Supported,FCLGA1851 |
| Thermal Solution Specification,PCG 2020A |
| Max Operating Temperature,105 °C |
| |
| Advanced Technologies |
| Intel® Gaussian & Neural Accelerator,3.5 |
| Intel® Thread Director,Yes |
| Intel® Speed Shift Technology,Yes |
| Intel® Turbo Boost Technology ‡,2.0 |
| Intel® 64 ‡,Yes |
| Instruction Set,64-bit |
| Instruction Set Extensions,Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States,Yes |
| Enhanced Intel SpeedStep® Technology,Yes |
| Thermal Monitoring Technologies,Yes |
| Intel® Volume Management Device (VMD),Yes |
| |
| Security & Reliability |
| Intel® Standard Manageability (ISM) ‡,Yes |
| Intel® Secure Key,Yes |
| Intel® Control-Flow Enforcement Technology,Yes |
| Intel® AES New Instructions,Yes |
| Intel® Trusted Execution Technology ‡,Yes |
| Execute Disable Bit ‡,Yes |
| Intel® OS Guard,Yes |
| Intel® Boot Guard,Yes |
| Mode-based Execute Control (MBEC),Yes |
| Intel® Virtualization Technology (VT-x) ‡,Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡,Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡,Yes |
