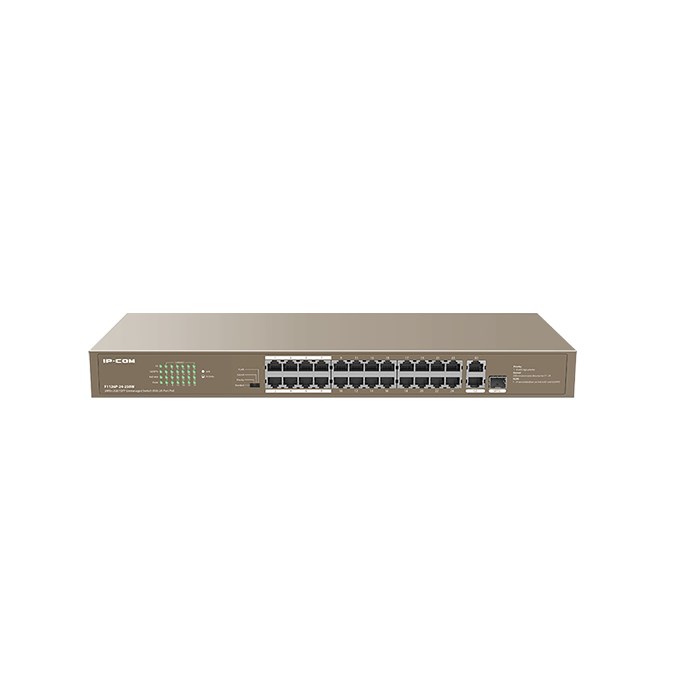

IP-COM F1126P-24-250W 24 Port Yönetilemez PoE Switch

Standards

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

LED indicators

24 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED

Interfaces

24 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
1 * 1000 Mbps Base-X SFP port (Combo)

Lightning protection

Port: 6kV
Power: 6kV

Forwarding mode

Store-and-forward

Switching capability

8.8 Gbps

Packet forwarding rate

6.55 Mpps

Buffer

4 Mb

MAC address table

16K

PoE supply

Ports 1-24 support standard IEEE802.3af/at
30W output per PoE port
230W output of the total PoE Power

Power consumption

250W output the whole device

Input voltage

AC：100-240V～ 50/60Hz

Dimensions

440 mm x 178.8 mm x 44 mm(L*W*H)

Four Modes

"Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.
Extend: In this mode, data rate of ports 17 - 24 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
VLAN: In this mode, ports 1 - 24 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast."

Operating environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certificates

CCC、FCC、CE、RoHS
