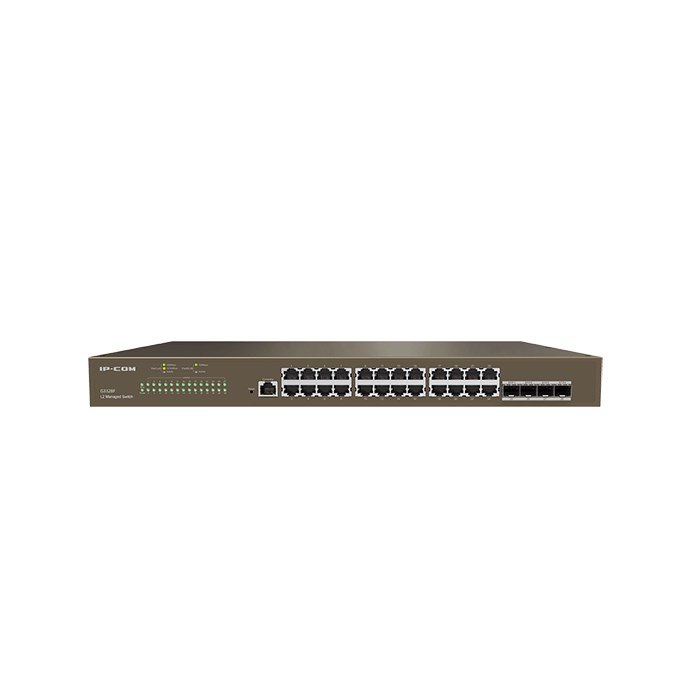

IP-COM G3328F Cloud Management 24 Port Switch

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

LED indicators

One Link/Act LED indicator for each port
One Power LED indicator for each device
One SYS LED indicator for each device

Interfaces

24 x 10/100/1000Base-T Ethernet ports
4 x 1000Base-X SFP ports
1 x Console port

Lightning protection

Port: 6kV
Power: 6kV

Forwarding mode

Store-and-forward

Switching capability

56Gbps

Packet forwarding rate

41.7Mpps

Buffer

12Mbit

MAC address table

16K

Input voltage

100-240V～ 50/60Hz

Dimensions(L*W*H)

440 mm x 179.6 mm x 44 mm

Operating environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage humidity: (5% - 90%)RH, non-condensing

Certificates

CCC、FCC、CE、RoHS

Security features

Supports ARP receiving limit
Supports discarding unknown MAC addresses
Supports DoS attack defense
Supports 802.1x security authentication
Supports RADIUS authentication

VLAN

Supports 4K VLAN table
Supports IEEE 802.1Q VLAN
Supports three port link types: Access, Trunk and Hybrid

DHCP

Supports DHCP Snooping
Supports Option 82 policy configuration

Port aggregation

Supports static aggregation
Supports LACP dynamic aggregation
Supports a maximum of 32 aggregation groups and a maximum of 8 member ports in each group

Spanning tree

Supports IEEE 802.1d STP (Spanning Tree Protocol)
Supports IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Supports IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge ports
Supports BPDU statistics
Supports BPDU Guard, BPDU Filter
Supports Root Guard, Loop Guard
Supports Loopback-detection

Multicast

Supports IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring

Supports N: 1 port mirroring

QoS

Supports SP (Strict Priority)
Supports SWRR (Simple Weighted Round Robin)
Supports WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping
Supports Tail Drop
Supports storm suppression
Supports port speed limit

ACL

Supports MAC ACL
Supports IPv4 ACL

Loading and upgrade

Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Cloud management

Supports configuration delivery from IMS cloud platform
Supports log reporting and fault detection
Supports remote maintenance: reboot, backup, upgrade

Local visualization management

Supports router, switch, AP, IP camera discovery
Supports automatic generation of topology
Supports online/offline status detection for devices
Supports remotely rebooting the IP camera

Management and maintenance

Supports Telnet configuration
Supports Console port configuration
Supports SNMP V1/V2/V3
Supports WEB UI management and maintenance
Supports Ping/Tracert Detection
