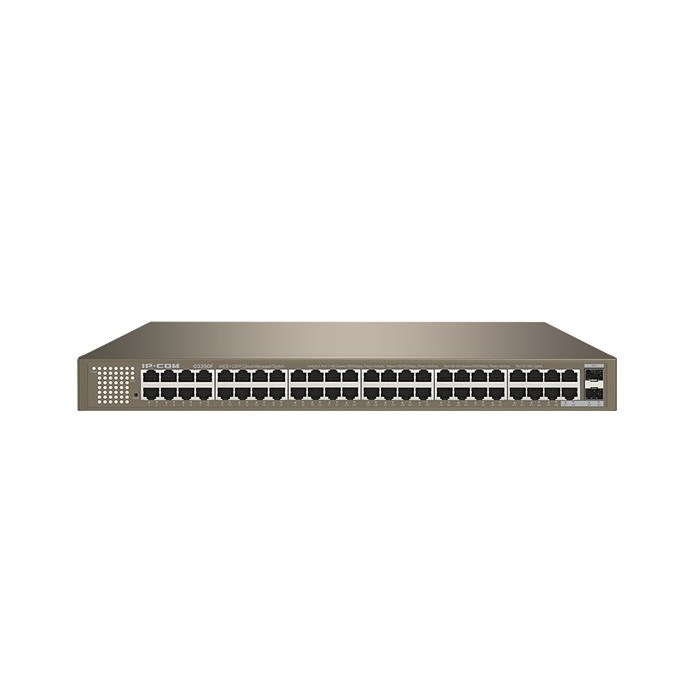

IP-COM G3350F Cloud Managed 48 Port Switch

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

LED indicators

One Link/Act LED indicator for each port
One Power LED indicator
One SYS LED indicator

Fixed ports

48 x 10/100/1000Base-T Ethernet port
2 x 1000Base-X SFP slot

Lightning protection

Port: 6 kV
Power supply: 6 kV

Forwarding mode

Store-and-forward

Switching capacity

100 Gbps

Packet forwarding rate

74.4 Mpps

Switching buffer

12 Mbit

MAC address table

16K

Input voltage

100 - 240V AC 50/60Hz

Dimensions

440 mm * 240 mm * 44 mm(L x W x H)

Environment

Operating temperature: 0°C - 45°C
Operating humidity: (10% - 90%)RH, non-condensing
Storage temperature: -40°C - 70°C
Storage humidity: (5% - 90%)RH, non-condensing

Certificates

CCC, FCC, CE, RoHS

Security features

Support ARP receiving limit
Support discarding unknown MAC addresses
Support DoS attack defense
Support 802.1x security authentication
Support RADIUS authentication

VLAN

Support 4 K VLAN table
Support IEEE 802.1q VLAN
Support three port modes: Access, Trunk and Hybrid

DHCP

Support DHCP snooping
Support Option 82 policy configuration

Port aggregation

Support Static aggregation
Support Dynamic aggregation

STP

Support IEEE 802.1d STP (Spanning Tree Protocol)
Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Support edge ports
Support BPDU statistics

IGMP

Support IGMP snooping V1/V2/V3
Support fast leave of ports

Port mirroring

Support N: 1 port mirroring

QoS

Support SP (Strict Priority)
Support SWRR (Simple Weighted Round Robin)
Support WRR (Weighted Round Robin)
Support 802.1p port trust mode
Support DSCP port trust mode
Support a maximum of 8-queue service quality mapping

ACL

Support MAC ACL
Support IPv4 ACL

Cloud Management

Support configuration delivery from CloudFi management platform
Support CloudFi App management
Support log reporting and fault detection
Support remote maintenance: reboot, backup, upgrade

Local Visualization

Support discovery of such network devices as routers, switches, APs based on LLDP
Support IP camera discovery based on ONVIF protocol
Support automatic generation of topology
Support local view and main view
Support online/offline status detection for devices
Support remote IP cameras reboot
Support loop alert
Support custom device types and device names

Loading and upgrade

Support HTTP upgrade
Support Configuration import and export

Management and maintenance

Support Telnet configuration
Support SNMP V1/V2/V3
Support web management and maintenance
Support system log
Support log classification
Support NTP
Support Ping and Tracert tests
Support memory and CPU monitoring
