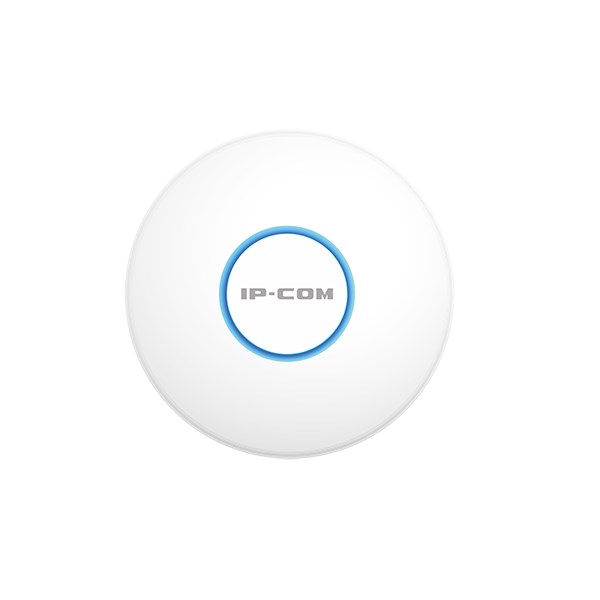

IP-COM Pro-6-LITE AX3000 Wi-Fi 6 Dual-Band Access Point

Model

Pro-6-LITE

Category

Ceiling/Wall

Dimensions

Φ176*43.5 mm

Frequency band

2.4 GHz, 5 GHz

Wireless standards

IEEE 802.11a/b/g/n/ac/ax

2.4 GHz data rate

1-574 Mbps

5 GHz data rate

6-2402 Mbps

Channel width

20 MHz/40 MHz/80 MHz/160 MHz

MU-MIMO

2X2 MU-MIMO

Ethernet port

1*10/100/1000 Mbps Ethernet Port (PoE)

Button

1*Reset

LED indicator

RGB

Max. power consumption

14.04 W

Power supply standard

IEEE 802.3at PoE

Concurrent clients

254

Antenna gain

2*4 dBi

Transmission Power

CE:<20 dBm(2.4 GHZ, EIRP)    <23 dBm(5 GHZ, EIRP)
FCC:<26 dBm (2.4 GHz)  <26 dBm (5 GHz)
26+/1.5dBm
26+/1.5dBm

802.11b RX sensitivity

-97 dBm

2.4 GHz 802.11n (MCS7) RX sensitivity

-76 dBm

5 GHz 802.11a RX sensitivity

-96 dBm

5 GHz 802.11n (MCS7) RX sensitivity

-76 dBm

Operating mode

AP AP+client

Hide SSID

Supported

Max. No. of SSID

2.4 GHz: 8 5 GHz: 4

OFDMA

Supported

Beamforming

Supported

TWT

Supported

Fast Roaming

Supported

802.11 k/v/r

Supported

WEP

Supported

WPA-PSK

AES/TKIP

WPA2-PSK

AES/TKIP

WPA3-ASE

AES

WPA

Supported

WPA2

Supported

Access control

MAC address-based

Adjustable power transmit

Supported

Frequency analysis

Supported

AP isolation

Supported

Connected clients control

Supported

RSSI threshold

Supported

VLAN tagging for SSID

Supported

LED indicator control

Supported

Diagnostics tool

Ping, Traceroute

Scheduled reboot

Supported

Reboot at specified interval

Supported

System logs

Supported

Firmware upgrade

Supported

Reboot

Supported

Reset

Supported

Backup configuration

Supported

Restore configuration

Supported

Default login IP address

192.168.0.254

Default user name

admin

Default password

admin

Operating temperature

-10℃ - 40℃

Operating humidity

(10% - 90%) RH, non-condensing

Storage temperature

-30℃ - 70℃

Storage humidity

(10% - 90%) RH, non-condensing
