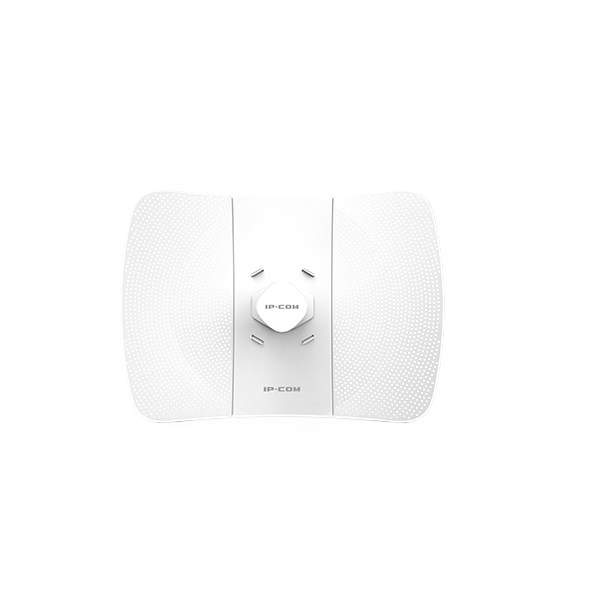

IP-COM iLBE-M5 Outdoor Access Point

Model

iLBE-M5

Dimensions

391.5*280*223mm

Deployment

Pole Mount

Application Scenarios

PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance

Frequency Range

5GHz

Compliant Standards

IEEE 802.11a/n/ac

Private TDMA Protocol

ipMAX

Maximum Wireless Rate

433Mbps

Interfaces

1*10/100Mbps Ethernet Port

Antennas Gain

23dBi

Antenna Beamwidth

Vertical Azimuth: 10° Veritcal Elevation: 10°

Reset Button

1

Power Consumption

5.5W

Waterproof Level

IP65

LED indicator

PoE/LAN,LED1,LED2,LED3

Power Method

12V1A Passive PoE

Lightning Protection

6000V

Passive PoE

Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins )
Voltage range: 9-31V DC

Receiver sensitivity

11a 6Mbps -95dBm±1.5dBm
11n MCS7 HT20 -72dBm±1.5dBm
11ac MCS9 HT80 -64dBm±1.5dBm

Operating mode

AP/Station/WISP/P2MP/WDS Repeater/Router

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

AP SSID Lock

Support

SSID Isolation

Support

Channel Bandwidth

20/40/80MHz

Client Limitation For SSID

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

Transmission Power

Adjustable power by 1dBm

WMM Capable

Support

APSD Capable

Support

Wireless Security

64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2

Transparent Bridge

Support

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

PPTP,L2TP

Remote Web access

Support

Schedule Reboot

Support

Page Timeout

Support

Ping Watchdog

Support

Dyndns

noip, dyndns.org

Network Diagnoses

Ping, Traceroute, Signal Scan

Time&Date Setting

Support

Firmware upgrade

Support

Backup/Restore Configuration

Support

Username Managerment

Support

System Log

Support

Managed By Controller

PC Software -- CPE Controller

Operating Temperature

-30℃ ~ 60℃

Storage Temperature

-40℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168.2.1

Default Login Username

admin

Default Login Password

admin

Certifications

FCC/CE/RoHS
