| Machine types |
7X99A09EEA |
| Form factor |

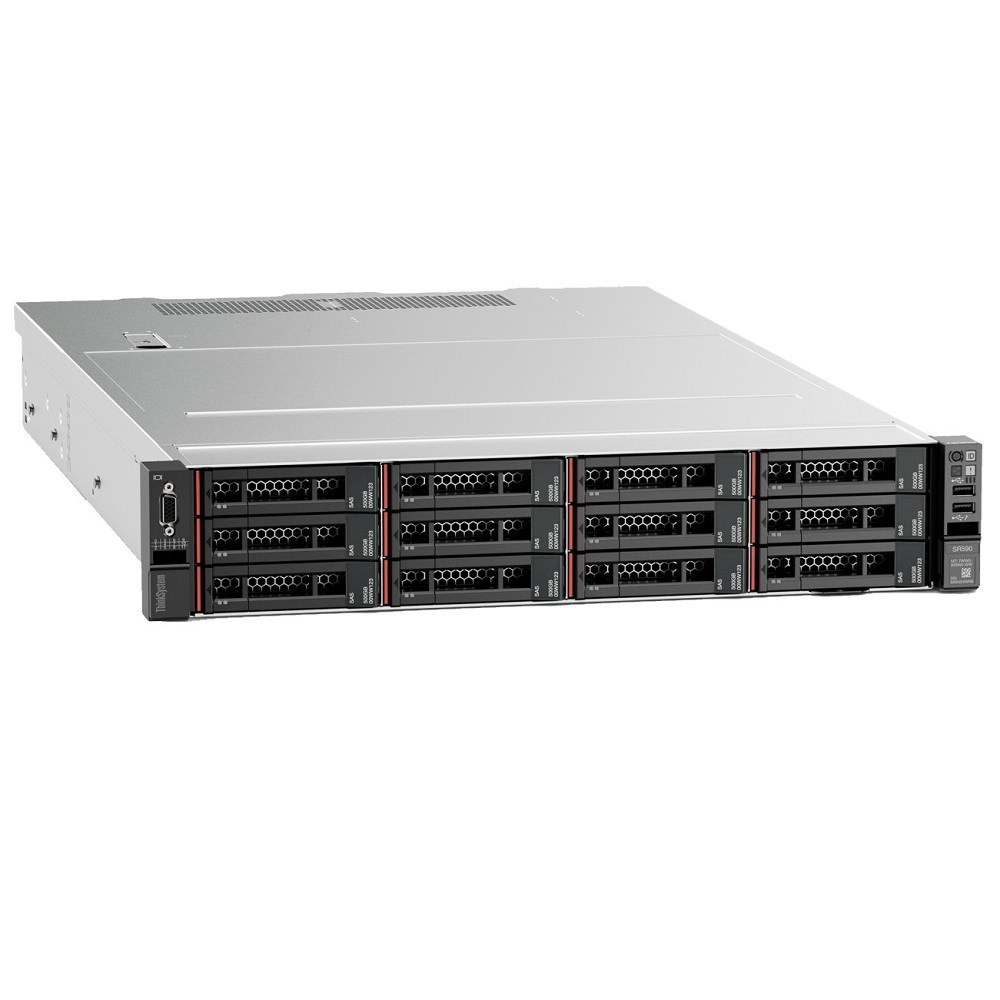

2U rack-mount. |
| Processor |
1x Silver 4208 8C 85W 2.1G |
| Chipset |
Intel C622. |
| Memory |
|
| Persistent memory |
Up to 4x 128 GB, 256 GB, or 512 GB TruDDR4 2666 MHz DCPMMs in the DIMM slots. Not supported with 1st Gen Intel Xeon SP processors. |
| Memory capacity |
- Memory DIMMs only: Up to 1 TB with up to 16x 64 GB RDIMMs (Up to 512 GB per processor).
- Memory DIMMs and persistent memory modules:
- App Direct Mode: Up to 2.75 TB with up to 12x 64 GB RDIMMs and up to 4x 512 GB DCPMMs (Up to 1.375 TB per processor).
- Memory Mode: Up to 2 TB with up to 4x 512 GB DCPMMs (Up to 1 TB per processor).
Note: Server configurations with more than 1 TB of memory capacity per socket (including DCPMMs and RDIMMs) require processors that support up to 4.5 TB (L-suffix) per socket. |
| Memory protection |
- Processor's integrated memory controllers: Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.
- DCPMM's onboard memory controllers: ECC, SDDC, DDDC, patrol scrubbing, and demand scrubbing.
Note: In the configurations with DCPMMs, memory mirroring is supported only in the App Direct mode (other DCPMM modes do not support memory mirroring) and applies only to the RDIMMs (DCPMMs are not mirrored). Memory sparing is not supported in the configurations with DCPMMs. |
| Drive bays |
- Up to 16 SFF hot-swap drive bays:
- 8x 2.5" SAS/SATA + 8x 2.5" SAS/SATA
- 4x 2.5" SAS/SATA & 4x 2.5" AnyBay + 8x 2.5" SAS/SATA
- 8 LFF SATA Simple Swap drive bays
- 8 LFF SAS/SATA hot-swap drive bays
- Up to 14 LFF hot-swap drive bays:
- 12x 3.5" SAS/SATA (front) + 2x 3.5" SAS/SATA (rear)
- 8x 3.5" SAS/SATA & 4x 3.5" AnyBay (front) + 2x 3.5" SAS/SATA (rear)
|
| Storage controller |
- 6 Gb Onboard SATA AHCI
- 6 Gb Onboard SATA RAID (Intel RSTe)
- 12 Gb SAS/SATA RAID adapters with up to 8GB flash-backed cache
- 12 Gb SAS/SATA HBA (non-RAID)
- Onboard PCIe NVMe (non-RAID, requires two processors)
- 1610-4P NVMe Switch Adapter (non-RAID, only supported with one processor)
|
| Optical drive bays |
None. Support for an external USB DVD RW Optical Disk Drive |
| Network interfaces |
- 2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
- Onboard LOM slot for up to 4x 1/10 Gb Ethernet ports:
- 2x 1 GbE RJ-45 ports (no 10/100 Mb support)
- 2x 10 GbE RJ-45 ports (no 10/100 Mb support)
- 2x 10 GbE SFP+ ports (no 10/100 Mb support)
- Optional Mezzanine LOM (ML2) slot for dual-port 10 GbE cards with SFP+ or RJ-45 connectors.
- 1x RJ-45 10/100/1000 Mb Ethernet systems management port.
|
| I/O expansion slots |
Up to six slots. Slot 4 is the fixed slots on the system planar, and the remaining slots depend on the riser cards installed. The slots are as follows:
- Slot 1: PCIe 3.0 x16 or PCIe 3.0 x8; full-height, half-length (PCIe x16 slot is double-wide)
- Slot 2: PCIe 3.0 x8; full-height, half-length (not present if the slot 1 is PCIe x16)
- Slot 3: PCIe 3.0 x8 or ML2 x8; full-height, half-length
- Slot 4: PCIe 3.0 x8; low profile (vertical slot on system planar)
- Slot 5: PCIe 3.0 x16; full-height, half-length
- Slot 6: PCIe 3.0 x8; full-height, half-length
Slot 5 requires the second processor to be installed. |
| Ports |
- Front: 1x USB 2.0 port with XClarity Controller access, 1x USB 3.0 port. Optional 1x VGA port.
- Rear: 2x USB 3.0 ports and 1x VGA port. Optional 1x DB-9 serial port.
|
| Cooling |
Three (one processor) or four (two processors) hot-swap system fans with N+1 redundancy. |
| Power supply |
750w |
| Video |
Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel. |
| Hot-swap parts |
Drives (select models), power supplies, and fans. |
| Systems management |
XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, light path diagnostics, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner. |
| Security features |
Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC). |
| Operating systems |
none |
| Service and support |
Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services. |
| Dimensions |
Width: 445 mm (17.5 in.), height: 87 mm (3.4 in.), depth: 764 mm (30.1 in.). |
| Weight |
Minimum configuration: 19 kg (41.9 lb), maximum: 26 kg (57.3 lb) |
