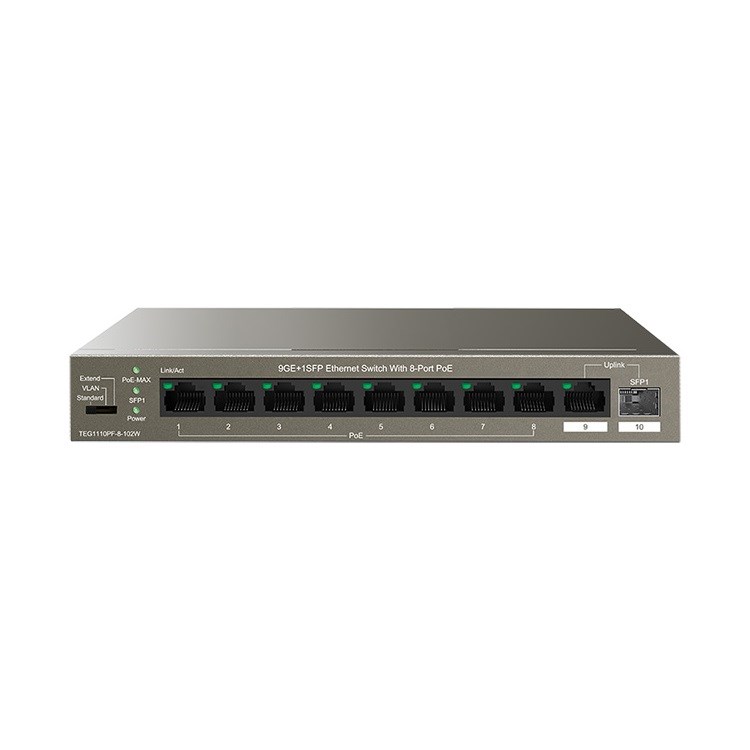

TENDA TEG1110PF-8-102W 8 Port 10/100/1000 PoE Switch

Network standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

LED Indicator:

10* Link/Ack LED indicators
1 * Power LED indicator

Interfaces:

8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)
1 * 10/100/1000 Mbps Base-T Ethernet port (Data)
1 * 100/1000 Mbps Base-X SFP port

Transmission media : Recommended: CAT5/5e UTP or better

Fan quantity:  -

Dimension: 177.5mmx104.0mmx26.0mm(L*W*H)

Level of protection:

Lightning protection for ports: 6KV
Lightning protection for power: 6KV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode: Store-and-forward

Switch capacity: 20 Gbps

Packet forwarding rate: 14.9Mpps

Buffer: 2M

MAC address table: 16K

Jombo frame: -

PoE budget:

Single port: AF: 15.4W, AT: 30W
Whole device: 92W

Power consumption: -

Input voltage:

100-240V AC 50/60Hz
51V /2.0A DC（Power Adapter Output ）

Mounting:

Desktop mounting: support
Wall mounting: support
Rack mounting : non-support

Environment:

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Certification:

FCC
CE
RoHS
