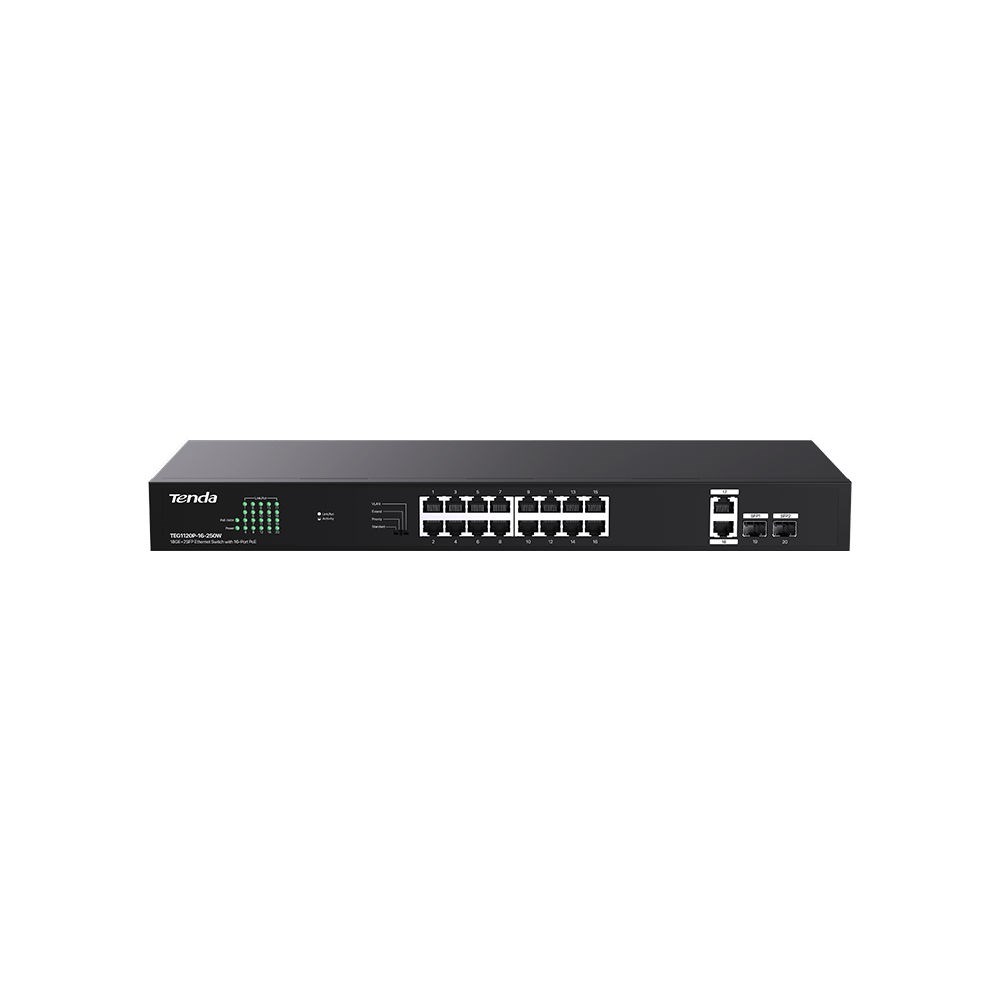

TENDA TEG1120P-16-250W 16 Port 10/100/1000 POE 2 SFP 250W Yönetilemez Rack Mount Switch

Donanım

Ağ Standartları :

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

LED Göstergesi :

Power
Link/Act
PoE MAX

Arayüzler :

(18)1GE RJ45 ports
(2)1GE SFP ports

İletim Medyası :  Recommended: CAT5/5e UTP or better

Fan miktarı : 1

Boyut : 440mm*178mm*44mm

Koruma Seviyesi :

Port: 6 KV
Power：6 KV

Yönlendirme modu : Store-and-forward

Switch Kapasitesi : 40Gbps

Paket Yönlendirme Hızı : 29.8Mpps

Buffer : 4Mb

MAC Adres Tablosu : 8K

PoE bütçesi :

Single port: AF: 15.4W, AT: 30W
Whole device: 230W

Güç Tüketimi : 250W

Giriş Voltaj : 100-240V AC，50 / 60Hz

Montaj :

Rack mounting : support
Desktop mounting: support
Wall mounting: support

Çevre :

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Sertifikasyon : FCC, CE, RoHS

Yazılım

İşlevler :

One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
