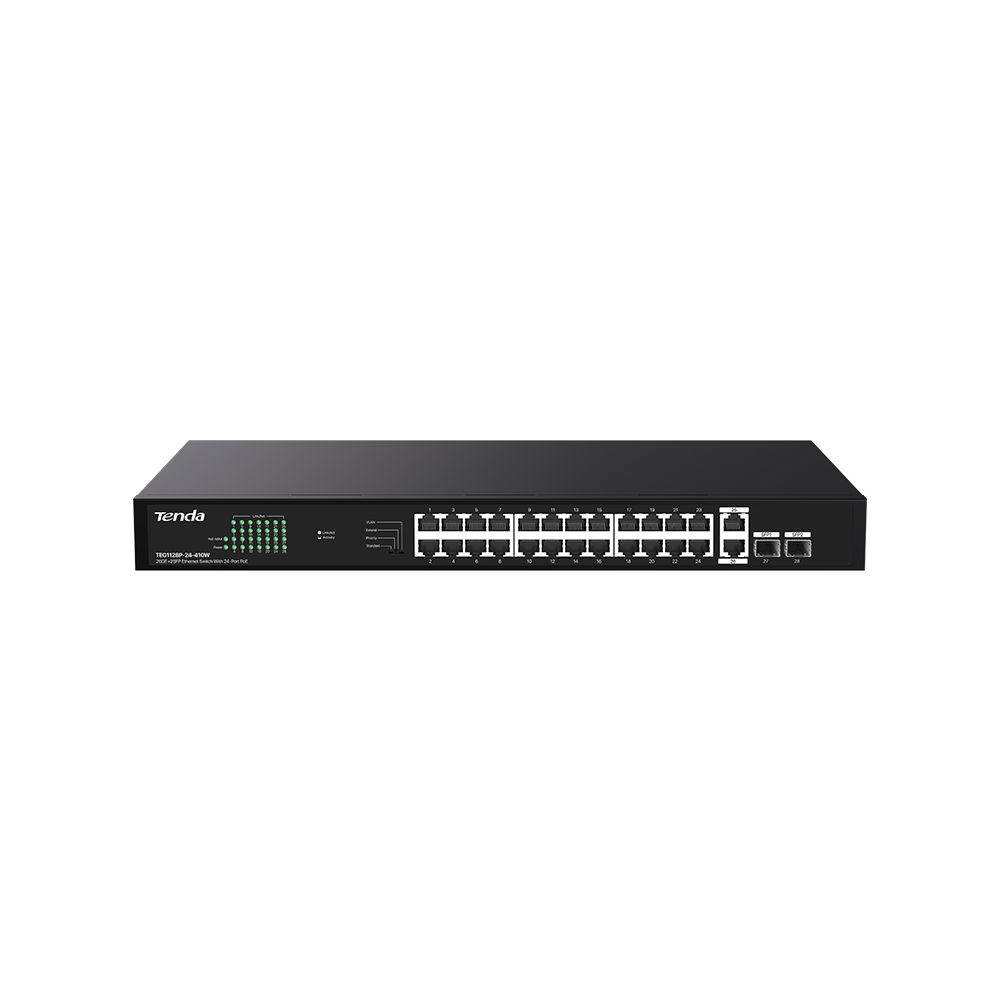

TENDA TEG1128P-24-410W 24 Port 10/100/1000 POE 2xSFP 410W Yönetilemez Rack Mount Switch

Donanım

Ağ Standartları :

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

LED Göstergesi :

Power
Link/Act
PoE MAX

Arayüzler : (26)1GE RJ45 ports  - (2)1GE SFP ports

İletim Medyası : Recommended: CAT5/5e UTP or better

Fan miktarı : 1

Boyut : 440mm*240mm*44mm

Koruma Seviyesi :

Port: 6 KV
Power：6 KV

Yönlendirme modu : Store-and-forward

Switch Kapasitesi : 56Gbps

Paket Yönlendirme Hızı : 41.7Mpps

Buffer : 4Mb

MAC Adres Tablosu :  :8K

PoE bütçesi :

Single port: AF: 15.4W, AT: 30W
Whole device: 370W

Güç Tüketimi :  410W

Giriş Voltaj : 100-240V AC，50 / 60Hz

Montaj :

Rack mounting : support
Desktop mounting: support
Wall mounting: support

Çevre :

Operating temperature：0°C - 45℃
Storage temperature：-40°C - 70°C
Operating humidity：10% - 90%,non-condensing
Storage humidity：5% - 90%,non-condensing

Sertifikasyon : FCC, CE, RoHS

Yazılım

İşlevler

One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 17-24 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 24 cannot communicate with each other, but can communicate with ports 25, 26, SFP1 (27), and SFP2 (28), which can be used to isolate broadcast storms and DHCP conflicts.
