| Product name |
| Description |

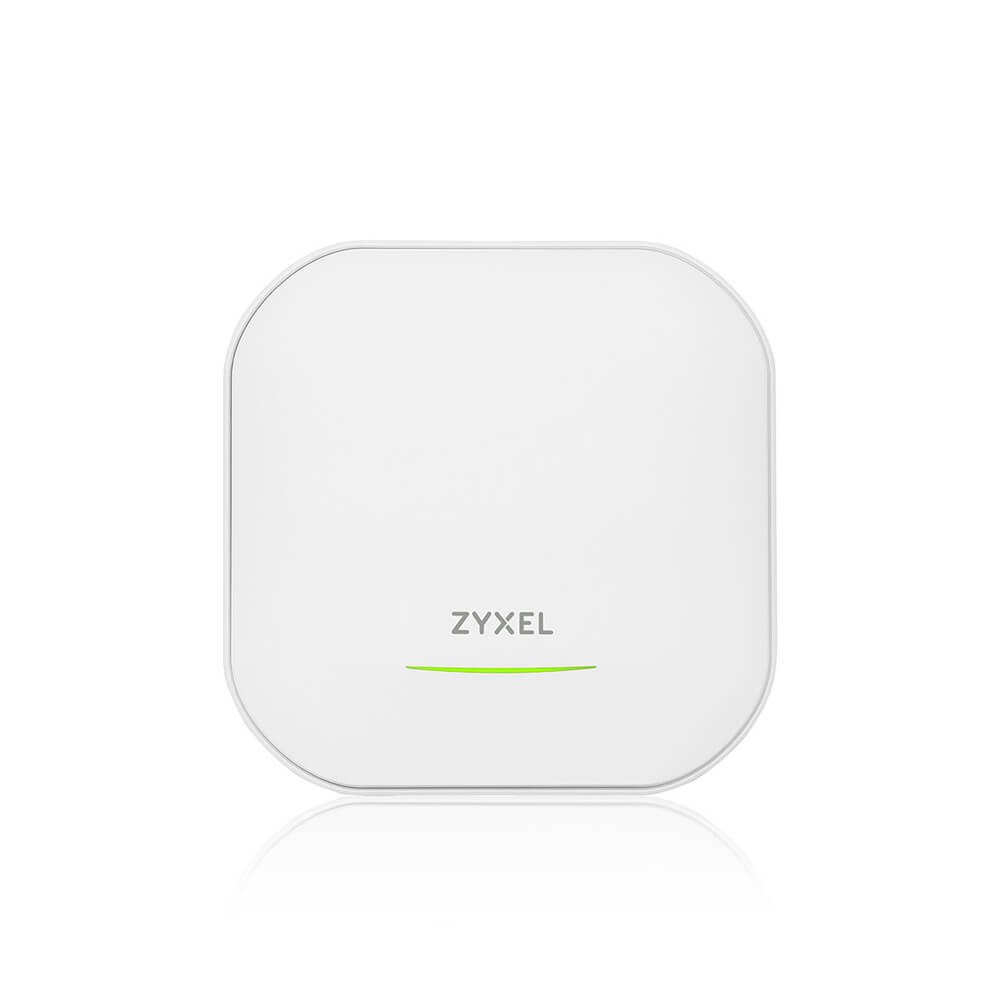

802.11ax (WiFi 6E) Dual-Radio PoE Access Point |
| Wireless |
| Standard |
IEEE 802.11 ax/ac/n/g/b/a |
| MIMO |
MU-MIMO |
| Wireless speed |
2.4GHz: 575 Mbps
5GHz: 4800 Mbps
6GHz: 4800 Mbps |
| Frequency band |
2.4 GHz
- USA (FCC): 2.412 to 2.462 GHz
- Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
- USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
- European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
6 GHz
- USA (FCC): 5.925 to 6.425 GHz; 6.525 to 7.125 GHz
- European (ETSI): 5.925 to 6.425 GHz
|
| Bandwidth |
20-, 40-,80- and 160-MHz |
Conducted typical transmit output power*1
(limited by local regulatory requirements) |
US (2.4GHz/5GHz) or +/6GHz): 24/25/24dBm
EU (2.4GHz/5GHz) or +/6GHz): 18/22/19dBm |
| RF Design |
| Antenna type |
4x4 + 2x2 Dual-optimized Antenna |
| Antenna gain |
2.4 GHz: Peak Gain 3dBi
5 GHz: Peak Gain 5dBi
6 GHz: Peak Gain 6dBi |
| Minimum Receive sensitivity |
Min. Rx sensitivity up to -101 dBm |
| WLAN feature |
| Band Steering |
Yes |
| WDS/Mesh*2 |
Yes |
| Fast roaming |
Pre-authentication, PMK caching and 802.11r/k/v |
| DCS |
Yes |
| Load balancing |
Yes |
| Advanced Cellular Coexistence |
Yes |
| Security |
| Encryption |
|
| Authentication |
- WPA
- WPA2
- WPA3-Enterprise
- EAP
- IEEE 802.1X
- RADIUS authentication
|
| Access management |
- L2-isolation
- MAC filtering
- Rogue AP detection
|
| Networking |
| IPv6 |
Yes |
| VLANs |
Yes |
| WMM |
Yes |
| U-APSD |
Yes |
| Management |
| Operating mode |
- Nebula Cloud managed
- Standalone
|
| ZON Utility |
- Discovery of Zyxel switches, APs and gateways
- Centralized and batch configurations
- IP configuration
- IP renew
- Device reboot
- Device locating
- Web GUI access
- Firmware upgrade
- Password configuration
|
| Web UI/CLI |
Yes |
| SNMP |
Yes |
| Physical Specifications |
| Item |
Dimensions (WxDxH)(mm/in.):
180 x 180 x 42 mm / 7.09 x 7.09 x 1.65
Weight (g/lb.):
650g/1.43lb |
| Packing |
Dimensions (WxDxH)(mm/in.):
197 x 190 x 60 mm/ 7.76 x 7.48 x 2.36
Weight (g/lb.):
780g/1.72lb |
| Included accessories |
- Mount plate
- Mounting screws
|
| MTBF (hr) |
711,333 |
| Physical Interfaces |
| Ethernet port |
1 x 1/2.5Gbps LAN
1 x 1Gbps LAN |
| Power |
- PoE (802.3)at: power draw 21 W
- DC input : 12 VDC 2A
|
| PoE Modes |
- IEEE802.3af: No Wireless
- IEEE802.3at: Unrestricted
- IEEE802.3bt: Unrestricted
|
| Environmental Specifications |
| Operating |
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing) |
| Storage |
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 95% (non-condensing) |
| Certifications |
| Radio |
- FCC Part 15C
- FCC Part 15E
- ETSI EN 300 328
- EN 301 893
- EN 303 687
- LP0002
|
| EMC |
- FCC Part 15B
- EN 301 489-1
- EN 301 489-17
- EN55022
- EN55024
- EN60601-1-2
- BSMI CNS13438
|
| Safety |
- Safety EN 62368
- BSMI CNS14336-1
|
