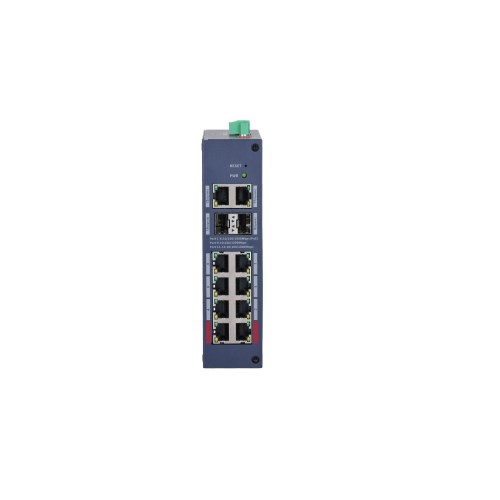

Dahua CHS4212-8GT-110 12 Port Cloud Managed Switch

Basic:

Layer

Layer 2

Switching Capacity

24 Gbps

Packet Forwarding Rate

17.856 Mpps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
Port 11-12: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (RH), non-condensing

Protection

IP30; IK06

Storage Temperature

–40 °C to +85 °C (-40 °F to +185 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A

Power Consumption

Idling: 2 W
Full load: 117.2 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.66 kg (1.46 lb)

Gross Weight

1.6 kg (3.53 lb)

Product Dimensions

171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)

Packaging Dimensions

314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)

Casing Material

Iron

Installation

DIN rail mount; desktop mount

Certifications

CE

PoE:

PoE

Yes

PoE Power

Port 3-8≤30 W, port 1–2≤90 W, total≤110 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance PoE Transmission

Yes

Hardware:

DIP Switch

Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.

Reset Button

1

Performance:

MTBF

810,020 hours

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12288 Byte

MAC Table Size

8K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad

VLAN Number

32

Dynamic ARP

10

Feature:

Ethernet Loop Protection

STP; RSTP

VLAN Function

Port-based VLAN

Link Aggregation

Static Aggregation

Port Feature

IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+PORT Binding
Port Self-loop Detection
Ports Self-loop Detection

Mirror

Local Port Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation
IP/Port/MAC Binding

Equipment Management

Web Management
Cloud Management
Logs
System Logs
Fault Alarm
