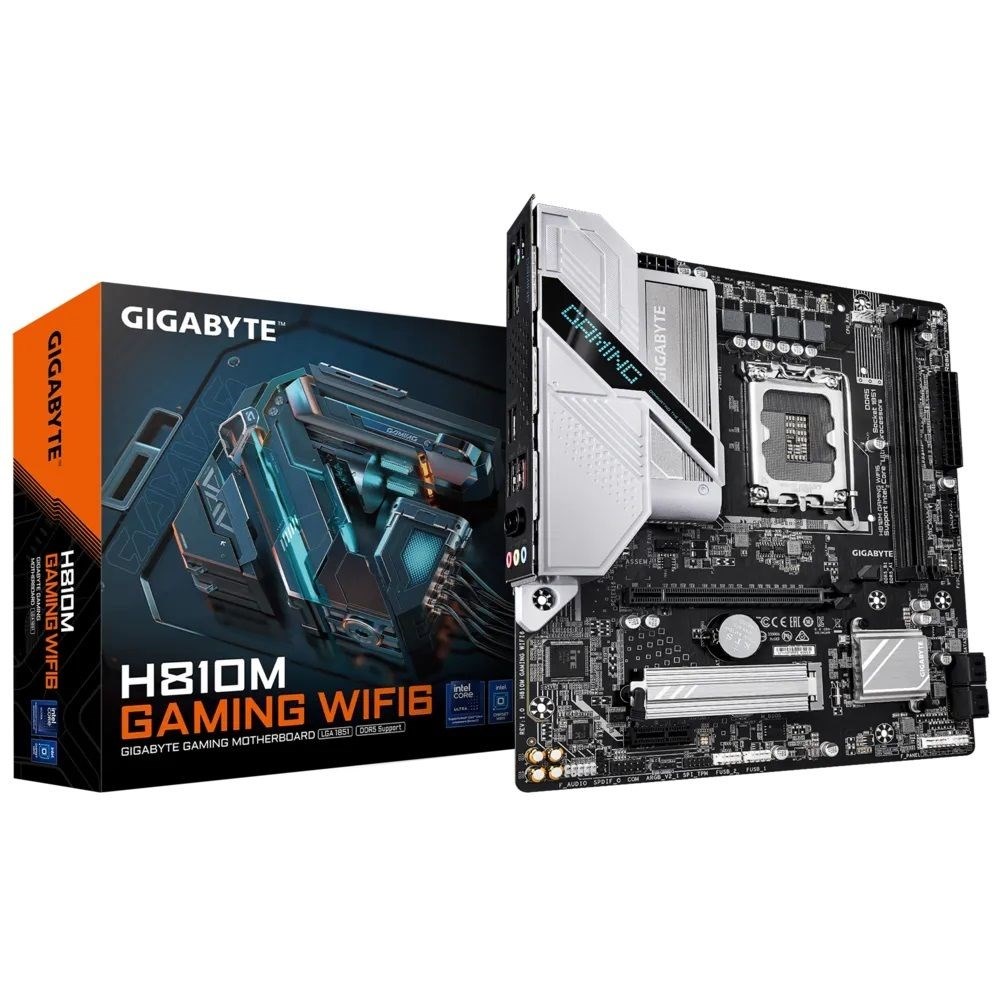

Gigabyte H810M GAMING WIFI6 DDR5 Intel H810 Soket 1851 Micro ATX Anakart

CPU:

LGA1851 socket: Support for Intel® Core™ Ultra Processors

Chipset:

Intel® H810 Express Chipset

Memory:

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort, supporting a maximum resolution of 3840x2160@60 Hz

Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors:

1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x DisplayPort
1 x USB 3.2 Gen 1 port
5 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller:

iTE® I/O Controller Chip

Form Factor:

Micro ATX Form Factor; 24.4cm x 21.5cm
